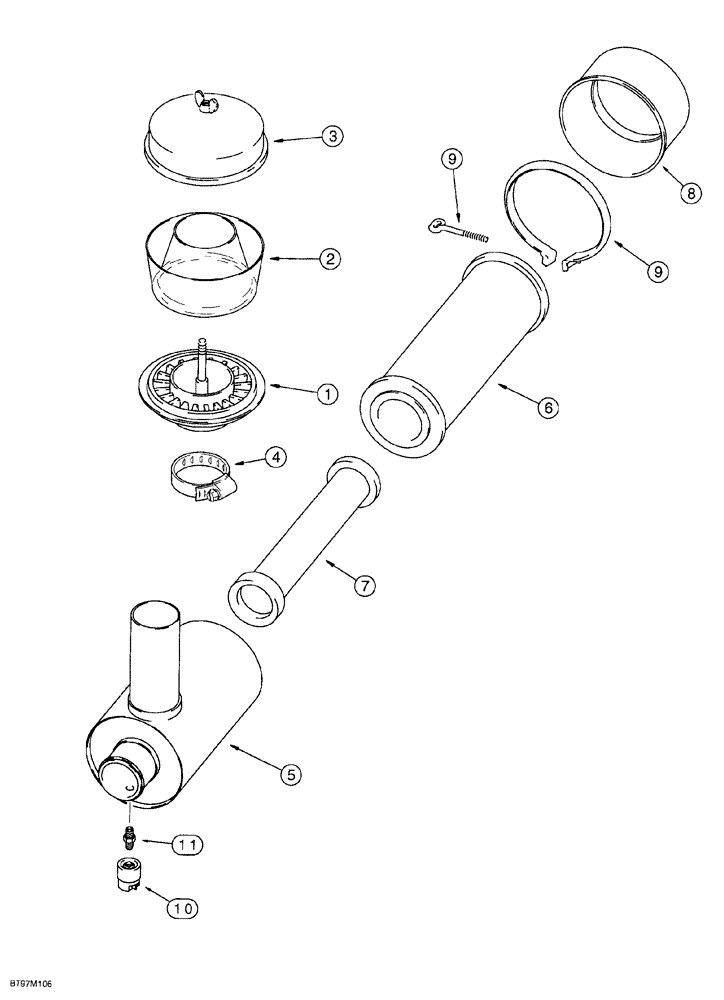

Запчасти Case 580SL (2-008) - AIR CLEANER AND PRECLEANER ASSEMBLIES (02) - ENGINE

228120A1

PRECLEANER

ASSY., air cleaner, Includes: Ref. 1-4

1шт.

1

NSS

NOT SOLD SEPARAT

BODY precleaner

1шт.

2

277377R1

FILTER BOWL

BOWL precleaner

1шт.

3

A42281

COVER

precleaner

1шт.

4

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

Adj., Precleaner assembly

1шт.

293571A1

AIR CLEANER

ASSEMBLY air, engine, Includes: Ref. 5-11

1шт.

226378A1

AIR CLEANER

ASSEMBLY, engine, Includes: Ref. 5-9

1шт.

5

NSS

NOT SOLD SEPARAT

HOUSING air cleaner

1шт.

6

222421A1

AIR FILTER

primary, air cleaner assembly

1шт.

7

222422A1

AIR FILTER

ELEMENT, FILTER secondary, air cleaner assembly

1шт.

8

247743A1

FILTER COVER

end cap, air cleaner assembly

1шт.

9

R21391

CLAMP

band, includes hardware, housing to end cover, includes bolt, air cleaner assembly

1шт.

10

292740A1

RESTRICTION SWITCH

restriction, air cleaner assembly

1шт.

11

D36264

FITTING

ADAPTER air restriction indicator, cleaner assembly

1шт.
