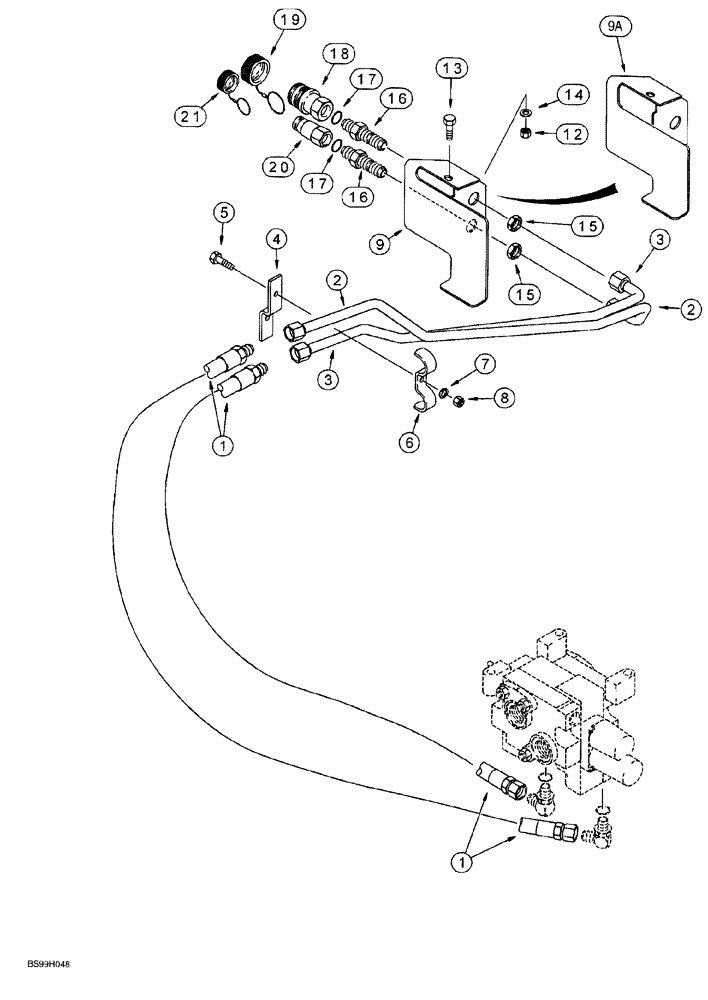

Запчасти Case 580SL (8-046) - HAND HELD AUX HYDRAULICS, AUX VALVE TO QUICK DISCONNECT COUPLINGS, MODELS WITH 40 GALLON FUEL TANK (08) - HYDRAULICS

1

302501A1

HOSE

1340 mm (52-13/16 inch) long, auxiliary valve to quick disconnect couplings, see Fig. 8-40 for P/N 218-5107 elbows at auxiliary valve

2шт.

2

301700A1

HYD TUBE,19.05 mm OD, 986, 61 mm Length

to male coupling

1шт.

3

301698A1

HYD TUBE,19.05 mm OD, 916, 117 mm Length

to female coupling

1шт.

4

301355A1

BRACKET

tube mounting

1шт.

5

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

1шт.

6

D42833

CLAMP

tube

1шт.

7

892-11010

LOCK WASHER,M10

1шт.

9

300490A1

BRACKET

hose support to quick disconnect couplings, 216 mm (8-1/2 inch) high, no longer available, order P/N 370374A1

1шт.

9a

370374A1

BRACKET

hose support to quick disconnect couplings, 211 mm (8-5/16 inch) high

1шт.

13

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

15

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

2шт.

16

126155A1

FITTING

CONNECTOR straight, bulkhead, Includes: Ref. 17

2шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

18

122179A1

COUPLING, BREAK AWAY

quick disconnect, female, component parts are not serviced separately

1шт.

19

137343A1

PLUG

CAP female coupling, aluminum, if used

1шт.

19

193261A1

PLUG

CAP female coupling, black rubber, if used

1шт.

20

122178A2

COUPLING, BREAK AWAY

quick disconnect/male component parts are not serviced separately

1шт.

21

137344A1

PLUG

CAP male coupling, aluminum, if used

1шт.

21

193262A1

PLUG

CAP male coupling, black rubber, if used

1шт.

8

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

12

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

14

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.
