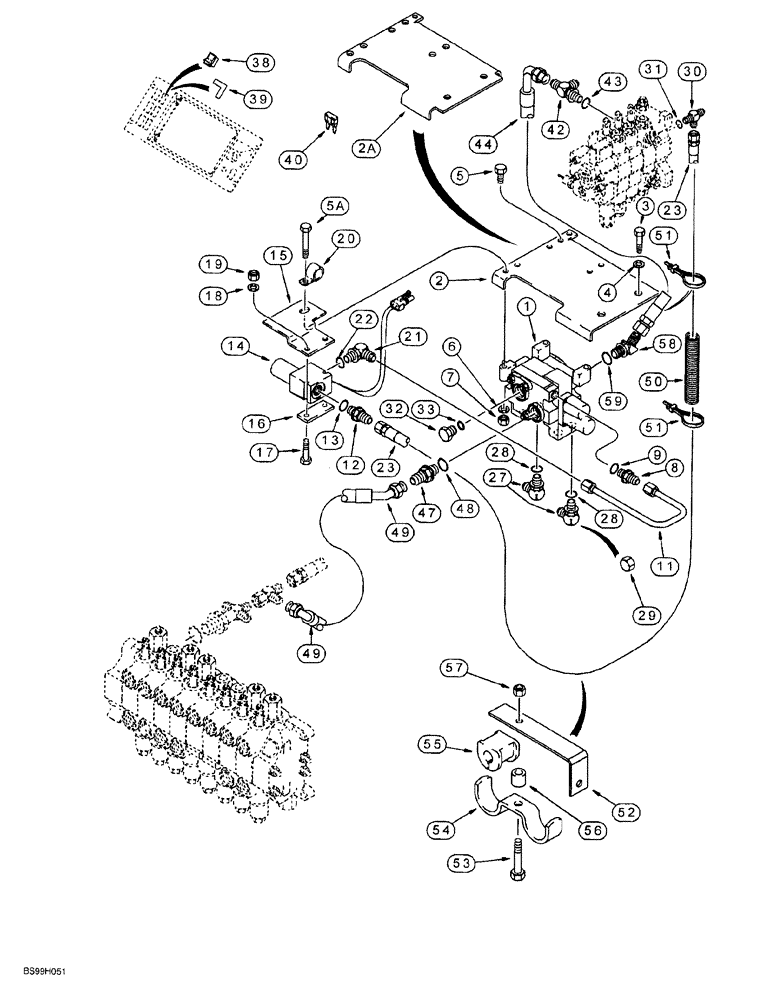

Запчасти Case 580SL (8-040) - HAND HELD AUXILIARY HYDRAULICS, MODELS WITH OR WITHOUT EXTENDABLE DIPPER (08) - HYDRAULICS

1

121741A1

VALVE, CONTROL

ASSEMBLY, auxiliary, hand held, one spool, parts list Fig. 8-116

1шт.

2

224788A2

SUPPORT

BRACKET auxiliary valve mounting to chassis, no longer available, order P/N 224788A3

1шт.

2a

224788A3

SUPPORT

BRACKET auxiliary valve, Serial Range: mounting-chassis

1шт.

3

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

4

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

5

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

3шт.

5a

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

8

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 9

1шт.

11

300983A1

TUBE

auxiliary valve to solenoid valve inlet

1шт.

12

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER straight, 9/16-18 flare x 3/4-16 inch O-ring boss, Includes: Ref. 13

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

14

137012A1

SOLENOID VALVE

ASSEMBLY, solenoid, component parts are not serviced separately, attaches to chassis options

1шт.

15

137713A1

SUPPORT

BRACKET solenoid mounting

1шт.

16

136977A1

LARGE PLATE

PLATE, LARGE solenoid valve mounting

1шт.

17

814-6060

BOLT,Hex, M6 x 1 x 60mm, Cl 8.8

2шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

19

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

20

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

P-type

1шт.

21

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Adj., Incl. 22

1шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

23

192693A1

HOSE

1490 mm (58-11/16 inch) long, solenoid valve outlet to check valve at loader control valve inlet section

1шт.

27

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 degree, 7/8-14 inch flare x adj. O-ring boss, hand held section of auxiliary valve, Incl. Ref. 28, see hand held hydraulics on Fig. 8-44 or 8-46 for attaching hoses

2шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

29

218-756

CAP,37 Degree, 7/8"-14

If used, not required when hydraulic hoses for hand held hydraulics are attached to fittings

2шт.

30

282428A1

VALVE PRESSURE RELIE

Steering check, loader valve inlet section, see Fig. 5-4 for attaching steering hose, Includes: Ref. 31

1шт.

32

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Auxiliary valve inlet port, now included with P/N 121741A1 auxiliary valve, Includes: Ref. 33

1шт.

33

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

38

191532A1

SWITCH

rocker, auxiliary hydraulics, attaches to side options harness, Ref 35 on Fig. 4-18

1шт.

39

192299A1

DECAL

auxiliary hydraulics, switch on instrument panel, see Fig. 9-156 for decal

1шт.

40

121413A1

FUSE,15A, Mini, Blue

1шт.

42

218-5576

TEE,37 Degree, 1 1/16"-12, 7/8"-14 O-Ring Run, 3/4"-16

3/4-16 fl branch x 1-1/16-12 fl x 7/8-14 inch adj. O-ring, at loader valve inlet section lower, Includes: Ref. 43

1шт.

43

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

44

243338A1

HOSE

910 mm (35-7/8 inch) long, loader valve inlet section lower port to auxiliary valve port

1шт.

47

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adapter, Straight, O-Ring boss, Incl. Ref. 48

1шт.

48

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

49

302474A1

HOSE

500 mm (19-1 1/16 inch) long, return, auxiliary valve outlet port to tee at backhoe control valve

1шт.

50

D132982

PADDLE,26.87mm ID x 400mm L

SLEEVE hose guard

2шт.

51

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

4шт.

52

136008A1

SUPPORT

BRACKET mounting

1шт.

53

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

1шт.

54

D143422

SHIN

CLAMP double tube

1шт.

55

D143797

SHOCK ABSORBER

INSULATOR, 5/8 inch

1шт.

56

R46493

SPACER,0.406" ID x 0.625" OD x 0.850" Thk

split, 22 mm (7/8 inch) long

1шт.

58

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ELBOW, 45 degree, 1-1/16-12 inch flare x adj. O-ring boss, Includes: Ref. 59

1шт.

59

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

7

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

57

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

31

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
