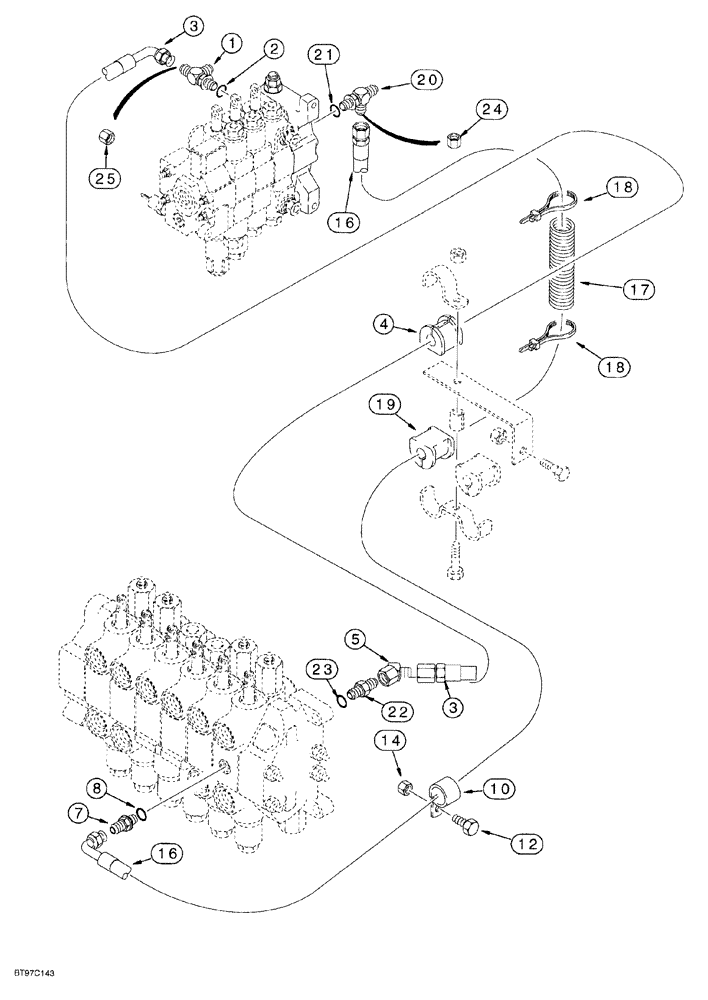

Запчасти Case 580SL (8-038) - LOADER VALVE TO BACKHOE HYD CIRCUIT, MODELS WITH OR WITOUT EXTENDABLE DIPPER, W/OUT AUXILIARY HYDS (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
218-5576
TEE,37 Degree, 1 1/16"-12, 7/8"-14 O-Ring Run, 3/4"-16
3/4-16 fl branch x 1-1/16-12 fl x 7/8-14 inch adj. O-ring, inlet section lower port, Includes: Ref. 2
1шт.
2
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
3
243339A1
HOSE
1210 mm (47-11/16 inch) long, swing supply, loader valve inlet section lower, Serial Range: port-backhoe
1шт.
4
144477A1
ISOLATOR
Rubber, Hose, See Fig. 8-6, Ref. 17-29 for mounting hardware and alternate mounting configuration
1шт.
5
218-5174
ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Female JIC
At backhoe valve swing section
1шт.
7
218-5057
HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB
Incl. Ref. 8
1шт.
10
515-25159
CLAMP,5/8", Insul, 1/2" Bolt
P-type
1шт.
12
614-10025
BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8
1шт.
16
221553A1
HOSE
1860 mm (73-1/4 inch) long, signal, backhoe control valve swing section to loader control valve inlet section
1шт.
17
D132982
PADDLE,26.87mm ID x 400mm L
SLEEVE hose guard
2шт.
18
L18337
CABLE TIE,9.95"-12.1" lg
CABLE STRAP tie, 15 inch, nylon
4шт.
19
D143797
SHOCK ABSORBER
INSULATOR, 5/8 inch, hose, see Fig. 8-7, Ref. 17-29 for power beyond hose and mounting hardware and alternate mounting configuration
1шт.
20
218-5243
TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
Loader valve inlet section and steering pilot hose, Includes: Ref. 21, see Fig. 5-4 for steering hose
1шт.
22
119895A3
FITTING
SEAT valve, swing section inlet, Includes: Ref. 23
1шт.
23
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
25
218-335
CAP,37 Degree, 1 1/16"-12
Hex, if used
1шт.
14
829-1410
NUT,M10 x 1.5, Cl 10.9
1шт.
8
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
21
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
Выбрано товаров: 20
