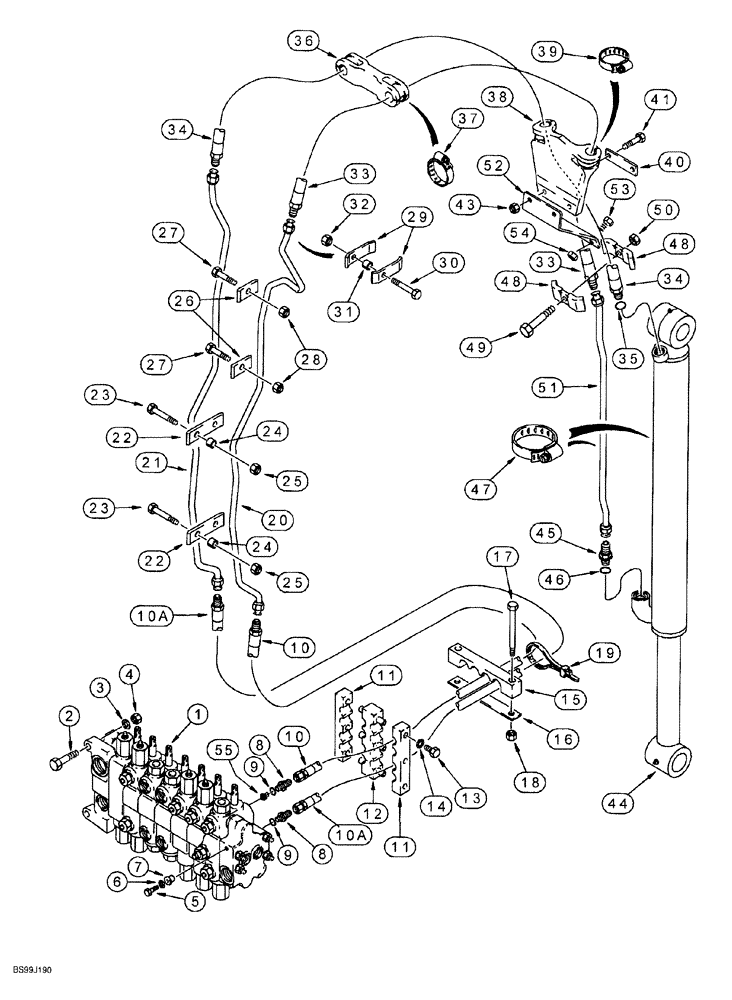

Запчасти Case 580SL (8-032) - BACKHOE BUCKET CYLINDER HYDRAULIC CIRCUIT, MODELS WITH EXTENDABLE DIPPER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY, backhoe control, for correct assembly and components, see Fig. 8-92 - 8-95A

1шт.

2

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

2шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

4

829-1412

NUT,M12, Cl 10.9

2шт.

5

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

6

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, special, 25/64 x 1-1/4 x 7/64 inch, hardened

1шт.

7

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR rubber

1шт.

8

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adapter, Straight, O-Ring boss, bucket section upper and lower ports, Incl. Ref. 9

2шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

193499A1

HOSE,15.88mm ID x 1295mm L

1295 mm (51 inch) long, includes hose guard and clamp, upper port control valve through swing, Serial Range: tower-boom

1шт.

10a

193117A1

HOSE,15.88mm ID x 1295mm L

1295 mm (51 inch) long, includes hose guard and clamp, lower port control valve through swing, Serial Range: tower-boom

1шт.

11

143439A1

CLAMP

Hose, outer

2шт.

12

176226A1

CLAMP

Hose, Center

1шт.

13

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

14

892-11008

LOCK WASHER,8mm ID

6шт.

15

143882A1

FIXING BRACKET

CLAMP hose, at swing tower

1шт.

16

132212A1

PLATE

Hose clamp, at swing tower

1шт.

17

814-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8

2шт.

18

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon, retaining

1шт.

20

187637A1

TUBE,19.05 mm OD, 1961, 224 mm Length

RH side of boom, to bucket cylinder rod end

1шт.

21

187639A1

TUBE,19.05 mm OD, 1967, 60 mm Length

LH side of boom, to bucket cylinder closed end

1шт.

22

133605A1

CLAMP

Bucket cylinder tubes to inner sides of boom

4шт.

23

814-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 8.8

8шт.

24

132930A1

SPACER

split

8шт.

25

832-10412

NUT,M12 x 1.75, Cl 8

8шт.

26

133604A1

CLAMP

CLAMP, Serial Range: tube-boom

4шт.

27

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

4шт.

28

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

29

D143426

CLAMP

bucket, Serial Range: tubes-boom

4шт.

30

814-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8

2шт.

31

D143412

SPACER,10.31mm ID x 15.81mm OD x 23.88mm L

tube clamp

2шт.

32

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

33

108335A1

HYDRAULIC HOSE

1960 mm (77-1/8") long, to bucket cylinder rod end tube

1шт.

34

108336A1

HYDRAULIC HOSE

1930 mm (76") long, to bucket cylinder closed end, Incl Ref 35

1шт.

35

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

36

103670A1

CLAMP,27mm ID

rubber

1шт.

37

214-3132

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

adj., 1-1/4 - 2-1/8 inch dia.

2шт.

38

184297A1

SUPPORT

hose

1шт.

39

214-3132

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

adj., 1-1/4 - 2-1/8 inch dia.

2шт.

40

101479A1

SUPPORT

PLATE hose support

1шт.

41

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

2шт.

43

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

44

REF

INSTRUCTION

CYLINDER ASSEMBLY, 80 (3-1/2) ID x 872 mm (34-5/16 inch) stroke, bucket, parts list Fig. 8-140

1шт.

45

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adapter, Straight, O-Ring boss, bucket cylinder rod end, Incl. Ref. 46

1шт.

46

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

47

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

Adj.

1шт.

48

D40236

CLAMP

hose

2шт.

49

814-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8

1шт.

50

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

51

256091A1

HYD TUBE,19.05 mm OD, 906, 58 mm Length

TUBE bucket cylinder rod end, replaces P/N 136436A1

1шт.

52

183736A1

SUPPORT

PLATE hose, Serial Range: mounts-dipper

1шт.

53

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

54

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

55

182222A1

FITTING

RESTRICTOR check, 4.36 mm orifice, bucket section upper port, if used

1шт.
