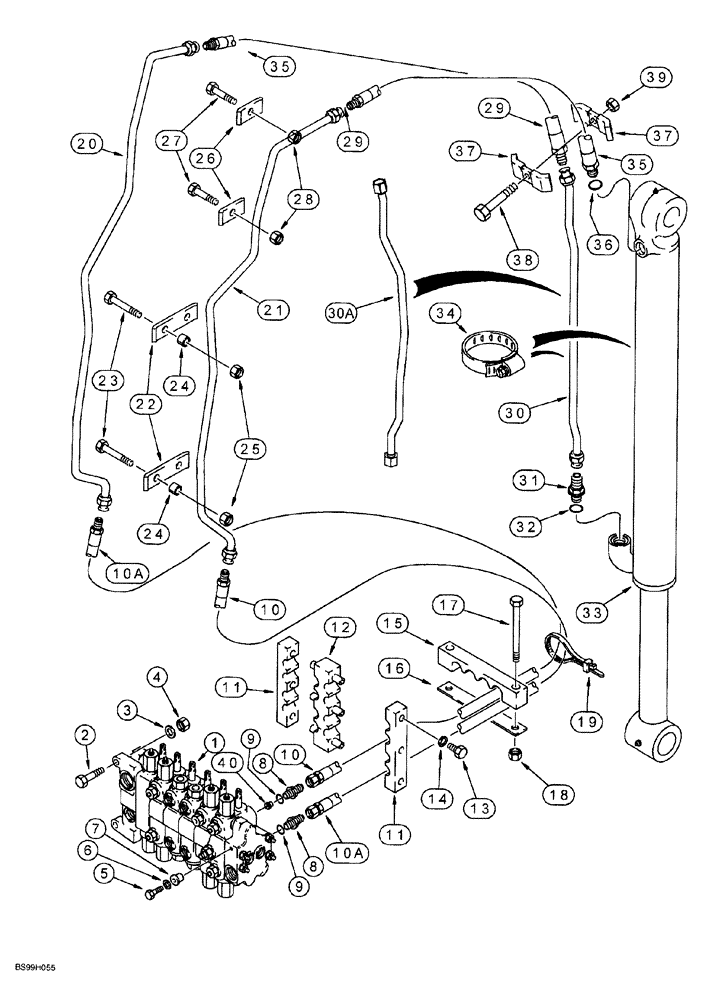

Запчасти Case 580SL (8-028) - BACKHOE BUCKET CYLINDER HYDRAULIC CIRCUIT, MODELS WITHOUT EXTENDABLE DIPPER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY, backhoe control, for correct assembly and components, see Fig. 8-88 - 8-91A

1шт.

2

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

2шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

4

829-1412

NUT,M12, Cl 10.9

2шт.

5

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

6

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, special, 25/64 x 1-1/4 x 7/64 inch, hardened

1шт.

7

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR rubber

1шт.

8

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adapter, Straight, O-Ring boss, bucket section upper and lower ports, Incl. Ref. 9

2шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

193499A1

HOSE,15.88mm ID x 1295mm L

1295 mm (51 inch) long, includes hose guard and clamp, upper port control valve through swing, Serial Range: tower-boom

1шт.

10a

193117A1

HOSE,15.88mm ID x 1295mm L

1295 mm (51 inch) long, includes hose guard and clamp, lower port control valve through swing, Serial Range: tower-boom

1шт.

11

143439A1

CLAMP

Hose, outer

2шт.

12

176226A1

CLAMP

Hose, Center

1шт.

13

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

14

892-11008

LOCK WASHER,8mm ID

6шт.

15

143882A1

FIXING BRACKET

CLAMP hose, at swing tower

1шт.

16

132212A1

PLATE

Hose clamp, at swing tower

1шт.

17

814-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8

2шт.

18

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon, retaining

1шт.

20

141806A1

TUBE,19.05 mm OD, 1624, 103 mm Length

(Tube) - to bucket cylinder rod end, LH side of boom

1шт.

21

141801A1

TUBE,19.05 mm OD, 1624, 116 mm Length

(Tube - to bucket cylinder closed end, RH side of boom

1шт.

22

133605A1

CLAMP

Bucket cylinder tubes to inner sides of boom

4шт.

23

814-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 8.8

8шт.

24

132930A1

SPACER

split

8шт.

25

832-10412

NUT,M12 x 1.75, Cl 8

8шт.

26

133604A1

CLAMP

CLAMP, Serial Range: tube-boom

4шт.

27

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

4шт.

28

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

29

183660A1

HOSE

640 mm (25-3/16 inch) long, includes hose guard and clamp, righthand bucket tube on boom to bucket cylinder rod end tube

1шт.

30

256091A1

HYD TUBE,19.05 mm OD, 906, 58 mm Length

TUBE bucket cylinder rod end, no longer available, order P/N 314772A1

1шт.

30a

314772A1

RIGID TUBE

Bucket cylinder rod end

1шт.

31

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adapter, Straight, O-Ring boss, bucket cylinder rod end, Incl. Ref. 32

1шт.

32

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

33

REF

INSTRUCTION

CYLINDER ASSEMBLY, 80 (3-1/2) ID x 872 mm (34-5/16 inch) stroke, bucket, parts list Fig. 8-140

1шт.

34

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

Adj.

1шт.

35

183658A1

HOSE

640 mm (25-3/16 inch) long, Includes: Ref. 36, includes hose guard and clamps, left hand bucket tube on boom to bucket cylinder rod end tube

1шт.

36

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

37

D40236

CLAMP

hose

2шт.

38

814-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8

1шт.

39

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

40

182222A1

FITTING

RESTRICTOR check, 4.36 mm orifice, bucket section upper port, if used

1шт.
