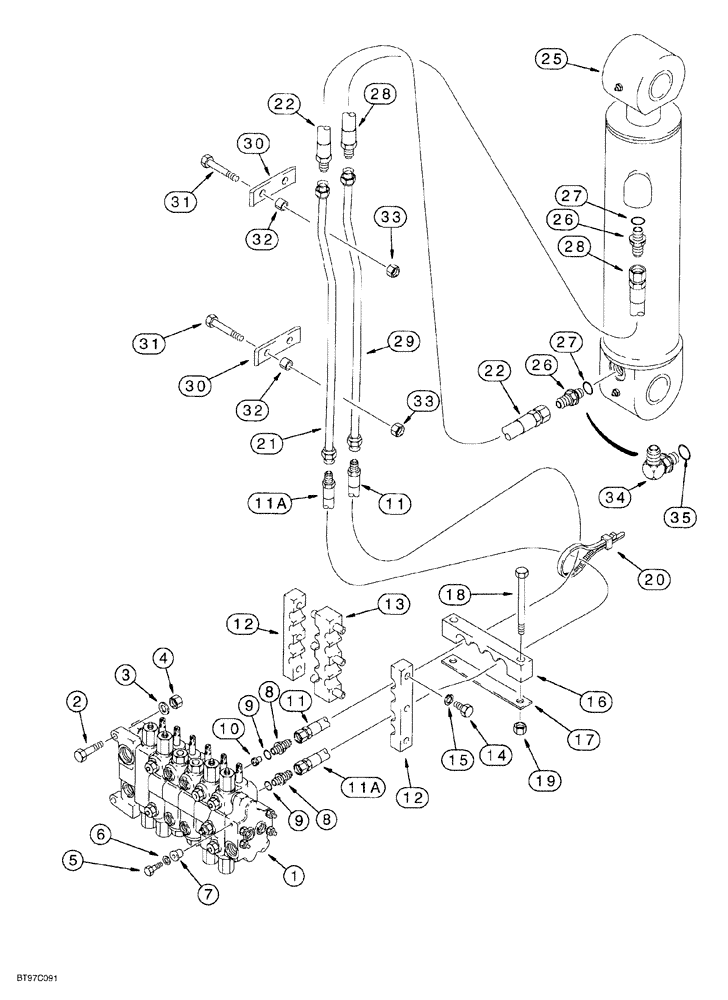

Запчасти Case 580SL (8-026) - BACKHOE DIPPER CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY, backhoe control, for correct assembly and components, see Fig. 8-88 - 8-95A

1шт.

2

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

2шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

4

829-1412

NUT,M12, Cl 10.9

2шт.

5

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

6

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, special, 25/64 x 1-1/4 x 7/64 inch, hardened

1шт.

7

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR rubber

1шт.

8

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adapter, Straight, O-Ring boss, dipper section upper and lower ports, Incl. Ref. 9

2шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

D142366

RESTRICTOR

check, dipper section upper port

1шт.

11

193499A1

HOSE,15.88mm ID x 1295mm L

1295 mm (51 inch) long, includes hose guard and clamp, upper port control valve through swing, Serial Range: tower-boom

1шт.

11a

193117A1

HOSE,15.88mm ID x 1295mm L

1295 mm (51 inch) long, includes hose guard and clamp, lower port control valve through swing, Serial Range: tower-boom

1шт.

12

143439A1

CLAMP

Hose, outer

2шт.

13

176226A1

CLAMP

Hose, Center

1шт.

14

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

15

892-11008

LOCK WASHER,8mm ID

6шт.

16

143882A1

FIXING BRACKET

CLAMP hose, at swing tower

1шт.

17

132212A1

PLATE

Hose clamp, at swing tower

1шт.

18

814-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8

2шт.

19

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

20

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon, retaining

1шт.

21

142126A1

HYD TUBE,19.05 mm OD, 726 mm Length

TUBE to dipper cylinder closed end hose

1шт.

22

193793A1

HOSE,15.88mm ID x 660mm L

660 mm (26 inch) long, includes hose guard and clamp, dipper cylinder closed end

1шт.

25

REF

INSTRUCTION

CYLINDER ASSEMBLY, 5 (127) ID x 23 inch (583 mm) stroke, dipper, parts list Fig. 8-138

1шт.

26

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adapter, Straight, O-Ring boss, Incl. Ref. 27

1шт.

27

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

28

144235A1

HOSE,15.88mm ID x 780mm L

780 mm (30-3/4 inch) long, dipper cylinder rod end

1шт.

29

142124A1

TUBE,19.05 mm OD, 784.2 mm Length

To dipper cylinder rod end hose

1шт.

30

133605A1

CLAMP

Dipper cylinder tubes to inner RH side of boom

2шт.

31

814-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 8.8

4шт.

32

132930A1

SPACER

split

4шт.

33

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

34

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 35

1шт.

35

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.
