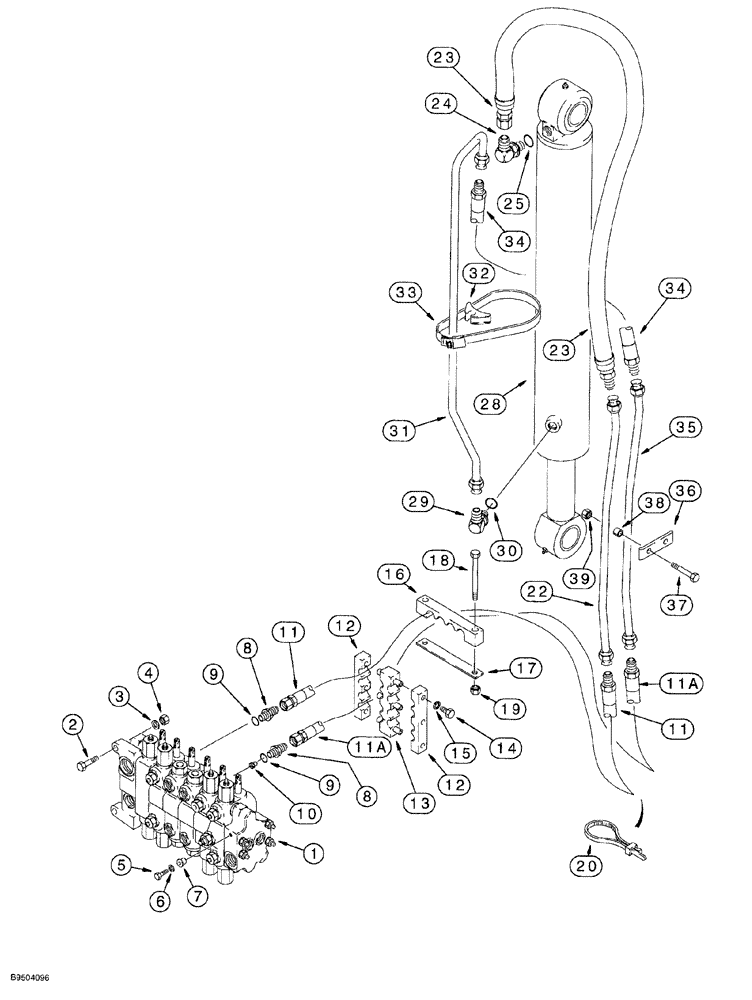

Запчасти Case 580SL (8-024) - BACKHOE BOOM CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY, backhoe control, for correct assembly and components, see Fig. 8-88 - 8-95A

1шт.

2

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

2шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

4

829-1412

NUT,M12, Cl 10.9

2шт.

5

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

6

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, special, 25/64 x 1-1/4 x 7/64 inch, hardened

1шт.

7

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR rubber

1шт.

8

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adapter, Straight, O-Ring boss, boom section upper and lower ports, Incl. Ref. 9

2шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

D77182

FITTING

RESTRICTOR check, boom section lower port, remove restrictor if equipped with boom lock valve circuit, if used

1шт.

11

193499A1

HOSE,15.88mm ID x 1295mm L

1295 mm (51 inch) long, includes hose guard and clamp, upper port control valve through swing, Serial Range: tower-boom

1шт.

11a

193117A1

HOSE,15.88mm ID x 1295mm L

1295 mm (51 inch) long, includes hose guard and clamp, lower port control valve through swing, Serial Range: tower-boom

1шт.

12

143439A1

CLAMP

Hose, outer

2шт.

13

176226A1

CLAMP

Hose, Center

1шт.

14

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

15

892-11008

LOCK WASHER,8mm ID

6шт.

16

143882A1

FIXING BRACKET

CLAMP hose, at swing tower

1шт.

17

132212A1

PLATE

Hose clamp, at swing tower

1шт.

18

814-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8

2шт.

19

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

20

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon, retaining

1шт.

22

142120A1

HYD TUBE,19.05 mm OD, 726, 35 mm Length

TUBE to boom cylinder closed end hose

1шт.

23

187845A1

HOSE,15.88mm ID x 1000mm L

1000 mm (39-3/8 inch) long, includes sleeve and banded clamps, boom cylinder closed end

1шт.

24

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Boom cylinder closed end, Incl. Ref. 25, for models with boom lock valve, See Fig. 8-58

1шт.

25

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

28

144200A1

CYLINDER ASSY.

127 (5) ID x 842 mm (33-5/32 inch) stroke, boom, parts list Fig. 8-136

1шт.

29

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ELBOW, 90 degree, 1-1/16-12 flare x 7/8-14 inch adj. O-ring boss, boom cylinder rod end, Includes: Ref. 30

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

31

142815A1

HYD TUBE,19.05 mm OD, 881, 157 mm Length

(Tube) - Boom cylinder rod end

1шт.

32

D142787

SPACER

INSULATOR rubber

1шт.

33

214-14104

HOSE CLAMP,155.45mm - 177.8mm

Adj., Tube to cylinder

1шт.

34

177634A1

HOSE,15.88mm ID x 440mm L

440 mm (17-3/8 inch) long, to boom cylinder rod end tube

1шт.

35

142122A1

HYD TUBE,19.05 mm OD, 775 mm Length

(Tube) - to boom cylinder rod end hose

1шт.

36

133605A1

CLAMP

Boom cylinder tubes to inner LH side of boom

2шт.

37

814-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 8.8

4шт.

38

132930A1

SPACER

split

4шт.

39

832-10412

NUT,M12 x 1.75, Cl 8

4шт.
