(8-022) - BACKHOE SWING CYLINDER HYDRAULIC CIRCUIT

Запчасти Case 580SL (8-022) - BACKHOE SWING CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

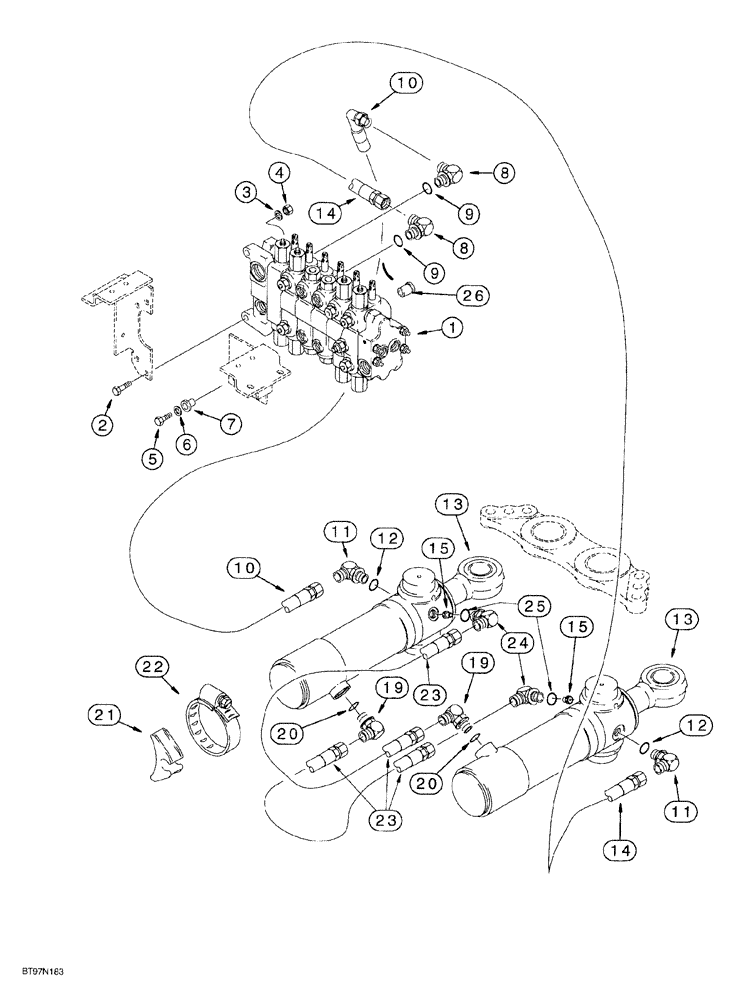

Схема запчастей Case 580SL - (8-022) - BACKHOE SWING CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS
20
14
9
19
9
5
25
10
11
8
15
22
3
19
13
10
4
6
23
20
26
2
12
8
13
23
7
21
12
11
14
24
15
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE ASSEMBLY, backhoe control, for correct assembly and components, see Fig. 8-88 - 8-95A

1шт.

2

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

2шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

4

829-1412

NUT,M12, Cl 10.9

2шт.

5

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

6

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, special, 25/64 x 1-1/4 x 7/64 inch, hardened

1шт.

7

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

rubber

1шт.

8

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

Adj. O-ring boss, swing section upper and lower ports, Incl. Ref. 9

2шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

196278A1

HOSE ASSY.,12.7mm ID x 700mm L

700 mm (27-9/16 inch) long, includes hose guard, swing section upper port to outer rod end of left hand swing cylinder

1шт.

11

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Outer rod end of swing cylinders, Includes: Ref. 12

2шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

REF

INSTRUCTION

CYLINDER ASSEMBLY, 102 (4) ID x 292 mm (11-1/2 inch) stroke, swing, parts list Fig. 8-134

2шт.

14

183243A1

HOSE,12.7mm ID x 1400mm L

1400 mm (55-1/8 inch) long, right-hand swing cylinder outer rod end to swing section lower port

1шт.

15

124690A1

RESTRICTOR

check, 1/2 inch tube

2шт.

19

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

Adj. O-ring boss, Incl. Ref. 20

2шт.

20

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

21

D142787

SPACER

INSULATOR rubber

2шт.

22

214-1488

HOSE CLAMP,130.05mm - 152.4mm

2шт.

23

255659A1

HOSE,12.7mm ID x 815mm L

815 mm (32-3/32 inch) long,1/2 inch ID, mcludeshoseguard, crossover

2шт.

24

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes: Ref. 25

2шт.

25

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

26

182222A1

FITTING

RESTRICTOR check, 4.36 mm orifice, upper and lower ports, if used

2шт.
