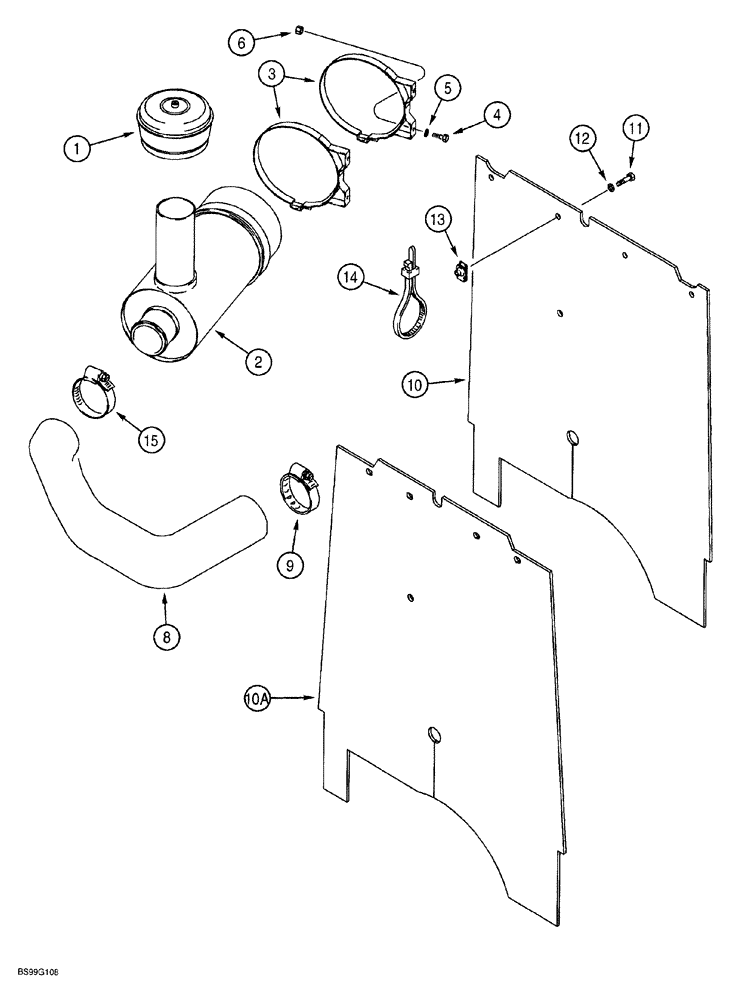

Запчасти Case 580SL (2-006) - AIR CLEANER AND AIR INTAKE PARTS (02) - ENGINE

1

228120A1

PRECLEANER

ASSEMBLY air cleaner, parts list figure 2-008

1шт.

2

293571A1

AIR CLEANER

ASSEMBLY engine, parts list figure 2-008

1шт.

3

70973

BRACKET

BAND air cleaner mounting

2шт.

4

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

6

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

8

223944A1

INTAKE AIR HOSE,76.20 mm ID, SAE J200 or SAE J200

Air Cleaner to Engine

1шт.

9

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

adj., 3-1/16 - 4 inch dia.

2шт.

10

275464A1

CURTAIN

PAD heat and noise reduction, if used

1шт.

10a

330267A1

CURTAIN

PAD heat and noise reduction, if used

1шт.

11

806-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9

4шт.

13

833-40008

SPRING NUT,M8, U

U-type, 8 mm - 1.25

4шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, barrier curtain

2шт.

15

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

Adj.

1шт.

12

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.
