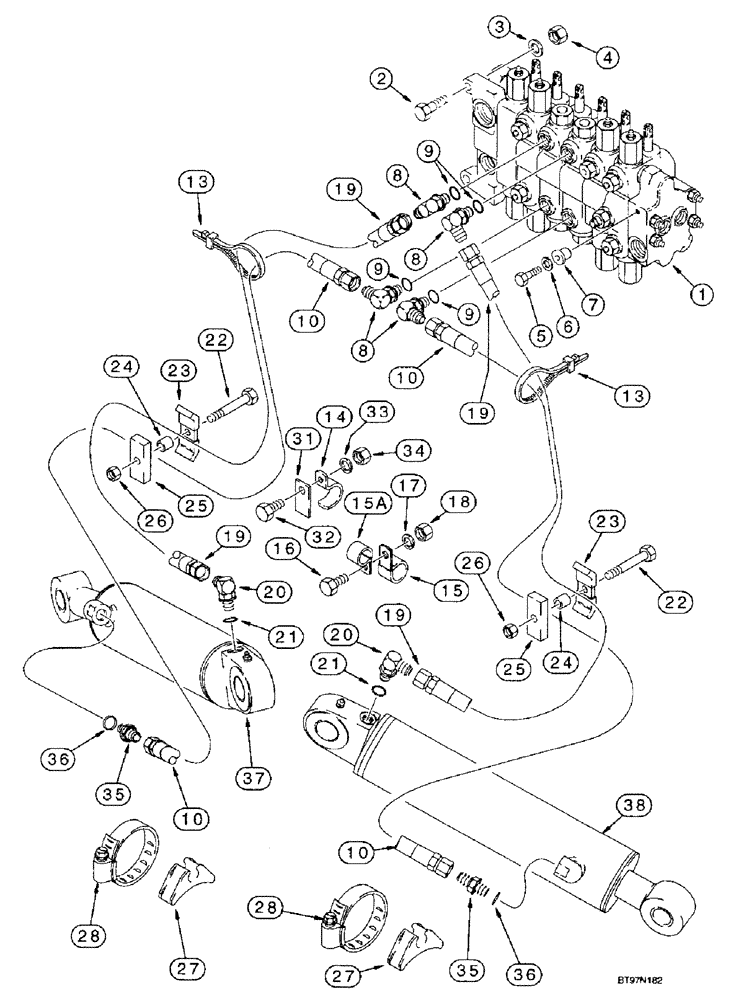

Запчасти Case 580SL (8-020) - BACKHOE STABILIZER CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY, backhoe control, for correct assembly and components, see Fig. 8-89 - 8-95B

1шт.

2

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

2шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

4

829-1412

NUT,M12, Cl 10.9

2шт.

5

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

6

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, special, 25/64 x 1-1/4 x 7/64 inch, hardened

1шт.

7

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

rubber

1шт.

8

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Stabilizer section upper and lower ports, Includes: Ref. 9

4шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

10

144251A1

HOSE

1240 mm (48-13/16 inch) long, stabilizer cylinder rod ends to stablizer section lower ports

2шт.

13

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon, retaining

2шт.

14

D143411

CLAMP,28.96mm ID, 10.31mm Bolt Hole, J Type

P-type, 3/4 inch ID

1шт.

15

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type

1шт.

15a

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type

1шт.

16

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

17

892-11008

LOCK WASHER,8mm ID

1шт.

18

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

19

143384A1

HOSE,9.53mm ID x 1025mm L

1025 mm (40 - 3/8 inch) long, stabilizer section upper ports to closed ends of stabilizer cylinders

2шт.

20

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Stabilizer cylinder closed ends, Includes: Refs. 21

2шт.

21

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

22

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

23

D40236

CLAMP

hose

2шт.

24

D146035

SPACER,10.31mm ID x 16mm OD x 15.5mm L

SPACER hose clamps

2шт.

25

D150099

SHIN

PLATE spacer

2шт.

27

D142787

SPACER

INSULATOR rubber

2шт.

28

214-3188

HOSE CLAMP,4-3/4" - 5-5/8", HD Worm

Adj.

2шт.

31

191758A1

PLATE

spacer, clamp

1шт.

32

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

33

892-11010

LOCK WASHER,M10

1шт.

35

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER straight, 3/4-16 flare x 9/16-18 inch O-ring boss, stabilizer cylinder rod end, Includes: Ref. 36

2шт.

38

199720A1R

REMAN-HYD CYLINDER

R. Stabilizer

2шт.

38

199720A1C

CORE-HYD CYLINDER

Return Number

2шт.

37

199721A1

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 553.3mm Stroke

108 (4-1/4) ID x 553 mm (21-3/4 inch) stroke, left hand stabilizer, parts list Fig. 8-132

1шт.

37

199721A1R

REMAN-HYD CYLINDER

Reman for New PN 199721A1

1шт.

37

199721A1C

CORE-HYD CYLINDER

Return Number

1шт.

26

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

38

199720A1

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 553.3mm Stroke

108 (4-1/4) ID x 553 mm (21-3/4") stroke, RH stabilizer, Parts list Fig. 8-132

1шт.

38

199720A1R

REMAN-HYD CYLINDER

Reman For New PN 199720A1

1шт.

38

199720A1C

CORE-HYD CYLINDER

Return Number

1шт.

34

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

36

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
