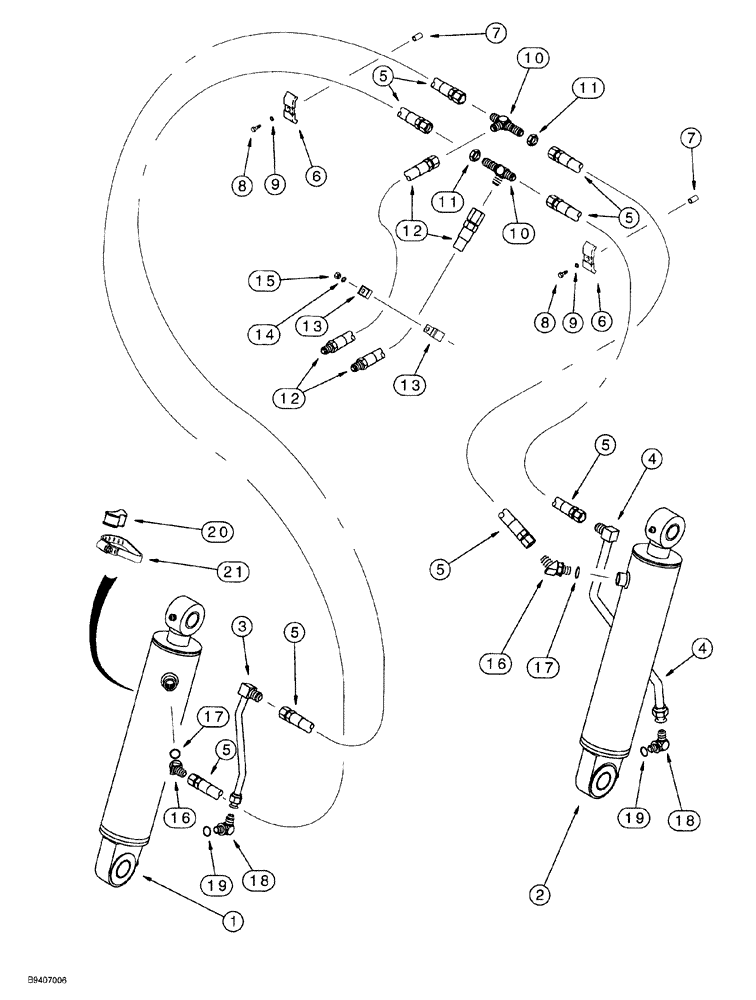

Запчасти Case 580SL (8-018) - LOADER CLAM CYLINDER HYDRAULIC CIRCUIT AT LOADER BUCKET (08) - HYDRAULICS

1

1346190C1

CYLINDER ASSY.

76 (3) ID x 231 mm (9 inch) stroke, clam, left hand, parts list Fig. 8-130

1шт.

2

1346189C1

CYLINDER ASSY.

76 (3) ID x 231 mm (9 inch) stroke, clam, right hand, parts list Fig. 8-130

1шт.

2

87454017R

REMAN-HYD CYLINDER

580SL SERIES 2 LOADER BACKHOE, 76 (3) ID x 231 mm (9 inch) stroke, clam, right hand, Reman for New PN 1346189C1

1шт.

2

87454017C

CORE-HYD CYLINDER

Return Number

1шт.

3

192352A1

HYD TUBE

(Tube), LH cylinder

1шт.

4

192345A1

HYD TUBE

(Tube), RH cylinder

1шт.

5

144242A1

HOSE,12.7mm ID x 1120mm L

1120 mm (44-3/32 inch) long, right hand and left hand cylinders

4шт.

6

D143846

CLAMP

Horizontal hose

2шт.

7

R46493

SPACER,0.406" ID x 0.625" OD x 0.850" Thk

split, 22 mm (7/8 inch) long

2шт.

8

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

2шт.

9

892-11010

LOCK WASHER,M10

2шт.

10

218-1237

TEE,7/8"-14, 37 Degree, Blkhd

TEE, 7/8-1 4 inch flare branch x flare x bulkhead flare, connecting horizontal and vertical tubes

2шт.

11

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

2шт.

12

144243A1

HOSE,12.7mm ID x 1167mm L

1167 mm (46 inch) long, lift arms

2шт.

13

515-25254

CLAMP,1", Insul, 1/2" Bolt

P-type, Vertical hoses

2шт.

15

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

16

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adj. O-ring boss, clam cylinders, rod end, Incl. Ref 17

2шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

18

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 degree, 7/8-14 inch flare x adj. O-ring boss, clam cylinders, closed end, Incl. Ref. 19

2шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

20

D38648

BLOCK

SPACER rubber, clamp

2шт.

21

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

Adj., Clam cylinder tubing

2шт.

14

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.
