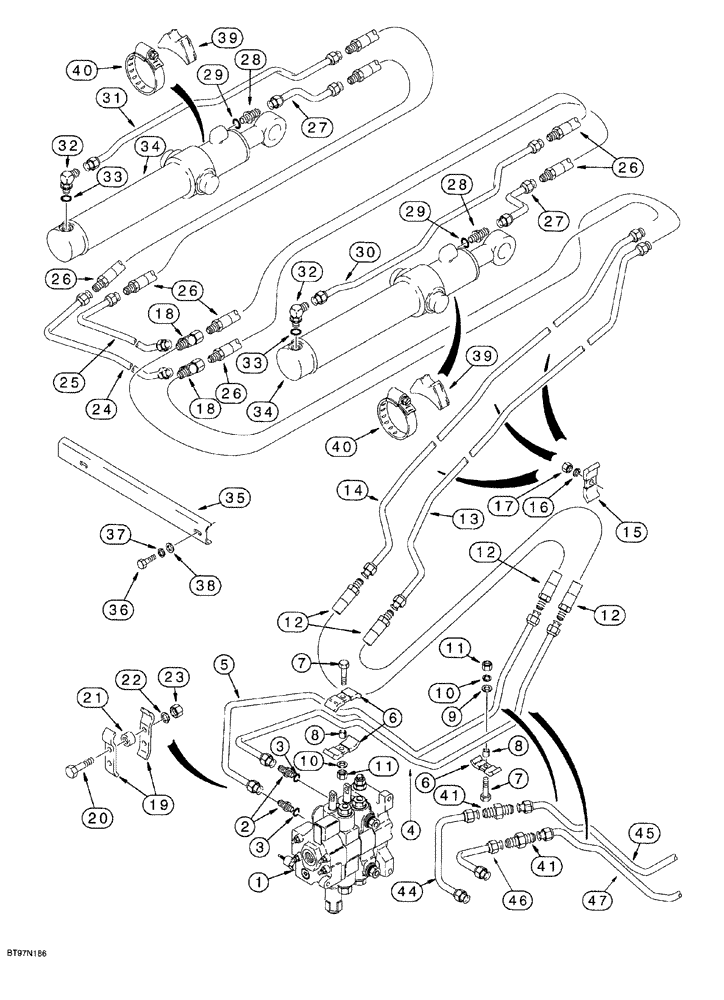

Запчасти Case 580SL (8-012) - LOADER BUCKET CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY, loader control, for correct assembly and components, see Fig.8-72 - 8-75A, for mounting see Fig. 9-2

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

232447A1

TUBE

TUBE bucket section upper port, used in production (for service order P/N's 232934A1 and 232936A1 and 218-435 connector, Ref. 41, 46 and 47 on Fig. 8-14)

1шт.

5

220169A1

TUBE

TUBE bucket section lower port, used in production, replaces P/N 192136A1 production tube (for service order 221143A1 and 221146A1 tubes and 218-435 connector, Ref. 41, 44 and 45 on Fig. 8-14)

1шт.

6

D138055

CLAMP

tube

3шт.

7

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

2шт.

8

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

tube

2шт.

9

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

10

892-11010

LOCK WASHER,M10

2шт.

12

138467A1

HOSE,12.7mm ID x 680mm L

680 mm (26-3/4 inch) long, at loader arm pivot

2шт.

13

196817A1

TUBE

TUBE lower, on right hand lift arm, from bucket section upper port to closed end of bucket cyinder

1шт.

14

196819A1

TUBE

TUBE upper, on right hand lift arm, from bucket section lower port to bucket cylinder rod end

1шт.

15

D138055

CLAMP

tube

3шт.

16

892-11010

LOCK WASHER,M10

3шт.

18

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

swivel, 7/8-14 inch flare branch x flare x adj straight thread, at upper lift frame crossover

2шт.

19

221733A1

SHIN

CLAMP tube, attaches to Ref. 5 tube above and Ref. 27 tube on Fig. 8-2

2шт.

20

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

2шт.

21

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

tube

2шт.

22

892-11010

LOCK WASHER,M10

2шт.

24

196815A1

TUBE

(Tube) Crossover, Rear, Upper lift frame tube to rod end of bucket cylinder

1шт.

25

196813A1

TUBE

Front, Lower lift frame tube to bucket cylinder closed end

1шт.

26

136226A1

HOSE

840 mm (33 inch) long, at bucket cylinders

4шт.

27

192152A1

HYD TUBE,15.88 mm OD

TUBE bucket cylinder rod end

2шт.

28

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER straight, 7/8-14 inch flare x O-ring boss, Includes: Refs. 29

2шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

30

192156A1

TUBE,15.88 mm OD

TUBE right hand bucket cylinder closed end

1шт.

31

192154A1

HYD TUBE,15.88 mm OD

TUBE left hand bucket cylinder closed end

1шт.

32

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 degree, 7/8-14 inch flare x adj. O-ring boss, Incl. Ref. 33

2шт.

34

113133A2R

REMAN-HYD CYLINDER

Bucket Cylinder - For N.A. Only

1шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

34

113133A2C

CORE-HYD CYLINDER

Bucket Cylinder - For N.A. Only

1шт.

34

113133A2

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 522.3mm Stroke

76 (3) ID x 522 mm (20-9/16 inch) stroke, loader bucket, parts list Fig.8-128

2шт.

35

250648A1

PROTECTOR

GUARD crossover tube

1шт.

36

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

2шт.

37

892-11010

LOCK WASHER,M10

2шт.

39

L79937

SADDLE

SPACER rubber, tube

2шт.

40

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

Adj.

2шт.

41

218-435

HYD CONNECTOR,7/8" - 14 Male JIC x 7/8" - 14 Male JIC

CONNECTOR straight, large hex, 7/8-14 inch flare

1-2шт.

44

221143A1

TUBE

TUBE bucket section lower port at valve

1шт.

45

221146A1

TUBE

TUBE bucket section lower port, Serial Range: tube-hose

1шт.

46

232934A1

TUBE,15.88 mm OD

TUBE bucket section upper port at valve

1шт.

47

232936A1

TUBE

TUBE bucket section upper port, Serial Range: tube-hose

1шт.

11

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

17

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

23

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

38

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.
