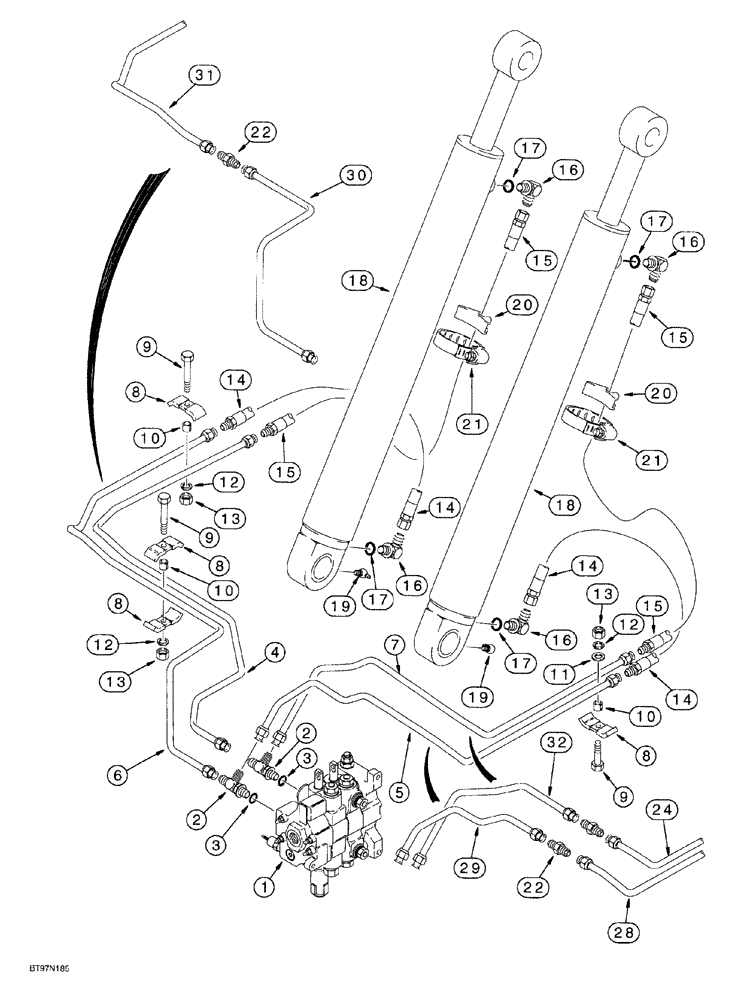

Запчасти Case 580SL (8-010) - LOADER LIFT CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY, loader control, for correct assembly and components, see Figs. 8-72 - 8-75A

1шт.

2

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

TEE, 7/8-14 inch flare branch x flare x adj. O-ring boss, Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

225330A1

TUBE

upper lift port to left hand loader lift cylinder rod end, used in production (services itself, for service order P/N 225330A1 tube, Ref. 4A), models without ride control, see Fig. 8-60 for parts used on models with ride control

1шт.

5

231984A1

TUBE

TUBE lower lift port to right hand loader lift cylinder closed end, used in production (for service order P/N 221158A1 and 232929A1 tubes and 218-435 connector, Ref. 22, 28 and 29)

1шт.

6

225332A1

TUBE

TUBE lower lift port to left hand loader lift cylinder closed end, used in production (for service order 232939A1 and 232941A1 tubes and 218-435 connector, Ref. 22 30 and 31) models w/out ride control see Fig. 8-60 for parts used on models w/ride control

1шт.

7

231982A1

TUBE

TUBE upper lift port to right-hand loader lift cylinder rod end, used in production (for service order P/N's 221162A1 and 232931A1 tubes and 218-435 connector, Ref. 22, 24 and 32)

1шт.

8

D138055

CLAMP

tube

4шт.

9

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

Replaces P/N 814-10040, 40 mm long bolt used on some models

3шт.

10

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

tube

3шт.

11

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

1шт.

12

892-11010

LOCK WASHER,M10

3шт.

14

187535A1

HOSE,12.7mm ID x 720mm L

720 mm (28-11/32 inch) long, lift cylinder closed end

2шт.

15

187536A1

HOSE,12.7mm ID x 1090mm L

1090 mm (43 inch) long, upper port of control valve to lift cylinder rod end

2шт.

16

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 degree, 7/8-14 inch flare x adj. O-ring boss, Incl. Ref. 17

4шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

18

112366A2

CYLINDER ASSY.

83 (3-1/4) ID x 766 mm (30-1/8 inch) stroke, loader lift, parts list Fig. 8-126

2шт.

18

384240A1R

REMAN-HYD CYLINDER

Reman for New PN 112366A2

2шт.

18

384240A1C

CORE-HYD CYLINDER

Return Number

2шт.

19

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2шт.

20

D142787

SPACER

INSULATOR rubber

2шт.

21

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

Adj.

2шт.

22

218-435

HYD CONNECTOR,7/8" - 14 Male JIC x 7/8" - 14 Male JIC

CONNECTOR straight, large hex, 7/8-14 inch flare

1-3шт.

24

221162A1

TUBE

TUBE right hand loader lift cylinder rod end

1шт.

28

221158A1

TUBE

TUBE right hand loader lift cylinder closed end

1шт.

29

232929A1

HYD TUBE

TUBE lower lift port to right hand loader lift cylinder

1шт.

30

232939A1

TUBE

TUBE lower lift port to left hand loader lift cylinder, models without ride control, see Fig. 8-60 for parts used on models with ride control

1шт.

31

232941A1

TUBE

TUBE left hand loader lift cylinder closed end, models without ride control, see Fig. 8-60 for parts used on models with ride control

1шт.

32

232931A1

HYD TUBE

TUBE upper lift port to right hand loader lift cylinder

1шт.

13

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.
