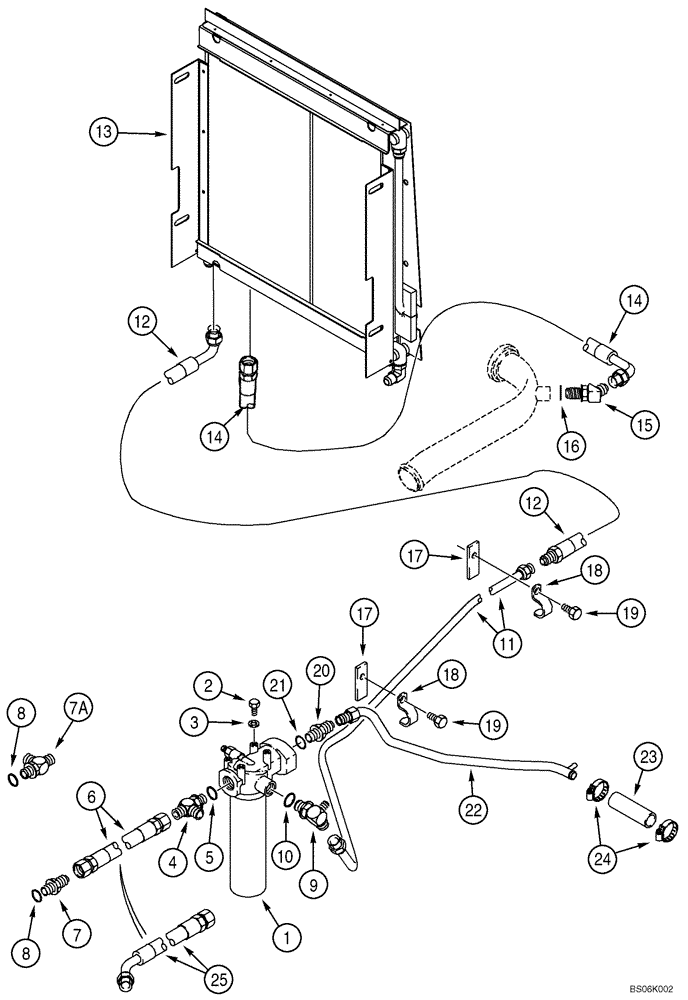

Запчасти Case 580SL (8-008) - EQUIPMENT HYDRAULIC SYSTEM, OIL COOLER LINES, RETURN LINES, & FILTER, W/ FLARED FITTINGS AT COOLER (08) - HYDRAULICS

1

122536A1

HYDRAULIC OIL FILTER

hydraulic oil, parts list Fig. 8 - 1.25

1шт.

2

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

4

218-5245

TEE,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

TEE, 1-5/16-12 inch flare branch x flare x adj. O-ring boss, loader valve to filter and filter to backhoe control valve, Includes: Ref. 5

1шт.

5

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

6

144233A1

HOSE,1.0” ID x 890mm L

890 mm (35 inch) long, return, backhoe control valve to filter, no longer available, order P/N 313648A1, Ref. 25

1шт.

7

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter straight, 1-5/16-12 inch flare x O-ring boss, backhoe control valve outlet port, models without extendable dipper

1шт.

7a

218-5245

TEE,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

TEE, 1-5/16-12 inch flare branch x flare x adj. O-ring boss, backhoe control valve outlet port, Includes: Ref. 8, models with extendable dipper, if used

1шт.

8

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

P/N's 218-5069 or 218-5245 fitting

1шт.

9

228959A1

FITTING

TEE special, Includes: Ref. 10

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

11

122176A1

TUBE

TUBE, Serial Range: filter-cooler

1шт.

12

144220A1

HOSE,12.7mm ID x 595mm L

595 mm (23-7/16 inch) long, Serial Range: filter-cooler

1шт.

13

291288A1

COOLER, OIL

hydraulic, heavy duty, see Fig. 6-20 or 6-22 for cooler mounting hardware and component parts

1шт.

14

236231A1

HOSE

300 mm (1 1 -1 3/1 6 inch) long

1шт.

15

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adj. O-ring boss, Incl. Ref 16

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

17

115633A1

SUPPORT

PLATE mounting

2шт.

18

D143430

CLAMP

tube

2шт.

19

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

20

218-5086

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

ADAPTER straight, 1-5/16-12 flare x 1-5/8 inch O-ring, Includes: Ref. 21

1шт.

21

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

22

295172A1

TUBE

TUBE, Serial Range: return-tank

1шт.

23

D38435

HOSE,1" ID x 1 1/2" OD 3.5" L

89 mm (3-1/2 inch) long, cut from P/N S118383X bulk hose, return tube to tank, see Fig. 7-8 for attaching brake line clamp

1шт.

24

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

2шт.

25

313648A1

HYDRAULIC HOSE,1.0” ID x 910mm L

910 mm (35-27/32") long, Return, Backhoe control, Serial Range: valve-filter

1шт.

S118383X

LARGE HOSE

HOSE,LARGE bulk, 25 (1) x 38 (1-1/2) x 4877 mm (192 inch) long

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.
