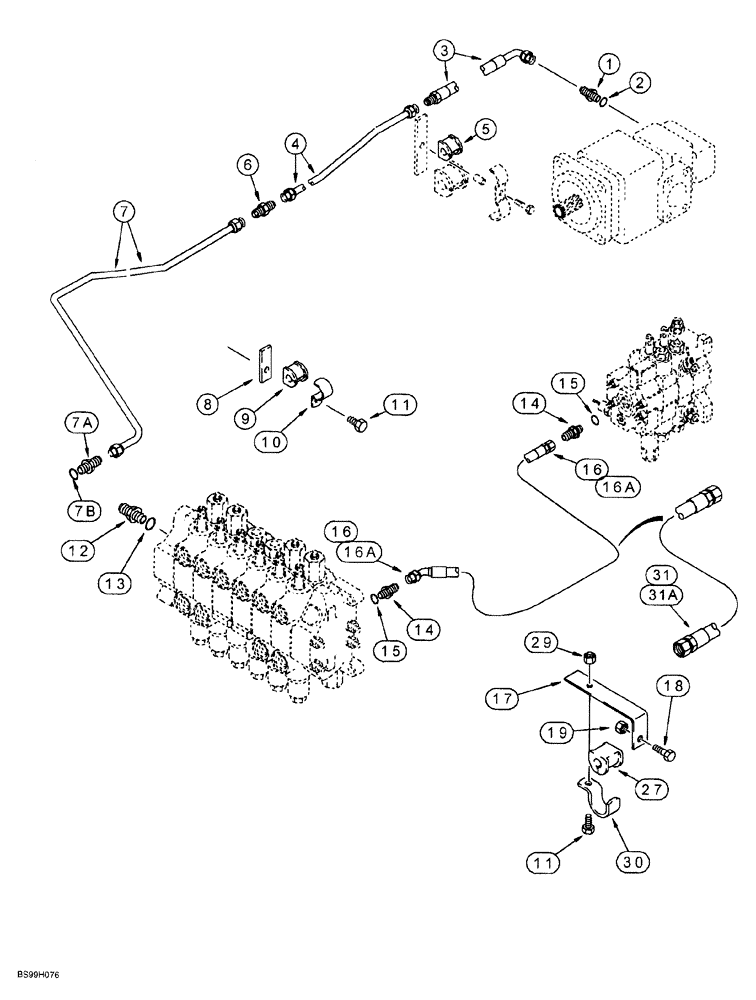

Запчасти Case 580SL (8-006) - EQUIPMENT HYDRAULIC SYSTEM, EQUIPMENT PUMP & LOADER CONTROL VALVE TO BACKHOE CONTROL VALVE (08) - HYDRAULICS

1

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, 7/8-14 flare x 1-1/16-12 inch O-ring boss, small pump section outlet port, Includes: Ref. 2

1шт.

2

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

3

144216A1

HOSE,12.7mm ID x 800mm L

800 mm (31-1/2 inch) long, small pump section outlet port

1шт.

4

122127A1

TUBE,15.88 mm OD, 843, 52 mm Length

TUBE small pump section hose to backhoe

1шт.

5

D143797

SHOCK ABSORBER

INSULATOR, 5/8 inch, small pump section tube, see Fig. 8-2 and 84 Refs. 28 - 33 for hardware

1шт.

6

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

CONNECTOR straight, 7/8-14 inch flare

1шт.

7

243790A1

TUBE,15.88 mm OD, OAL 1707.6MM

TUBE swing supply, small pump tube to swing section inlet

1шт.

7a

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 7B

1шт.

7b

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

8

115633A1

SUPPORT

PLATE mounting

1шт.

9

D143797

SHOCK ABSORBER

INSULATOR, 5/8 inch, tube mounting

1шт.

10

D143411

CLAMP,28.96mm ID, 10.31mm Bolt Hole, J Type

P-type, 3/4 inch ID, tube

1шт.

11

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

12

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 13

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

14

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 15

1шт.

15

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

16

144240A1

HOSE,3/4" ID, 1028mm L

1028 mm (40-1/2 inch) long, loader valve power beyond port to backhoe control valve inlet, models with two spool loader control valve, with hand held and/or backhoe auxiliary hydraulics

1шт.

16a

144241A1

HOSE,19.05mm ID x 977mm L

977 mm (38-15/32 inch) long, loader valve power beyond port to backhoe control valve inlet, models with two spool loader control valve, with hand held and/or backhoe auxiliary hydraulics

1шт.

17

136008A1

SUPPORT

BRACKET mounting, hose

1шт.

18

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

1шт.

19

829-1412

NUT,M12, Cl 10.9

1шт.

27

144477A1

ISOLATOR

Rubber, Power beyond hose

1шт.

30

144479A1

CLAMP

isolation, if used

1шт.

31

315284A1

HOSE ASSY.,3/4" ID, 1006mm L

1006 mm (39-5/8 inch) long, two spool loader valve power beyond port to backhoe control valve inlet, models without hand held or backhoe auxiliary hydraulics

1шт.

31a

325662A1

HOSE ASSY.

956 mm (37-21/32 inch) long, three spool loader valve power beyond port to backhoe control valve inlet, models without hand held or backhoe auxiliary hydraulics

1шт.

29

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.
