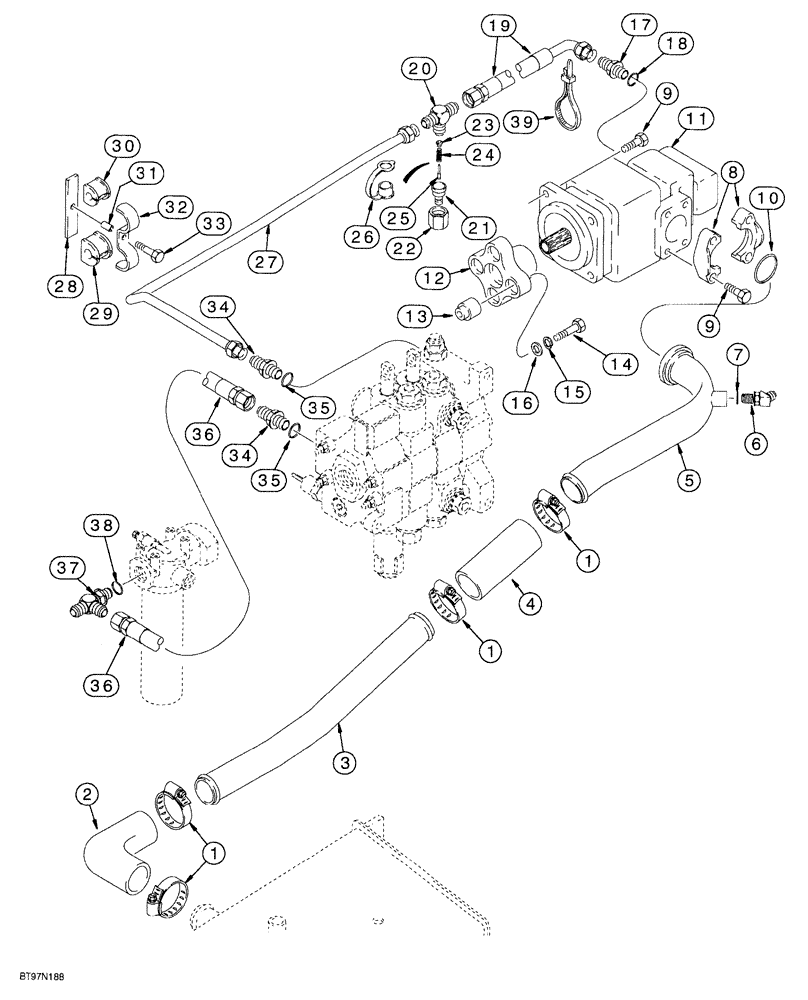

Запчасти Case 580SL (8-002) - EQUIPMENT HYD SYSTEM, RESERVOIR TO LOADER CONTROL & LOADER VALVE TO FILTER, W/SPLIT FLANGE AT PUMP (08) - HYDRAULICS

1

259044A1

CLAMP

tube

4шт.

2

282497A1

HYDRAULIC HOSE,51.00 mm ID x 102.00 mm, SAE 30R7

Suction, at hydraulic tank

1шт.

3

131586A1

TUBE

TUBE suction

1шт.

4

282496A1

HOSE,51.00 mm ID x 152.40 mm, SAE 30R6

Coupler

1шт.

5

121817A1

HYD TUBE

TUBE suction, at hydraulic equipment pump

1шт.

6

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adj. O-ring boss, to cooler return hose, Incl. Ref 7

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

8

A14141

FLANGE

split, 2 inch

2шт.

9

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

8шт.

10

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

11

257954A1

PUMP, HYDRAULIC

ASSEMBLY, equipment, with 17 teeth shaft gear set, parts list Fig. 8-70; No Longer Available, Order 87433897 Complete Pump, 87437920 Coupling, 87429360 Adapter Plate

1шт.

See Service Bulletin NLB SB 002 2004 Before Installing, N.A. Only

1шт.

11

87433897R

REMAN-HYD PUMP

580SL - SERIES-2 LOADER BACKHOE - Reman For New P/N 257954A1

1шт.

11

87433897C

CORE-HYDRAULIC PUMP

Return Number

1шт.

257948A1

FLEXIBLE COUPLING,Flex, 17T

flex, 17 teeth, with steel plug, Includes: Refs. 12 & 13

1шт.

12

NSS

NOT SOLD SEPARAT

COUPLING pump

1шт.

13

N14330

BUSHING,11.38mm ID x 25.15mm OD x 23.11mm L

COUPLING

4шт.

14

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

4шт.

15

492-11044

LOCK WASHER,7/16"

4шт.

16

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

special, hardened

4шт.

17

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER, Incl. Ref. 18

1шт.

18

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

19

144215A1

HOSE,19.05mm ID x 576mm L

576 mm (22-11/16 inch) long, large pump section port

1шт.

20

218-587

TEE,37 Degree, 1 5/16"-12 x 1 1/16"-12, Br

1-1/16-12 flare branch x 1-5/16-12 inch flare x flare, pump outlet hose to loader valve inlet tube

1шт.

D137625

QUICK MALE COUPLING,1 - 1/16" - 12UNF - 2B ID

Quick disconnect, Includes Ref. 21-25

1шт.

21

NSS

NOT SOLD SEPARAT

BODY coupling

1шт.

22

425-1120

NUT,1 1/4"-12, G5

hex, 1-1/4 inch NF

1шт.

23

NSS

NOT SOLD SEPARAT

SEAT spring

1шт.

24

NSS

NOT SOLD SEPARAT

SPRING coupling

1шт.

25

NSS

NOT SOLD SEPARAT

POPPET coupling

1шт.

26

H434163

DUST CAP

Coupler

1шт.

27

122125A1

TUBE

TUBE tee to loader control valve inlet, see Fig. 8-12 Ref. 19-23 for tube clamps near loader valve, used with Ref. 34 adapter, used without loader hydraulic tool quick coupler

1шт.

28

115507A1

SUPPORT

PLATE mounting

1шт.

29

D67297

BLOCK

INSULATOR rubber, tube

1шт.

30

REF

INSTRUCTION

INSULATOR tube, small pump section tube to backhoe valve, see Fig. 8-6, Refs. 4 and 5, for tube and insulator

1шт.

31

R46493

SPACER,0.406" ID x 0.625" OD x 0.850" Thk

split, 22 mm (7/8 inch) long

1шт.

32

D143422

SHIN

CLAMP double tube

1шт.

33

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

1шт.

34

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 35, at loader valve inlet and outlet ports, adapter at upper port is replaced bt a tee on models with loader hydraulic tool quick coupler, see Fig. 8-64, Ref. 10

2шт.

35

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

36

144227A1

HOSE

520 mm (20-15/32 inch) long, loader valve to filter, models without ride control, see Fig. 8-60 for parts used on models with ride control

1шт.

37

218-5245

TEE,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

TEE, 1-5/16-12 inch flare branch x flare x adj. O-ring boss, loader valve to filter and filter to backhoe control valve, Includes: Ref. 38

1шт.

38

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

39

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, if used

1шт.
