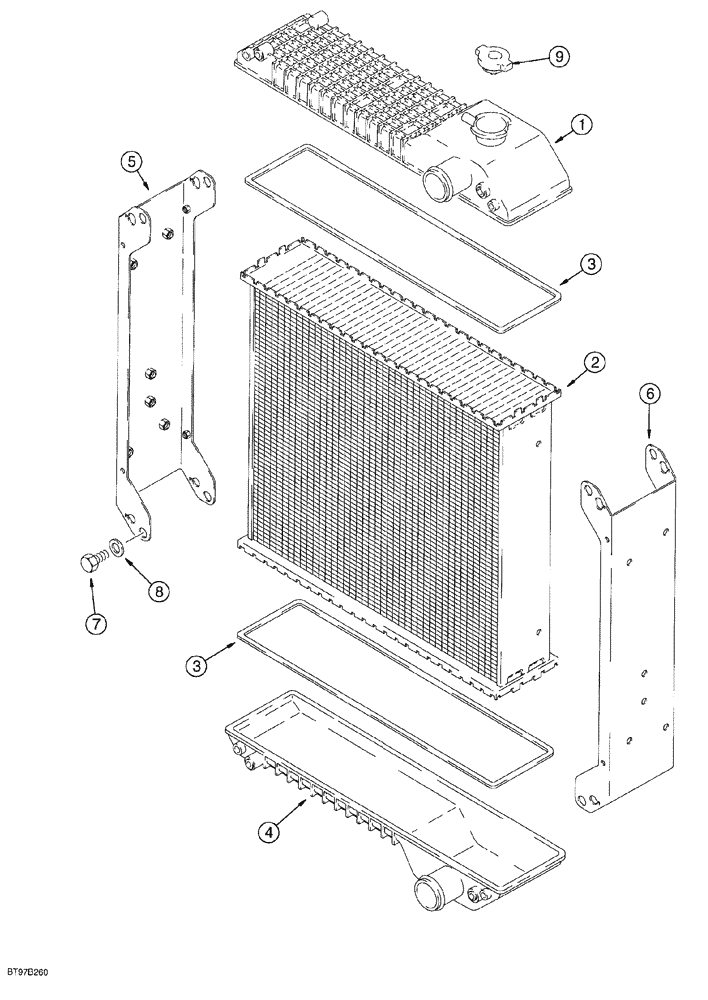

Запчасти Case 580SL (2-004) - RADIATOR ASSEMBLIES (02) - ENGINE

239739A1

RADIATOR

ASSY., engine coolant, heavy duty, 5 row, see Fig. 6-020 - 6-026 for coolers, Includes: Refs. 1-11

1шт.

1

175161A1

TANK

TANK upper

1шт.

2

257434A1

CORE

CORE radiator, 5 row

1шт.

3

175163A1

GASKET,3.3mm Thk

core, upper and lower

2шт.

Part of gasket kit, P/N 226586A1

1шт.

4

175162A1

RESERVOIR

TANK lower

1шт.

5

175164A1

SUPPORT

BRACKET left hand, radiator

1шт.

6

175165A1

SUPPORT

BRACKET right hand, radiator

1шт.

7

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

8шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

9

A170241

RADIATOR CAP

15 psi

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL foam, side channel brackets, not shown

2шт.

11

NSS

NOT SOLD SEPARAT

SEAL foam, corners, side channel brackets, not shown

4шт.

226586A1

PACKAGE,SERVICE

KIT gasket, includes (1) 175163A1 gasket and instructions

2шт.
