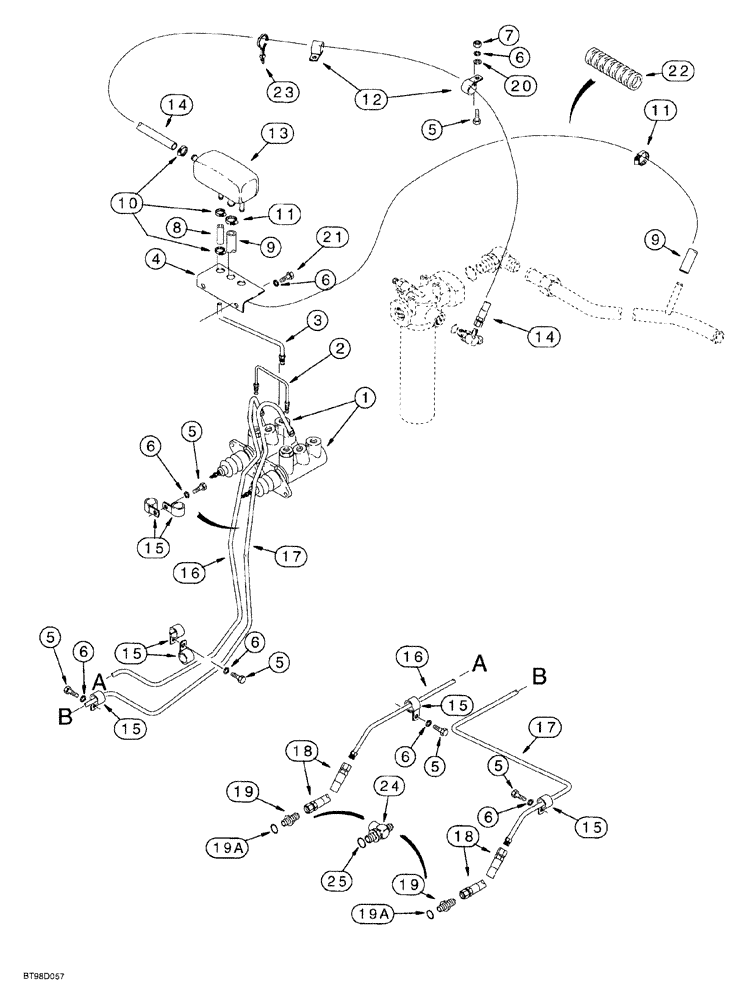

Запчасти Case 580SL (7-008) - BRAKE MASTER CYLINDER HYDRAULIC CIRCUIT (07) - BRAKES

1

182445A1

MASTER CYLINDER,104.8mm Stroke

CYLINDER,MASTER ASSEMBLY, brake, parts list Fig. 7-10

2шт.

2

D136430

TUBE

crossover

1шт.

3

142003A1

TUBE,7.94 mm OD, 224, 60 mm Length

TUBE reservoir to master cylinder

2шт.

4

121730A2

SUPPORT

BRACKET brake reservoir support, Serial Range: attaches-firewall

1шт.

5

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

Full thd

6шт.

6

892-11008

LOCK WASHER,8mm ID

8шт.

7

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

8

121729A1

HOSE,7.94 mm ID x 52.00 mm, SAE 30R2 Type 1

Reservoir to master cylinder

2шт.

9

296171A1

HOSE,12.70 mm ID x 1275.00 mm, SAE 100R6

1225 mm (48-1/4 inch) long, Reservoir outlet, Attaches to return to tank tube, Ref. 22 on fig. 8-8

1шт.

10

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

5шт.

11

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

Adjustable, Attaches to return to tank tube

2шт.

12

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

P-type

2шт.

13

1976943C1

RESERVOIR

brake master cylinder

1шт.

14

131676A1

HOSE,7.94mm ID x 1590mm L

1590 mm (62-5/8 inch) long, reservoir inlet, attaches to tee at hydraulic oil filter, Ref. 9 on Fig. 8-8

1шт.

15

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type

7шт.

16

309978A1

TUBE,7.94 mm OD, 854, 524 mm Length

brake, left hand, replaces P/N 276743A1

1шт.

17

309981A1

TUBE,7.94 mm OD, 854, 524 mm Length

brake, right hand, replaces P/N 276746A1

1шт.

18

142007A1

HOSE,6.35mm ID x 625mm L

625 mm (24-5/8 inch) long, brake tube to adapter on rear axle

2шт.

18

247570A1

HOSE

430 mm (16-15/16 inch) long, brake tube to adapter on rear axle, used in production with P/N 279168A1 axle, for service order P/N 142007A1

2шт.

18

322184A1

HOSE ASSY.

480 mm (18-15/16 inch) long, brake tube to adapter on rear axle, used in production with P/N's 308027A1 or 319064A1 axle, for service order P/N 142007A1

2шт.

19

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ADAPTER, Models without powershift transmission, Incl. Ref. 19A

2шт.

19a

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

20

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

21

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

22

D132982

PADDLE,26.87mm ID x 400mm L

SLEEVE hose guard

1шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, if used

1шт.

24

222889A1

FITTING

TEE brake pressure switch, models with Clark powershift transmission, Includes: Ref. 25

2шт.

25

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.
