(7-005A) - REAR DRIVE AXLE, DIFFERENTIAL BRAKE - P/N 308027A1 & 319064A1

Запчасти Case 580SL (7-005A) - REAR DRIVE AXLE, DIFFERENTIAL BRAKE - P/N 308027A1 & 319064A1 (07) - BRAKES

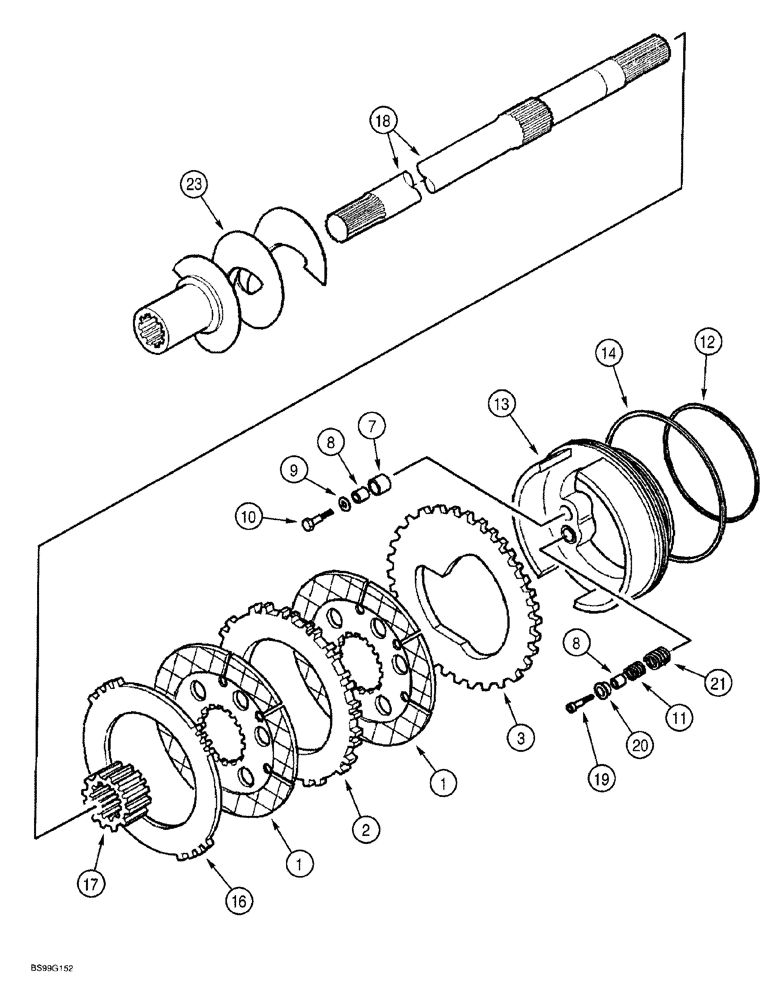

Схема запчастей Case 580SL - (7-005A) - REAR DRIVE AXLE, DIFFERENTIAL BRAKE - P/N 308027A1 & 319064A1 (07) - BRAKES
16
21
9
10
1
8
18
8
7
14
12
17
19
20
23
2
3
11
13
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

308027A1

AXLE, REAR

AXLE REAR ASSEMBLY, rear drive, models without powershift transmission, Includes: Ref. 1-25, See Figure 6-174 - 6-186, 7-5A and 7-5C

1шт.

319064A1

AXLE, REAR

AXLE REAR ASSEMBLY, rear drive, models with powershift transmission, Includes: Ref. 1-25, See Figure 6-174 - 6-186, 7-5A and 7-5C

1шт.

87350699

REMAN-REAR AXLE

REMANUFACTURED REAR AXLE - NA Only

1шт.

87350700

CORE-REAR AXLE

Return Number, REAR AXLE - NA Only

1шт.

1

237021A1

LARGE PLATE

PLATE, LARGE DISC brake

4шт.

2

237022A1

LARGE PLATE

PLATE, LARGE friction, inner

2шт.

3

308029A1

PLATE

piston

2шт.

358212A1

KIT

brake self adjuster, includes spacer and bushing

1шт.

7

190449A1

SPLIT PIN

SPACER, 18 x 20 mm, no longer sold separately, order P/N 358212A1 kit below

6шт.

Included with Brake Self Adjuster Kit, 358212A1

1шт.

8

190496A1

BUSHING

spacer, no longer sold separately, order P/N 358212A1 kit below

12шт.

Included with Brake Self Adjuster Kit, 358212A1

1шт.

9

190450A1

WASHER

flat, special

6шт.

10

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

6шт.

11

237026A1

SPRING

outer

6шт.

12

308036A1

O-RING,172mm ID x 3.5mm Thk

small

2шт.

13

359653A1

PISTON

brake

2шт.

14

190493A1

O-RING,0.139" Thk x 8.234" ID, -267, 90 Duro

large

2шт.

16

308030A1

PLATE

friction, outer

2шт.

17

308042A1

SPLINED COUPLING

SLEEVE splined

2шт.

18

295111A1

SHAFT

splined

2шт.

19

864-6035

HEX SOC SCREW,M6 x 35mm, Cl 8.8

6шт.

20

190500A1

COVER

spring

6шт.

21

237025A1

SPRING

inner

6шт.

23

295113A1

AUGER,LH, 29 Tooth Splined Hub

LH Auger Shown, oil, left hand, includes weld on clamp and bolt, also includes welded on drive coupling, Includes: Ref. 24

1шт.

23

295112A1

AUGER,RH, 29 Tooth Splined Hub

LH Auger Shown, oil, right hand, includes weld on clamp and bolt, also includes welded on drive coupling, Includes: Ref. 24

1шт.

24

863-6020

HEX SOC SCREW,M6 x 20mm, Cl 12.9

Not shown, right hand or left hand auger

2шт.
