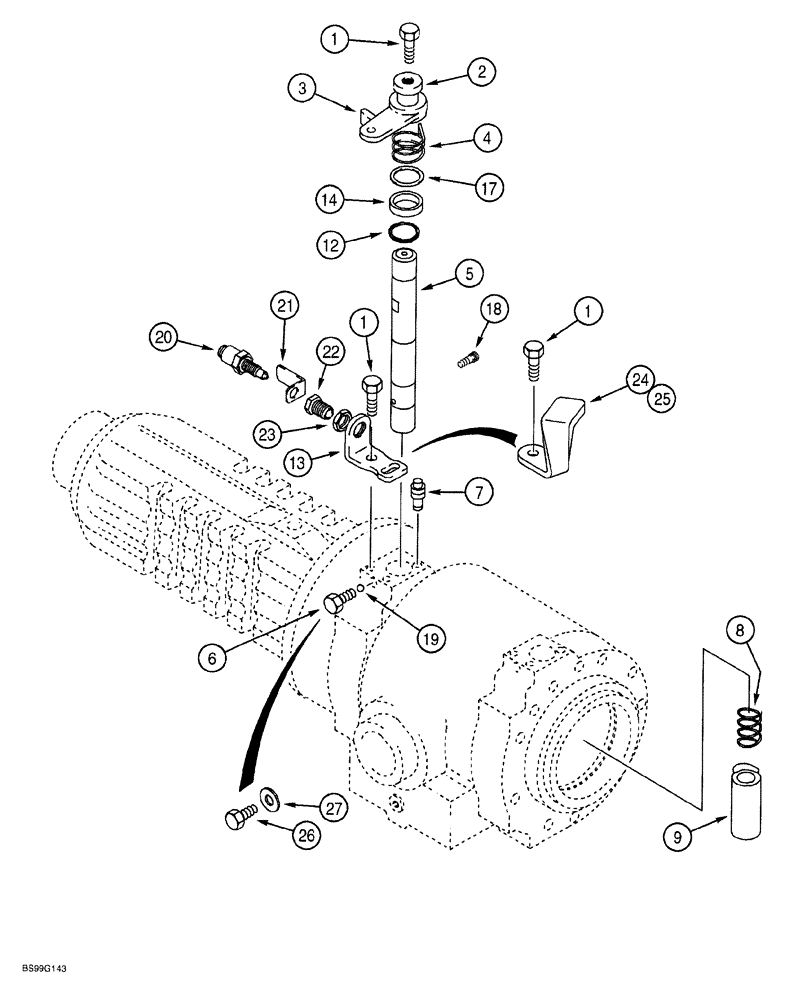

Запчасти Case 580SL (7-004) - REAR DRIVE AXLE, PARKING BRAKE - P/N 279169A1 & 279168A1 (07) - BRAKES

279169A1

AXLE, REAR

AXLE REAR ASSEMBLY, rear drive, models w/o powershift transmission, Includes: Ref. 1-27,See Fig. 6-160-6-172, 7-2 & 7-4, no longer available, order 308027A1 on Fig. 6-174, 213-126 clevis, (2) 322184A1 hose & 326348A1 yoke, See fig 7-8 & 7-12 for hose, clevis & yoke

1шт.

279168A1

AXLE, REAR

AXLE REAR ASSEMBLY, rear drive, models w/powershift transmission, Includes: Ref. 1-27, See Fig. 6-160-6-172, 7-2 & 7-4, no longer available, order 319064A1 on Fig. 6-174, 213-126 clevis, (2) 322184A1 hose & 326348A1 yoke, See Fig. 7-8 & 7-12 for hose, clevis & yoke

1шт.

1

190451A1

LOCK BOLT,M8 x 20mm

BOLT special, 8 x 20 mm

6шт.

Included with Parking Brake Kit, 279645A1

1шт.

2

190463A1

WASHER

flat

2шт.

3

280436A1

LEVER

brake, 100 mm

2шт.

4

190476A2

SPRING

left hand, not shown

1шт.

4

190477A2

SPRING

right hand, shown

1шт.

5

256483A1

SHAFT

brake control

2шт.

6

283462A1

BOLT

BOLT special, 8 - 1.0 x 23.5 mm

2шт.

7

E135810

VENTING SCREW

PLUG brake bleeder, brake housing

2шт.

8

190473A1

SPRING

cam

2шт.

9

190456A1

CAM

brake

2шт.

12

321183A1

O-RING

special, Replaces: 190448A1

2шт.

Included with Parking Brake Kit, 279645A1

1шт.

13

256478A1

SUPPORT

BRACKET stop

2шт.

Included with Parking Brake Kit, 279645A1

1шт.

14

256481A1

SPACER

BUSHING shaft

2шт.

Included with Parking Brake Kit, 279645A1

1шт.

17

256482A1

SHIM

shaft

2шт.

Included with Parking Brake Kit, 279645A1

1шт.

18

256485A1

BOLT

BOLT special, 6 x 16 mm

2шт.

19

283466A1

BALL

6.5 mm

2шт.

281952A1

KIT

switch, park brake, Includes: Refs. 20-23

2шт.

Included with Parking Brake Kit, 279645A1

1шт.

20

280450A1

PARK BRAKE SWITCH

brake

1шт.

21

280452A1

BRACKET

switch guard, lever

1шт.

22

280457A1

LEVER

SLEEVE switch

1шт.

23

281960A1

NUT

special, 16 mm - 1.5

1шт.

279645A1

PACKAGE, REPAIR

KIT parking brake, external adjustment parts, Includes: Ref. 24-27, includes instructions, also includes Ref. 1 , 12 - 17 and 281952A1 switch kit, Ref. 24-27, if used

1шт.

24

259254A1

RETAINER

left hand

1шт.

Included with Parking Brake Kit, 279645A1

1шт.

25

280443A1

RETAINER

right hand

1шт.

Included with Parking Brake Kit, 279645A1

1шт.

26

514-634

BOLT,Hex, M8 x 1 x 16mm, Cl 8.8, Full Thd

BOLT hex, full thread, 8 - 1.0 x 16 mm

2шт.

Included with Parking Brake Kit, 279645A1

1шт.

27

181104A1

COPPER WASHER

sealing

2шт.

Included with Parking Brake Kit, 279645A1

1шт.
