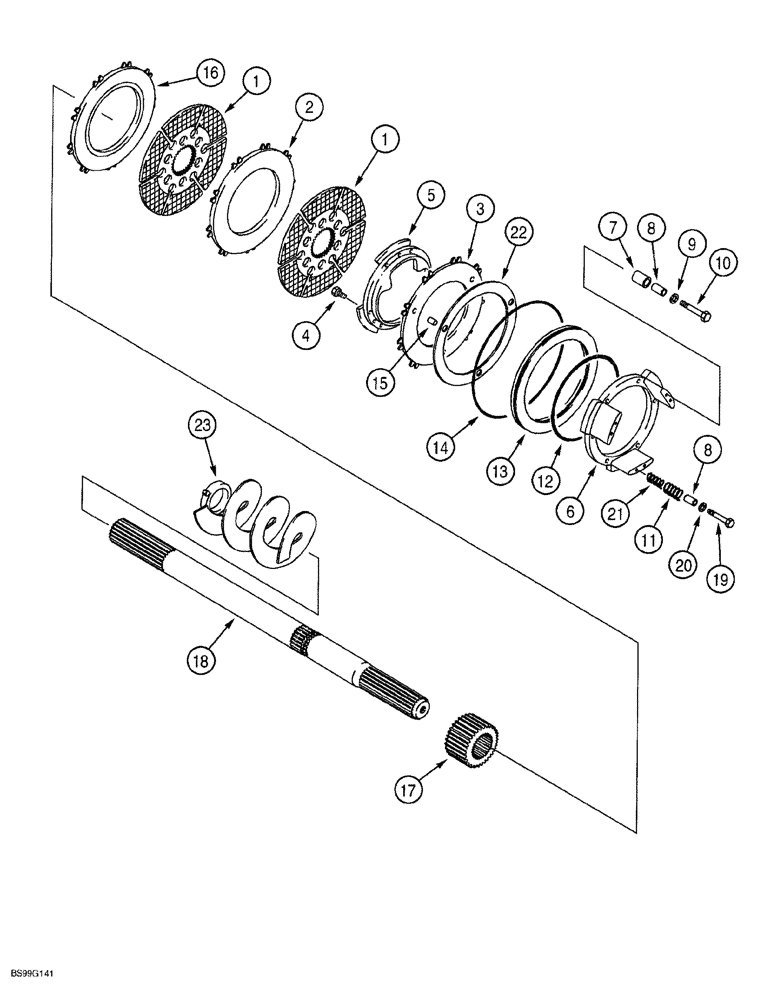

Запчасти Case 580SL (7-002) - REAR DRIVE AXLE, DIFFERENTIAL BRAKE - P/N 279169A1 & 279168A1 (07) - BRAKES

279169A1

AXLE, REAR

AXLE REAR ASSEMBLY, rear drive, models w/o powershift transmission, Includes: Ref. 1-25,See Fig. 6-160-6-172, 7-2 & 7-4, no longer available, order 308027A1 on Fig. 6-174, 213-126 clevis, (2) 322184A1 hose & 326348A1 yoke, See Fig 7-8 & 7-12 for hose, clevis & yoke

1шт.

279168A1

AXLE, REAR

AXLE REAR ASSEMBLY, rear drive, models w/powershift transmission, Includes: Ref. 1-25, See Fig. 6-160-6-172, 7-2 & 7-4, no longer available, order 319064A1 on Fig. 6-174, 213-126 clevis, (2) 322184A1 hose & 326348A1 yoke, See Fig 7-8 & 7-12 for hose, clevis & yoke

1шт.

1

237021A1

LARGE PLATE

PLATE, LARGE DISC brake

4шт.

Included with Plates and Brake Disc Kit, P/N 243893A1

1шт.

2

237022A1

LARGE PLATE

PLATE, LARGE friction, inner

2шт.

Included with Plates and Brake Disc Kit, P/N 243893A1

1шт.

3

237023A1

LARGE PLATE

PLATE, LARGE piston

2шт.

Included with Plates and Brake Disc Kit, P/N 243893A1

1шт.

4

864-8016

HEX SOC SCREW,M8 x 16mm, Cl 8.8

18шт.

5

190461A1

FLANGE

inner

2шт.

6

190460A1

FLANGE

outer

2шт.

7

190449A1

SPLIT PIN

SPACER split, 18 x 20 mm, no longer sold separately, order P/N 248071A1 kit below

6шт.

Included with Self Adjuster Brake Kit, 248071A1

1шт.

8

295032A1

BUSHING

spacer, no longer sold separately, order P/N 248071A1 kit below

12шт.

Included with Self Adjuster Brake Kit, 248071A1

1шт.

9

190450A1

WASHER

flat, special

6шт.

10

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

6шт.

11

237026A1

SPRING

outer

6шт.

Included with Plates and Brake Disc Kit, P/N 243893A1

1шт.

12

190492A1

O-RING,6.984" ID x 7.262" OD x 0.139"

small

2шт.

13

190502A1

PISTON

brake

2шт.

14

190493A1

O-RING,0.139" Thk x 8.234" ID, -267, 90 Duro

large

2шт.

15

190447A1

SPLIT PIN

split, 6 x 14 mm

6шт.

16

237024A1

LARGE PLATE

PLATE, LARGE friction, outer

2шт.

Included with Plates and Brake Disc Kit, P/N 243893A1

1шт.

17

190453A1

SLEEVE

splined

2шт.

18

295111A1

SHAFT

splined

2шт.

19

864-6035

HEX SOC SCREW,M6 x 35mm, Cl 8.8

BOLT hex socket, 6 - 1.0 x 35 mm

6шт.

20

190500A1

COVER

spring

6шт.

21

237025A1

SPRING

inner

6шт.

Included with Plates and Brake Disc Kit, P/N 243893A1

1шт.

22

190504A1

SHIM

GASKET piston

2шт.

23

295113A1

AUGER,LH, 29 Tooth Splined Hub

LH Auger Shown, oil, left hand, includes weld on clamp and bolt, also includes welded on drive coupling, Includes: Ref. 24

1шт.

23

295112A1

AUGER,RH, 29 Tooth Splined Hub

LH Auger Shown, oil, right hand, includes weld on clamp and bolt, also includes welded on drive coupling, Includes: Ref. 24

1шт.

24

863-6020

HEX SOC SCREW,M6 x 20mm, Cl 12.9

Not shown, right hand or left hand auger

2шт.

248071A1

SERVICE KIT

KIT brake self adjuster, includes spacer and bushing, plus an instruction sheet

1шт.

243893A1

BRAKE PACKAGE

KIT, disc and plates, service replacement, Includes Refs. 1, 2, 3, 11, 16, and 21

1шт.
