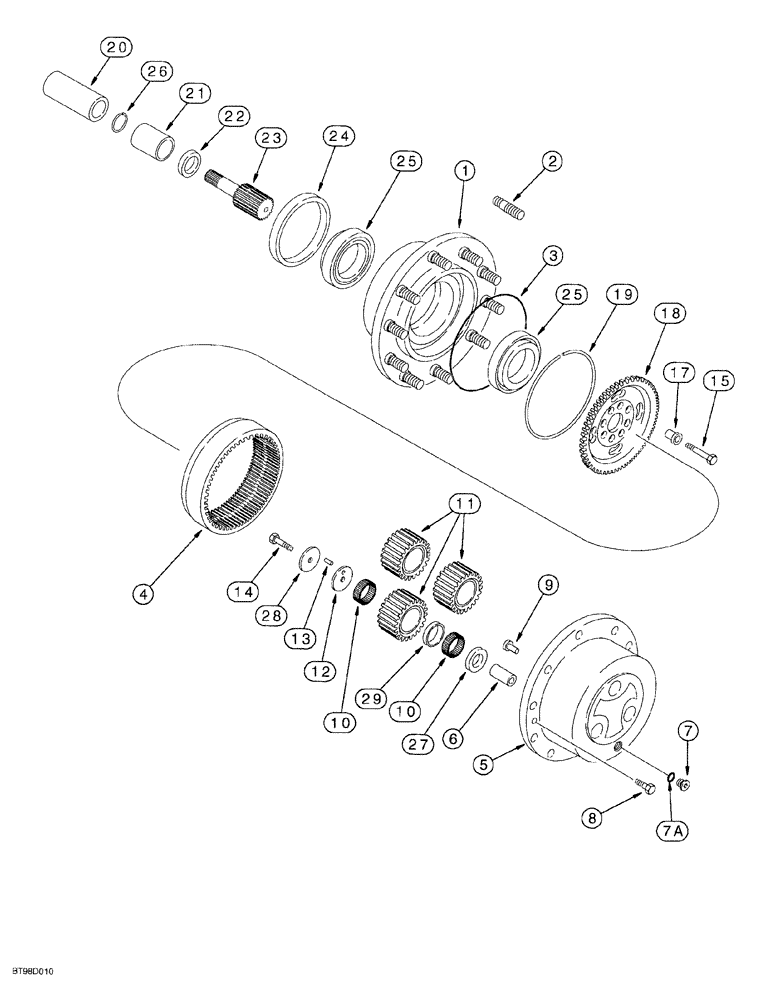

Запчасти Case 580SL (6-186) - REAR DRIVE AXLE, PLANETARY (06) - POWER TRAIN

308027A1

AXLE, REAR

AXLE REAR ASSEMBLY, rear drive, models without powershift transmission, Includes: Ref. 1-29, see Fig. 6-174 - 6-186, 7-5A and 7-5C

1шт.

319064A1

AXLE, REAR

AXLE REAR ASSEMBLY, rear drive, models with powershift transmission, Includes: Ref. 1-29, see Fig. 6-174 - 6-186, 7-5A and 7-5C

1шт.

87350699

REMAN-REAR AXLE

REMANUFACTURED REAR AXLE - NA Only

1шт.

87350700

CORE-REAR AXLE

Return Number, REAR AXLE - NA Only

1шт.

1

367233A1

HUB ASSY.

wheel attaching, Includes: Ref. 2

2шт.

2

D142986

STUD,88mm L

special, without flanged collar, if used

10шт.

2

196090A1

STUD,M22 x 88mm

special, with collar, for recessed bolt holes, if used

10шт.

3

P2930467

SEAL,0.139" Thk x 9.984" ID, -274, Cl 5, 75 Duro

O-RING

2шт.

4

175976A1

PINION

GEAR ring, planetary

2шт.

5

292891A1

SUPPORT

CARRIER ASSEMBLY, planetary, use with liquid gasket Silastic 732, carrier to hub, Includes: Ref. 6

2шт.

6

NSS

NOT SOLD SEPARAT

SHAFT pinion gear

6шт.

7

100557A1

PLUG, DRAIN,M30 x 2

Includes: Ref. 7A

2шт.

7a

238-6121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

1шт.

8

K395082

SCREW,M8 x 20mm

special, planetary cover plate

4шт.

9

K395093

HEADED PIN,12mm OD x 15mm L

locking, planetary carrier

2шт.

10

292893A1

NEEDLE BEARING

BEARING, (package of 10 needles) (372 needles required) planetary gear

38шт.

11

292894A1

GEAR

pinion, planetary

6шт.

12

292898A1

WASHER

thrust, pinion gear

6шт.

13

247550A1

NEEDLE BEARING,5 mm OD x 10 mm

BEARING, (package of 10 used as pms) (6 required)

1шт.

14

175982A1

LOCK BOLT,Hex, M10 x 1.25 x 50mm, Cl 10.9

BOLT hex, self locking, special, 10 - 1.25 x 50 mm, class 10.9

6шт.

15

K395131

BOLT,Hex, M14 x 1.5 x 65mm, Cl 10.9

Special, Self locking

16шт.

17

107071A1

BUSHING

20 mm OD

16шт.

18

310492A1

PINION CARRIER

GEAR CARRIER HUB ring, with two extraction holes

2шт.

19

175984A1

RING, LOCKING

RING, LOCK

2шт.

20

NSS

NOT SOLD SEPARAT

COUPLING drive, welded to and included with the differential brake oil auger

2шт.

21

196065A1

BUSHING

axle housing, drive

2шт.

22

196066A1

OIL SEAL

axle housing, 38 ID x 50 O.D.

2шт.

23

292896A1

SHAFT

drive

2шт.

24

1349265C1

OIL SEAL,149mm ID x 176mm OD x 16mm Thk

oil, cassette, 149 x 176 x 16

2шт.

25

K395101

TAPERED BEARING,109.5mm ID x 126mm x 21.4mm L

ball, hub

4шт.

26

800-2136

SNAP RING,M36, Ext

internal retaining, No. 36

2шт.

27

292899A1

WASHER

thrust, pinion gear

6шт.

28

292900A1

THRUST WASHER

thrust, pinion gear

6шт.

29

292901A1

WASHER

needle bearing

6шт.
