(6-184) - REAR DRIVE AXLE, DIFFERENTIAL LOCK, MODELS WITH POWERSHIFT TRANSMISSION, COUNTER CLOCKWISE INPUT

Запчасти Case 580SL (6-184) - REAR DRIVE AXLE, DIFFERENTIAL LOCK, MODELS WITH POWERSHIFT TRANSMISSION, COUNTER CLOCKWISE INPUT (06) - POWER TRAIN

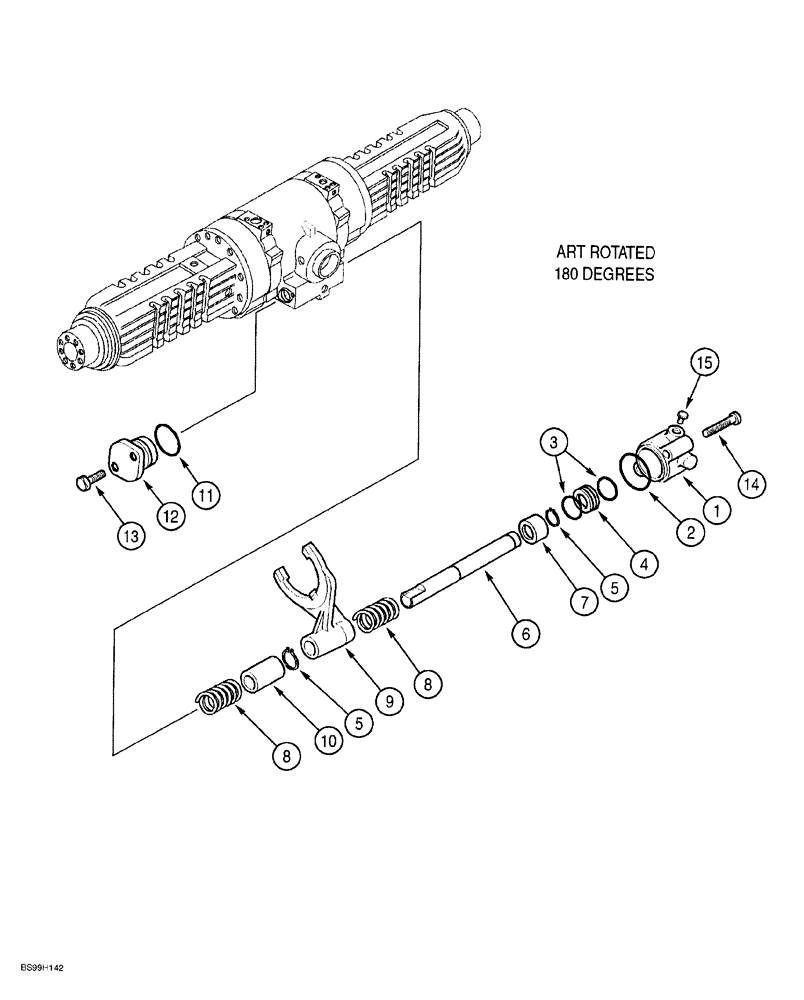

Схема запчастей Case 580SL - (6-184) - REAR DRIVE AXLE, DIFFERENTIAL LOCK, MODELS WITH POWERSHIFT TRANSMISSION, COUNTER CLOCKWISE INPUT (06) - POWER TRAIN
6
8
15
4
5
2
3
14
7
1
12
8
9
13
10
5
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

319064A1

AXLE, REAR

AXLE REAR ASSEMBLY, rear drive, models with powershift transmission, parts list Figs. 6-174 - 6-186, 7-5A and 7-5C, Includes: Refs. 1-15

1шт.

87350699

REMAN-REAR AXLE

REMANUFACTURED REAR AXLE - NA Only

1шт.

87350700

CORE-REAR AXLE

Return Number, REAR AXLE - NA Only

1шт.

1

305153A1

CYLINDER

differential lock

1шт.

2

305152A1

O-RING

cylinder

1шт.

3

292210A1

SEAL

O-RING, external, piston

2шт.

4

292212A1

PISTON

differential lock

1шт.

5

800-5120

SNAP RING,M20, Ext

external heavy retaining, No. 20

2шт.

6

292214A1

SHAFT

rail, shifter fork

1шт.

7

292902A1

RING

BUSHING shaft

1шт.

8

175966A1

SPRING

shaft

2шт.

9

292897A1

FORK

shift

1шт.

10

175965A1

BUSHING

rail

1шт.

11

128376A1

O-RING

cover

1шт.

12

175968A1

SUPPORT

COVER housing

1шт.

13

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

Full thd

2шт.

14

814-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

2шт.

15

NSS

NOT SOLD SEPARAT

PLUG cylinder

1шт.
