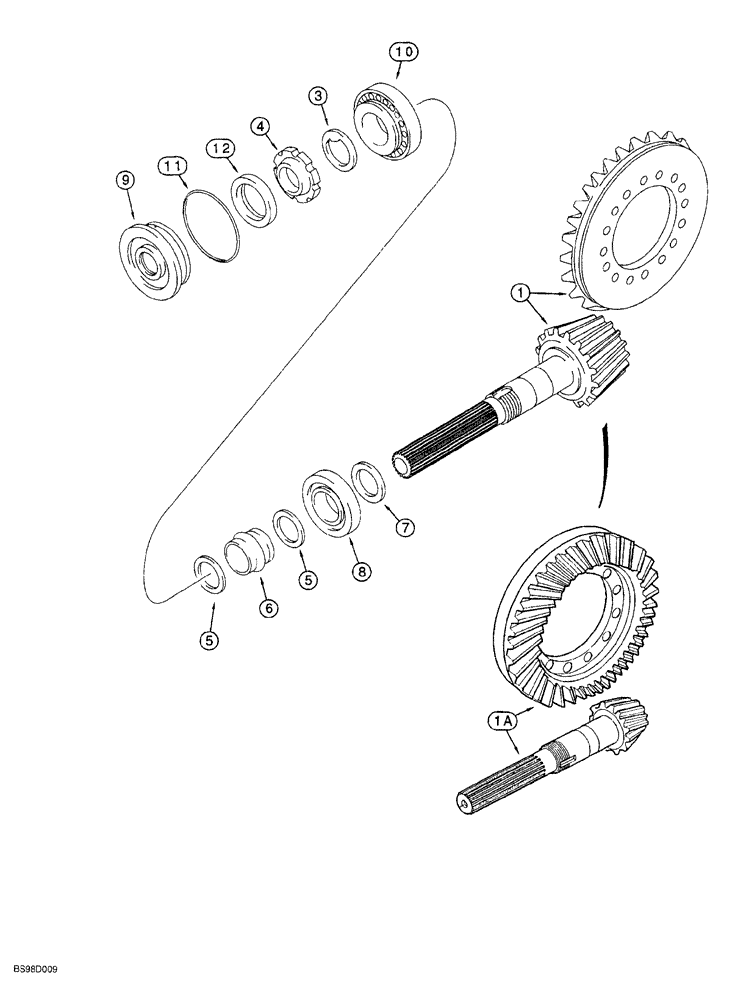

Запчасти Case 580SL (6-180) - REAR DRIVE AXLE, RING AND PINION GEAR SET (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
308027A1
AXLE, REAR
AXLE REAR ASSEMBLY, rear drive, models without powershift transmission, Includes: Ref. 1-12 and P/N's 294189A1 & 294190A1, see Fig. 6-174 - 6-186, 7-5A and 7-5C
1шт.
319064A1
AXLE, REAR
AXLE REAR ASSEMBLY, rear drive, models with powershift transmission, Includes: Ref. 1-12 and P/N's 294189A1 & 294190A1, see Fig. 6-174 - 6-186, 7-5A and 7-5C
1шт.
87350699
REMAN-REAR AXLE
REMANUFACTURED REAR AXLE - NA Only
1шт.
87350700
CORE-REAR AXLE
Return Number, REAR AXLE - NA Only
1шт.
1
294189A1
SET
GEAR, ring and pinion, clockwise, P/N 308027A1 axle without powershift transmission, Includes: Refs. 1-6
1шт.
1
NSS
NOT SOLD SEPARAT
GEAR ring and pinion, differential, P/N 294189A1 gear set, used in P/N 308027A1 axle without powershift transmission
1шт.
1a
294190A1
SET
GEAR, ring and pinion, counter clockwise, P/N 319064A1 axle with powershift transmission, Includes: Refs. 1A-6
1шт.
1a
NSS
NOT SOLD SEPARAT
GEAR ring and pinion, differential, P/N 294190A1 gear set, used in P/N 319064A1 axle with powershift transmission
1шт.
3
K261065
LOCK WASHER
special
1шт.
4
K261014
RING NUT,M40 x 1.5
RING, pinion gear
1шт.
5
1349059C1
WASHER,40.5mm ID x 50mm OD x 2mm Thk
spacer
2шт.
6
295110A1
SPACER
collapsible
1шт.
7
190506A1
SHIM,2.5mm Thk
(0.098")
1шт.
7
190508A1
SHIM,2.6mm Thk
(0.102")
1шт.
7
190509A1
SHIM,2.7mm Thk
(0.106")
1шт.
7
190510A1
SHIM,2.8mm Thk
(0.110")
1шт.
7
190511A1
SHIM,2.9mm Thk
(0.114")
1шт.
7
190512A1
SHIM,3.0mm Thk
(0.118")
1шт.
7
190513A1
SHIM,3.1mm Thk
(0.122")
1шт.
7
190514A1
SHIM,3.2mm Thk
(0.125")
1шт.
7
190515A1
SHIM,3.3mm Thk
(0.129")
1шт.
7
190516A1
SHIM,3.4mm Thk
(0.133")
1шт.
9
128570A1
FLANGE
COVER differential
1шт.
11
238-5152
O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro
Cover
1шт.
