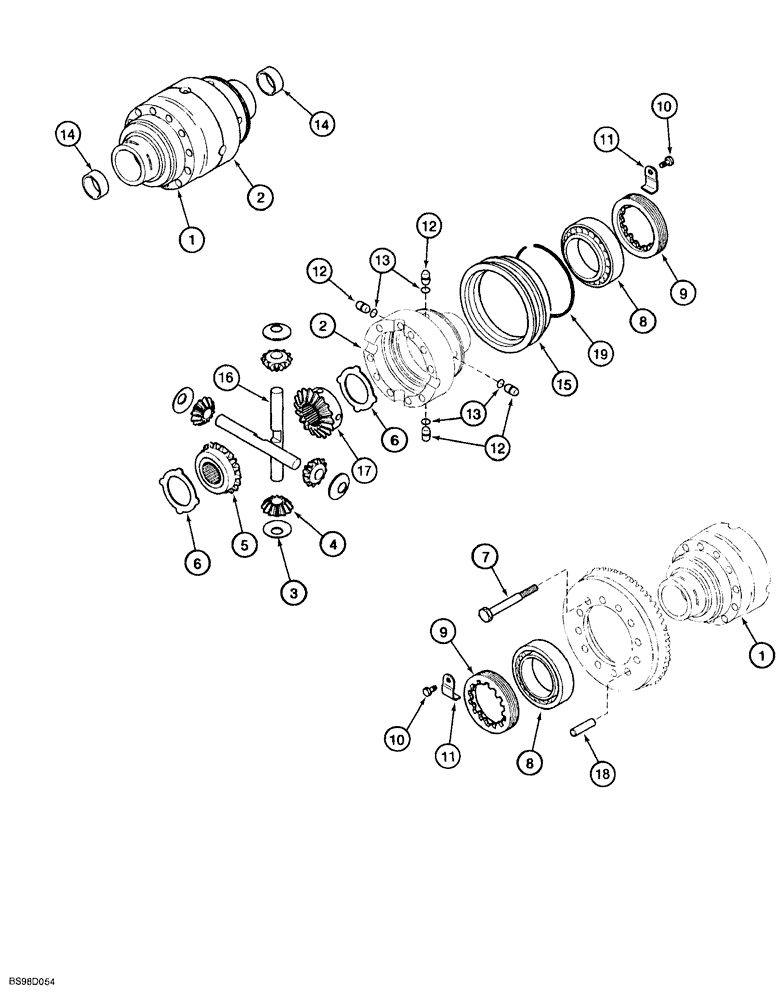

Запчасти Case 580SL (6-178) - REAR DRIVE AXLE, DIFFERENTIAL, MODELS WITH POWERSHIFT TRANSMISSION, COUNTER CLOCKWISE (06) - POWER TRAIN

319064A1

AXLE, REAR

AXLE REAR ASSEMBLY, rear drive, models with powershift transmission, Includes: Ref. 1-19, See Figure 6-174 - 6-186, 7-5A and 7-5C

1шт.

87350699

REMAN-REAR AXLE

REMANUFACTURED REAR AXLE - NA Only

1шт.

87350700

CORE-REAR AXLE

Return Number, REAR AXLE - NA Only

1шт.

292268A1

HOUSING

ASSEMBLY, differential, Includes: Refs. 1 & 2

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING differential, flange half

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING differential, plain half

1шт.

3

E135777

WASHER

thrust

4шт.

Part of gear set 294192A1

1шт.

4

190471A1

PINION

GEAR sun, 12 teeth, no longer sold separately, must be replaced as a set

4шт.

Part of gear set 294192A1

1шт.

5

D142971

PINION

GEAR side, no longer sold separately, must be replaced as a set

1шт.

Part of gear set 294192A1

1шт.

6

190469A1

THRUST WASHER

2шт.

Part of gear set 294192A1

1шт.

7

S300976

BOLT,M12 x 1.5 x 90mm

BOLT hex, special, 12 - 1.75 x 90 mm, class 12.9

10шт.

8

E135785

BEARING

cup and cone

2шт.

9

P3034505

NUT

RING locking, threaded

2шт.

10

112486A1

BOLT,Hex, M6 x 12

Special

2шт.

11

175959A1

BRACKET

lock

2шт.

12

292207A1

PIN

Housing

4шт.

13

292208A1

O-RING

pin

4шт.

14

190452A1

BUSHING

housing

2шт.

15

191067A1

SLEEVE

housing

1шт.

16

190468A1

SHAFT

sun gear, no longer sold separately, must be replaced as a set

2шт.

Part of gear set 294192A1

1шт.

17

292890A1

GEAR

side pinion, no longer sold separately, must be replaced as a set

1шт.

Part of gear set 294192A1

1шт.

18

D143033

DOWEL

PIN, 12 x 40 mm

2шт.

19

175961A1

RING, LOCKING

RING, LOCK

1шт.

294192A1

SET

gear, differential, service replacement, Includes: Refs. 3 - 6, 16 and 17

1шт.
