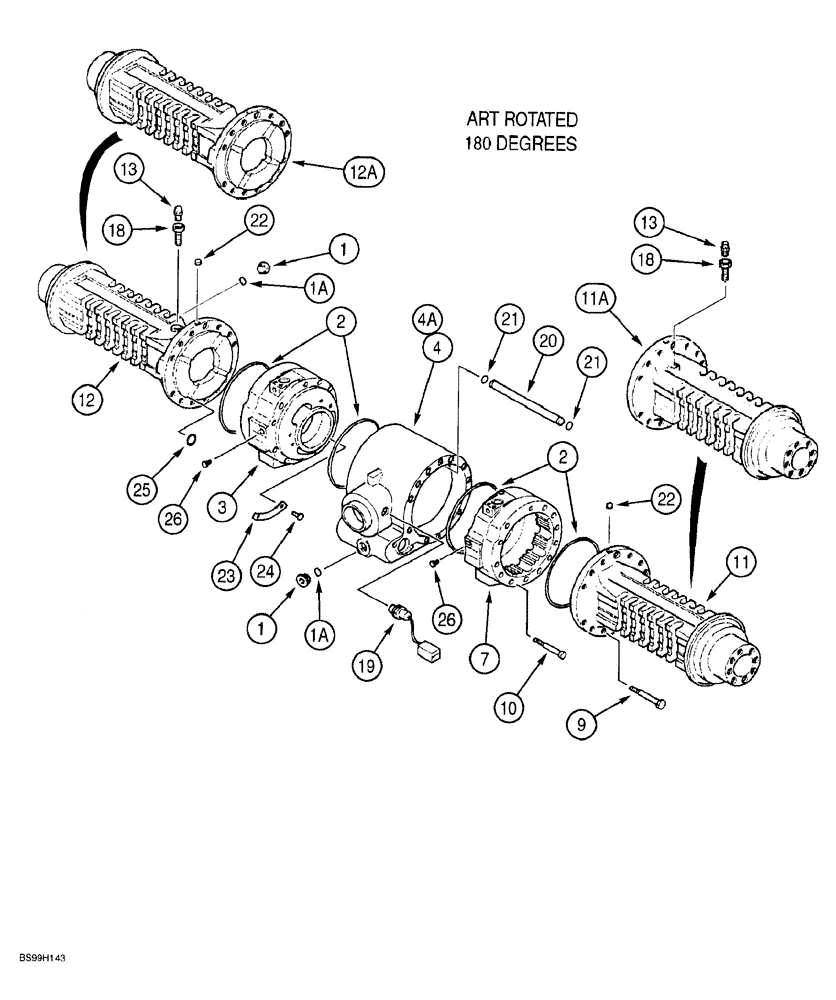

Запчасти Case 580SL (6-174) - REAR DRIVE AXLE, AXLE HOUSING (06) - POWER TRAIN

308027A1

AXLE, REAR

AXLE REAR ASSEMBLY, rear drive, models without powershift transmission, Includes: Ref. 1-26, see Fig. 6-174 - 6-186, 7-5A and 7-5C

1шт.

87350695

REMAN-AXLE

Remanufactured, 308027A1 Axle Parts On This Page Do Not Apply to Remanufactured Assy

1шт.

87350696

CORE-AXLE

Return Number

1шт.

319064A1

AXLE, REAR

AXLE REAR ASSEMBLY, rear drive, models with powershift transmission, Includes: Ref. 1-26, see Fig. 6-174 - 6-186, 7-5A and 7-5C

1шт.

87350699

REMAN-REAR AXLE

Remanufactured, 319064A1 Axle, North America Only; Parts On This Page Do Not Apply to Remanufactured Assy - NA Only

1шт.

87350700

CORE-REAR AXLE

Return Number, 319064A1 Axle, Core, Use This Part Number To Return Core For Credit When Using A Remanufactured Assy - NA Only

1шт.

1

100557A1

PLUG, DRAIN,M30 x 2

Includes: Ref. 1A

2шт.

1a

238-6121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

1шт.

2

238-5270

O-RING,0.139" Thk x 8.984" ID, -270, Cl 5, 75 Duro

4шт.

3

445266A1

FLANGE

CYLINDER brake, Right-Hand

1шт.

4

346585A1

HOUSING

center, axle, P/N 308027A1 without powershift transmission

1шт.

4a

367195A1

HUB

HOUSING center, axle, P/N 319064A1 axle with powershift transmission

1шт.

7

445267A1

FLANGE

CYLINDER brake, Left-Hand

1шт.

9

814-14140

BOLT,Hex, M14 x 2 x 140mm, Cl 8.8

22шт.

10

864-12130

HEX SOC SCREW,M12 x 130mm, Cl 8.8

BOLT hex socket, 12 - 1.75 x 130 mm

2шт.

11

358279A1

HUB

HOUSING axle, left hand side, without breather port, P/N 319064A1 powershift axle

1шт.

11a

358280A1

HUB

HOUSING axle, left hand side, with breather port, P/N 308027A1 non powershift axle

1шт.

12

358281A1

HUB

HOUSING axle, right hand side, with breather port, P/N 319064A1 powershift axle

1шт.

12a

358279A1

HUB

HOUSING axle, right hand side, without breather port, P/N 308027A1 non-powershift axle

1шт.

13

1966149C2

BREATHER

axle housing

1шт.

18

E135750

AXLE PIN

EXTENSION breather

1шт.

19

192481A1

SENSOR

SWITCH oil temperature, may have one or two wires

1шт.

20

346584A1

TUBE

internal

1шт.

21

346583A1

O-RING

tube

2шт.

22

D142898

PLUG,M10 x 1

sealing, hole

2шт.

23

347959A1

PLATE

brake cylinder

2шт.

24

347960A1

RIVET

48 x 6 mm

4шт.

25

P2230493

SEAL

O-RING special

8шт.

26

294245A1

CAP

PLUG, 7/16 -20 inch, if used

2шт.
