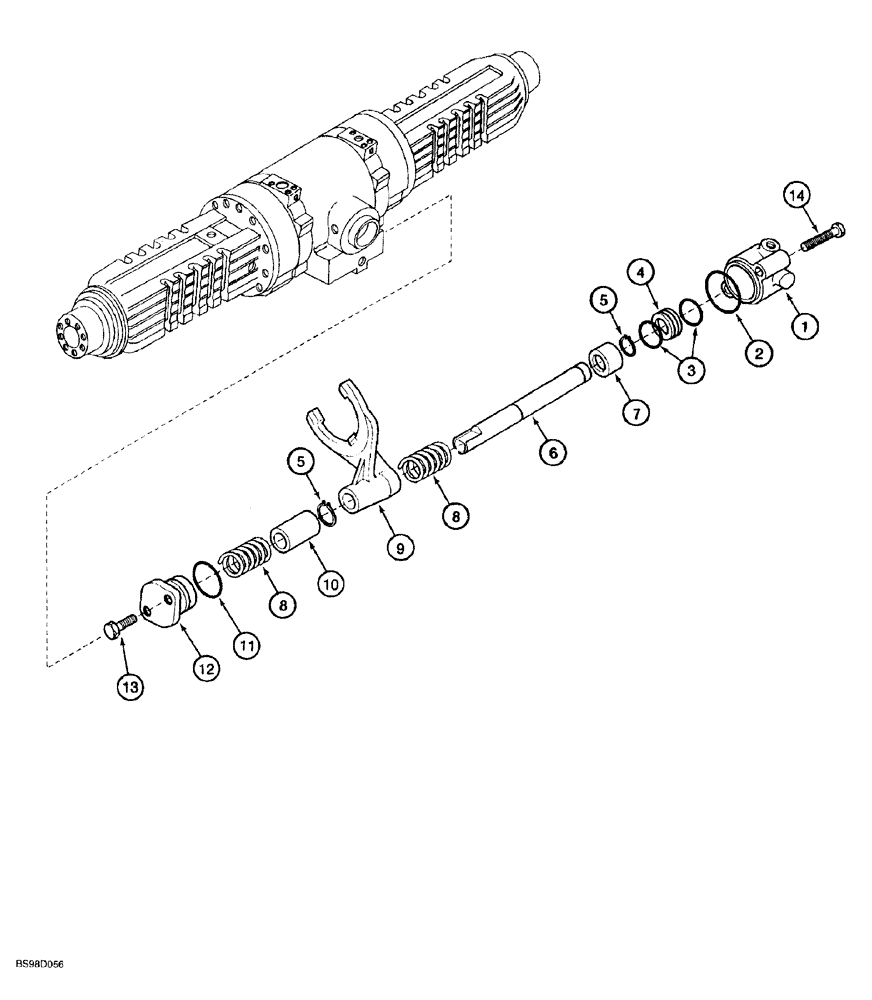

Запчасти Case 580SL (6-170) - REAR DRIVE AXLE, DIFFERENTIAL LOCK, MODELS WITH POWERSHIFT TRANSMISSION, COUNTER CLOCKWISE INPUT (06) - POWER TRAIN

279168A1

AXLE, REAR

AXLE REAR ASSEMBLY, rear drive, models w/powershift transmission, Includes: Ref. 1-14, see Fig. 6-160-6-172, 7-2 & 7-4, no longer available, order 319064A1 on Fig. 6-174, 213-126 clevis, (2) 322184A1 hose & 326348A1 yoke, see fig 7-8 & 7-12 for hose, clevis & yoke

1шт.

1

305153A1

CYLINDER

differential lock

1шт.

2

305152A1

O-RING

cylinder

1шт.

3

292210A1

SEAL

O-RING, external, piston

2шт.

4

292212A1

PISTON

differential lock

1шт.

5

800-5120

SNAP RING,M20, Ext

external heavy retaining, No. 20

2шт.

6

292214A1

SHAFT

rail, shifter fork

1шт.

7

292902A1

RING

BUSHING shaft

1шт.

8

175966A1

SPRING

shaft

2шт.

9

292897A1

FORK

shift

1шт.

10

175965A1

BUSHING

rail

1шт.

11

128376A1

O-RING

cover

1шт.

12

175968A1

SUPPORT

COVER housing

1шт.

13

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

Full thd

2шт.

14

814-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

2шт.
