(1-022) - PICTORIAL INDEX BACKHOE HYDRAULICS EXTENDABLE DIPPER

Запчасти Case 580SL (1-022) - PICTORIAL INDEX BACKHOE HYDRAULICS EXTENDABLE DIPPER (00) - PICTORIAL INDEX

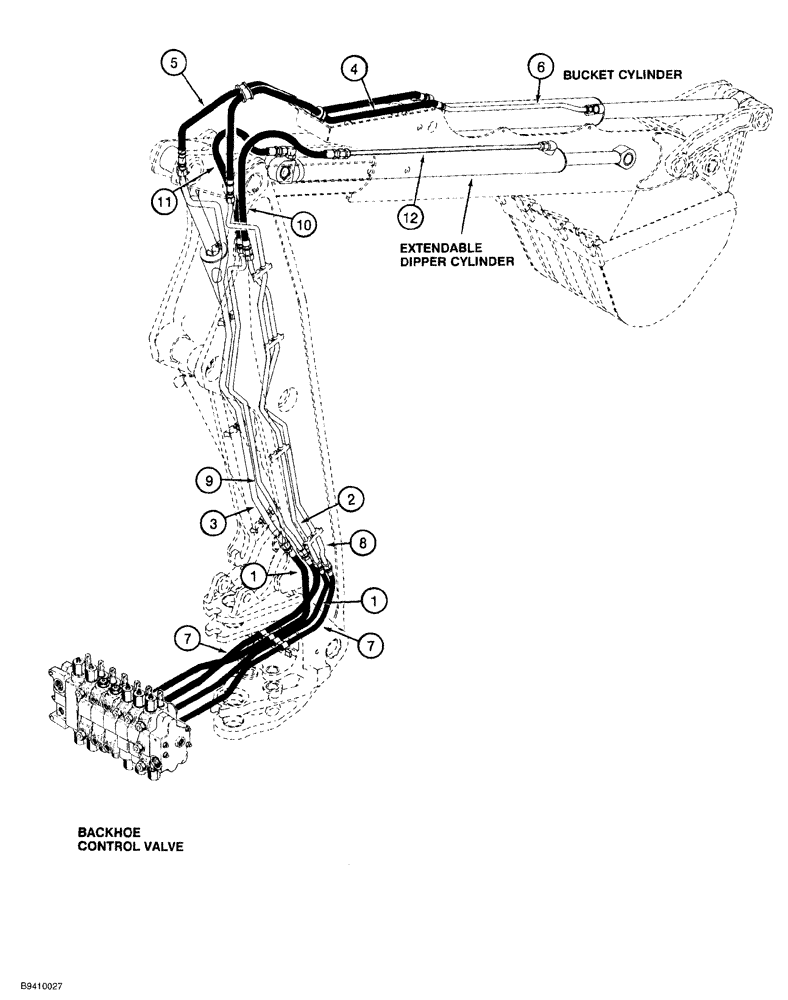

Схема запчастей Case 580SL - (1-022) - PICTORIAL INDEX BACKHOE HYDRAULICS EXTENDABLE DIPPER (00) - PICTORIAL INDEX
9
7
7
1
5
3
4
12
10
6
2
1
11
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Hoses at control valve through tower to boom, see Figure 8-032

1шт.

2

Tube on right-hand side of boom to bucket cylinder rod end hose, see Figure 8-032

1шт.

3

Tube on left-hand side of boom to bucket cylinder closed end hose, see Figure 8-032

1шт.

4

Hose to bucket cylinder rod end tube, see Figure 8-032

1шт.

5

Hose to bucket cylinder closed end, see Figure 8-032

1шт.

6

Bucket cylinder rod end tube, see Figure 8-032

1шт.

7

Hoses at control valve through swing tower to boom for extendable dipper circuit, see Figure 8-036

1шт.

8

Tube on boom to extendable dipper cylinder rod end hose, see Figure 8-036

1шт.

9

Tube on boom to extendable dipper cylinder closed end hose, see Figure 8-036

1шт.

10

Hose at extendable dipper cylinder rod end tube, see Figure 8-036

1шт.

11

Hose at extendable dipper cylinder closed end, see Figure 8-036

1шт.

12

Tube at extendable dipper cylinder rod end, see Figure 8-036

1шт.
