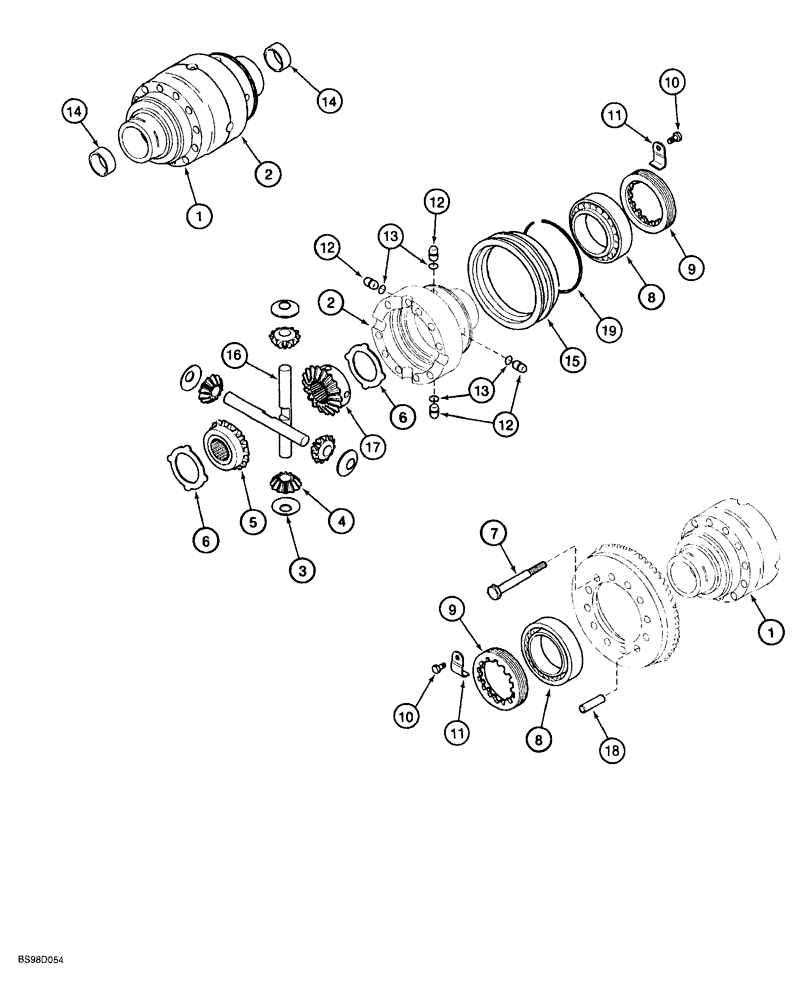

Запчасти Case 580SL (6-164) - REAR DRIVE AXLE, DIFFERENTIAL, MODELS WITH POWERSHIFT TRANSMISSION, COUNTER CLOCKWISE INPUT (06) - POWER TRAIN

279168A1

AXLE, REAR

AXLE REAR ASSY., rear drive, models w/o powershift trans.,Includes: Ref. 1-19 & 292268A1,see Fig. 6-160-6-172, 7-2 & 7-4, no longer available, order 308027A1 on Fig. 6-174, 213-126 clevis, (2) 322184A1 hose & 326348A1 yoke,see fig 7-8 & 7-12 for hose, clevis & yoke

1шт.

292268A1

HOUSING

ASSEMBLY, differential, Includes: Refs. 1 & 2

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING differential, flange half, part of gear set P/N 294192A1

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING differential, plain half, part of gear set P/N 294192A1

1шт.

3

E135777

WASHER

thrust

4шт.

Part of gear set 294192A1

1шт.

4

190471A1

PINION

GEAR sun, 12 teeth, no longer sold separately, must be replaced as a set, for service order P/N 294192A1 gear set, see below

4шт.

Part of gear set 294192A1

1шт.

5

D142971

PINION

GEAR side, pinion, no longer sold separately, must be replaced as a set, for service order P/N 294192A1 gear set, see below

1шт.

Part of gear set 294192A1

1шт.

6

190469A1

THRUST WASHER

2шт.

Part of gear set 294192A1

1шт.

7

S300976

BOLT,M12 x 1.5 x 90mm

BOLT hex, special, 12 - 1.75 x 90 mm, class 12.9

10шт.

8

E135785

BEARING

cup and cone

2шт.

9

P3034505

NUT

RING locking, threaded

2шт.

10

112486A1

BOLT,Hex, M6 x 12

Special

2шт.

11

175959A1

BRACKET

lock

2шт.

12

292207A1

PIN

Housing

4шт.

13

292208A1

O-RING

pin

4шт.

14

190452A1

BUSHING

housing

2шт.

15

191067A1

SLEEVE

housing

1шт.

16

190468A1

SHAFT

sun gear, no longer sold separately, must be replaced as a set, for service order P/N 294192A1 gear set, see below

2шт.

Part of gear set 294192A1

1шт.

17

292890A1

GEAR

side pinion, no longer sold separately, must be replaced as a set, for service order P/N 294192A1 gear set, see below

1шт.

Part of gear set 294192A1

1шт.

18

D143033

DOWEL

PIN, 12 x 40 mm

2шт.

19

175961A1

RING, LOCKING

RING, LOCK

1шт.

294192A1

SET

gear, differential, service replacement, includes Refs. 3-6, 16 and 17

1шт.
