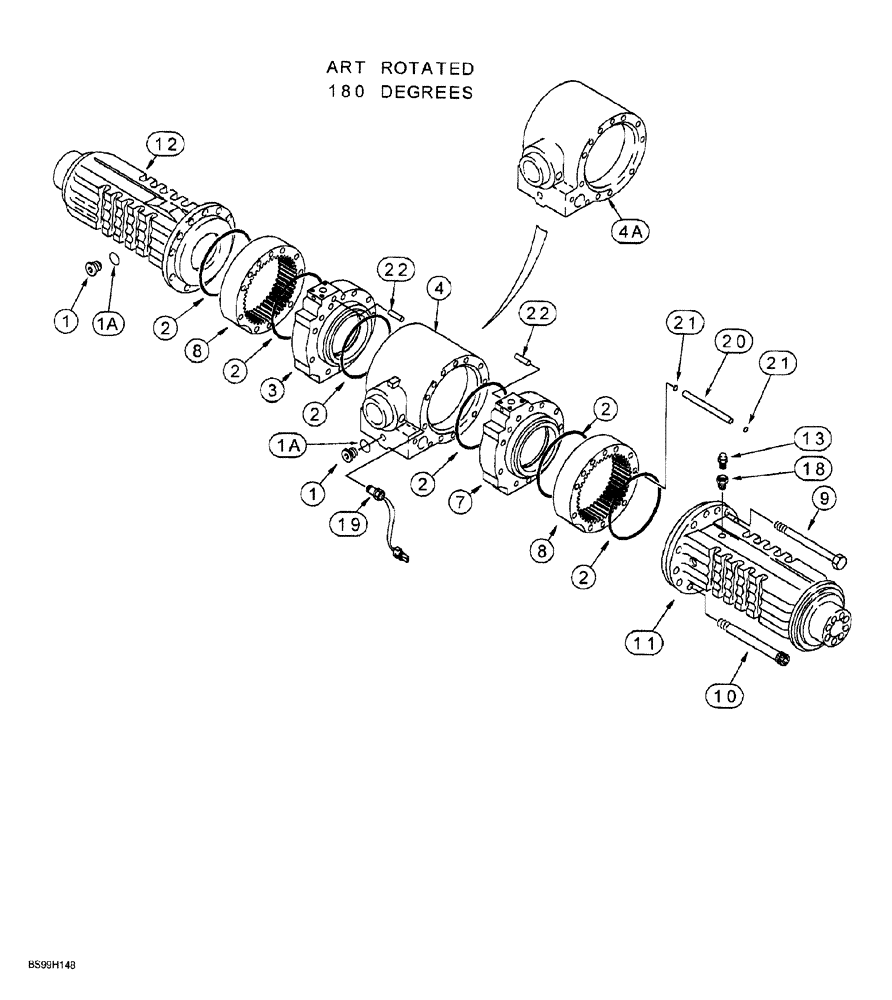

Запчасти Case 580SL (6-160) - REAR DRIVE AXLE, AXLE HOUSING (06) - POWER TRAIN

279169A1

AXLE, REAR

AXLE REAR ASSEMBLY, rear drive, models w/o powershift transmission, Includes: Ref. 1-22,see Fig. 6-160-6-172, 7-2 & 7-4, no longer available, order 308027A1 on Fig. 6-174, 213-126 clevis, (2) 322184A1 hose & 326348A1 yoke, see fig 7-8 & 7-12 for hose, clevis & yoke

1шт.

279168A1

AXLE, REAR

AXLE REAR ASSEMBLY, rear drive, models w/powershift transmission, Includes: Ref. 1-22, see Fig. 6-160-6-172, 7-2 & 7-4, no longer available, order 319064A1 on Fig. 6-174, 213-126 clevis, (2) 322184A1 hose & 326348A1 yoke, see fig 7-8 & 7-12 for hose, clevis & yoke

1шт.

1

100557A1

PLUG, DRAIN,M30 x 2

Includes: Ref. 1A

2шт.

1a

238-6121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

1шт.

2

238-5270

O-RING,0.139" Thk x 8.984" ID, -270, Cl 5, 75 Duro

6шт.

3

190457A2

CYLINDER

brake, right hand, P/N 279169A1 axle without powershift transmission, no longer available, order P/N 315550A1 kit

1шт.

3a

314330A1

CYLINDER

brake, right hand, not shown, P/N 279168A1 axle with powershift transmission, no longer available, order P/N 315552A1 kit

1шт.

4

295114A1

HOUSING

center, axle, P/N 279169A1 axle without powershift transmission

1шт.

4a

295107A1

HOUSING

center, axle, P/N 279168A1 axle with powershift transmission

1шт.

7

190458A2

CYLINDER

brake, left hand, no longer available, order P/N 315551A1 kit

1шт.

8

190459A1

FLANGE

SLEEVE gear housing

2шт.

9

814-14140

BOLT,Hex, M14 x 2 x 140mm, Cl 8.8

22шт.

10

864-12130

HEX SOC SCREW,M12 x 130mm, Cl 8.8

BOLT hex socket, 12 - 1.75 x 130 mm

4шт.

11

295108A1

HOUSING

axle, left hand side

1шт.

12

295109A1

HOUSING

axle, right hand side

1шт.

13

1966149C2

BREATHER

axle housing

1шт.

18

E135750

AXLE PIN

EXTENSION breather

1шт.

19

192481A1

SENSOR

SWITCH oil temperature, may have one or two wires

1шт.

20

222688A1

TUBE

internal, left hand sleeve on Carraro axle, right hand sleeve on Clark

1шт.

21

100760A1

O-RING

sealing, tube

2шт.

22

D142898

PLUG,M10 x 1

sealing, hole; M10 x 1

2шт.

315550A1

SET OF PARTS

KIT brake cylinder, includes P/N 190457A2 cylinder and P/N D142898 plug, Ref. 3 and 22, right hand

1шт.

315551A1

SET OF PARTS

KIT brake cylinder, includes P/N 190458A2 cylinder and P/N D142898 plug, Ref. 7 and 22, left hand

1шт.

315552A1

CYLINDER

KIT brake, includes P/N 314330A1 cylinder and P/N D142898 plug, Ref. 3A and 22, right hand

1шт.
