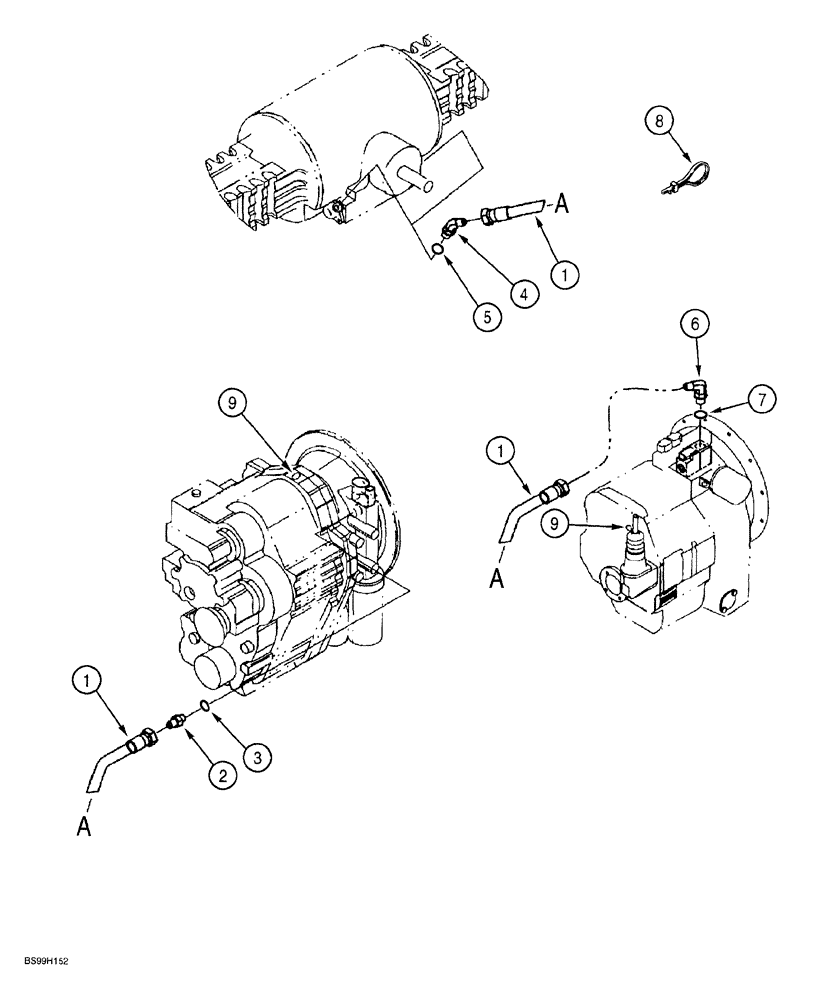

Запчасти Case 580SL (6-158) - REAR AXLE DIFFERENTIAL LOCK, DIFFERENTIAL LOCK SOLENOID VALVE INTEGRAL PART OF TRANSMISSION (06) - POWER TRAIN

1

304019A1

HOSE

1200 mm (47-1/4 inch) long, supply

1шт.

2

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 3

1шт.

4

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

45 degree, 9/16-18 inch flare x adj. O-ring boss, Includes: Ref. 5, axle port location shown is for models without powershift transmission; for models with powershift transmission, the elbow is located on the opposite side of the axle input shaft

1шт.

6

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, 9/16-18 inch flare x adj. O-ring boss, Includes: Ref. 7

1шт.

8

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

1шт.

9

E135809

PLUG

transmission, if used

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
