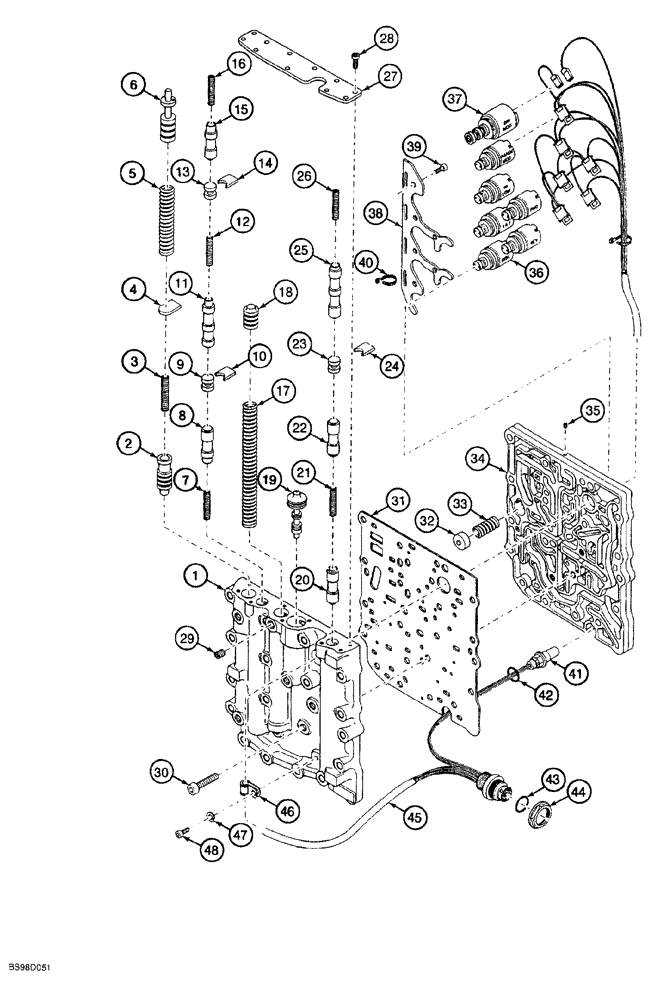

Запчасти Case 580SL (6-146) - CLARK POWERSHIFT TRANSMISSION ASSEMBLY, CONTROL VALVE ASSEMBLY (06) - POWER TRAIN

336896A1

GEARBOX ASSY

TRANSMISSION, four wheel drive, powershift, with integral differential lock solenoid valve, Includes: Ref. 1-48 and Valve Assy., see Figs. 6-120 - 6-150, if used

1шт.

87420798R

REMAN-TRANSMISSION

Reman, transmission, powershift, Does Not Include Torque Converter

1шт.

87420798C

CORE-TRANSMISSION

Return Part Number

1шт.

291576A1

CONTROL BLOCK

VALVE ASSEMBLY, transmission control, Includes: Refs. 1-48

1шт.

1

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL valve, pressure reducer

1шт.

3

NSS

NOT SOLD SEPARAT

SPRING valve

1шт.

4

NSS

NOT SOLD SEPARAT

PLATE spring, separator

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING detent, pressure regulator

1шт.

6

NSS

NOT SOLD SEPARAT

SPOOL valve, pressure regulator

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING valve, pilot spool

1шт.

8

NSS

NOT SOLD SEPARAT

SPOOL valve, disconnect

1шт.

9

NSS

NOT SOLD SEPARAT

STOP spool

1шт.

10

NSS

NOT SOLD SEPARAT

PLATE intermediate, separator

1шт.

11

NSS

NOT SOLD SEPARAT

SPOOL valve, first/second

1шт.

12

NSS

NOT SOLD SEPARAT

SPRING valve, pilot spool

1шт.

13

NSS

NOT SOLD SEPARAT

STOP spool

1шт.

14

NSS

NOT SOLD SEPARAT

PLATE intermediate

1шт.

15

NSS

NOT SOLD SEPARAT

SPOOL valve, range modulation

1шт.

16

NSS

NOT SOLD SEPARAT

SPRING valve, pilot spool

1шт.

17

NSS

NOT SOLD SEPARAT

SPRING valve, accumulator

1шт.

18

NSS

NOT SOLD SEPARAT

SPOOL valve, accumulator

1шт.

19

NSS

NOT SOLD SEPARAT

SPOOL valve, booster

1шт.

20

NSS

NOT SOLD SEPARAT

SPOOL valve, reverse

1шт.

21

NSS

NOT SOLD SEPARAT

SPRING valve, pilot spool

1шт.

22

NSS

NOT SOLD SEPARAT

SPOOL valve, forward

1шт.

23

NSS

NOT SOLD SEPARAT

STOP spool

1шт.

24

NSS

NOT SOLD SEPARAT

PLATE intermediate

1шт.

25

NSS

NOT SOLD SEPARAT

SPOOL valve, forward low/forward high

1шт.

26

NSS

NOT SOLD SEPARAT

SPRING valve

1шт.

27

NSS

NOT SOLD SEPARAT

COVER valve

1шт.

28

864-5012

HEX SOC SCREW,M5 x 12mm, Cl 8.8

11шт.

29

366663A1

PLUG

valve check port

2шт.

30

864-8030

HEX SOC SCREW,M8 x 30mm, Cl 8.8

3шт.

31

NSS

NOT SOLD SEPARAT

PLATE valve, spacer

1шт.

32

292176A1

VALVE POPPET

SPOOL bypass valve

1шт.

33

292177A1

SPRING

SPRING bypass valve

1шт.

34

NSS

NOT SOLD SEPARAT

PLATE valve, solenoid

1шт.

35

319597A1

PLUG

PLUG valve

6шт.

36

291862A1

SOLENOID

valve

6шт.

336896A1

GEARBOX ASSY

TRANSMISSION ASSEMBLY, four wheel drive, powershift, with integral differential lock solenoid valve, parts list Figs. 6-120 - 6-150, if used

1шт.

291576A1

CONTROL BLOCK

VALVE ASSEMBLY, transmission, continued from previous Fig.

1шт.

37

291861A1

SOLENOID

MODULE, electronic control

1шт.

38

NSS

NOT SOLD SEPARAT

BAIL valve

1шт.

39

864-5012

HEX SOC SCREW,M5 x 12mm, Cl 8.8

6шт.

40

319598A1

STRAP

tie

6шт.

41

362141A1

SENSOR

speed

1шт.

42

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

43

238-9213

O-RING,-212, Cl 9, .921" ID x .139" Thk

1шт.

44

NSS

NOT SOLD SEPARAT

NUT jam, retaining

1шт.

45

362142A1

HARNESS

valve, includes 362141A1 speed sensor, P/N's 238-5115 and 238-9213 O-rings, plus NSS jam nut

1шт.

46

319599A1

CLAMP

valve

1шт.

47

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

1шт.

48

864-5010

HEX SOC SCREW,M5 x 10mm, Cl 8.8

1шт.
