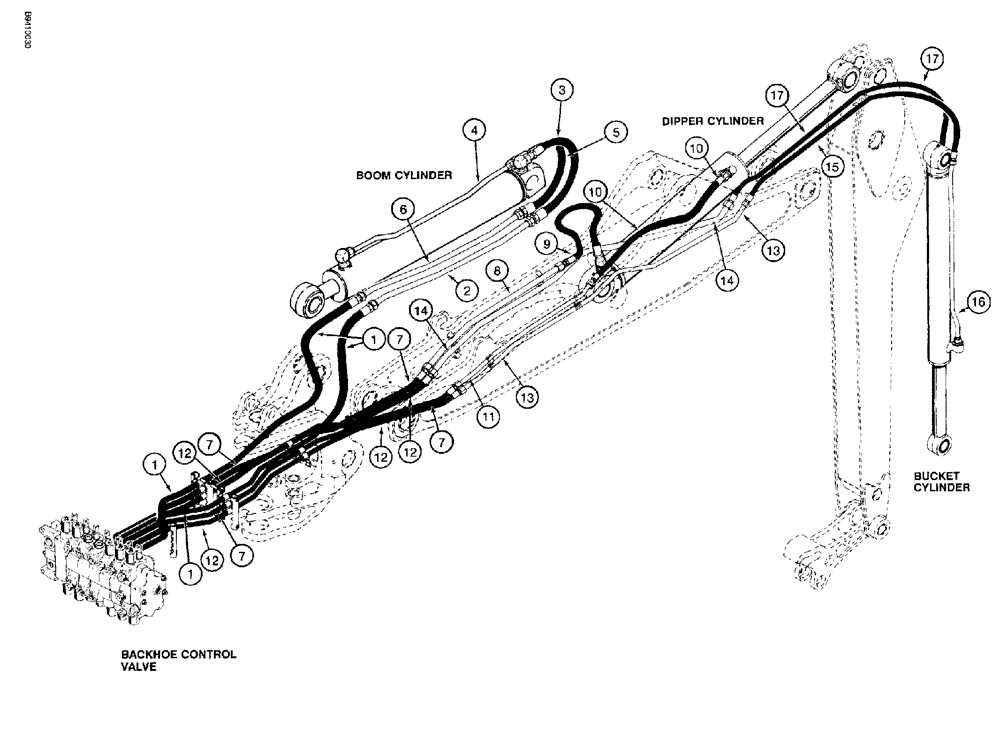

(1-020) - PICTORIAL INDEX BACKHOE HYDRAULICS BOOM, DIPPER & BUCKET

Запчасти Case 580SL (1-020) - PICTORIAL INDEX BACKHOE HYDRAULICS BOOM, DIPPER & BUCKET (00) - PICTORIAL INDEX

Схема запчастей Case 580SL - (1-020) - PICTORIAL INDEX BACKHOE HYDRAULICS BOOM, DIPPER & BUCKET (00) - PICTORIAL INDEX
7
12
13
3
12
5
12
17
17
7
1
13
4
15
1
14
1
12
8
10
6
9
14
7
2
11
7
10
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Hoses at control valve through swing tower to boom, see Figure 8-024

1шт.

2

Tube to boom cylinder closed end hose, see Figure 8-024

1шт.

3

Boom cylinder closed end hose, see Figure 8-024

1шт.

4

Boom cylinder rod end tube, see Figure 8-024

1шт.

5

Hose to boom cylinder rod end tube, see Figure 8-024

1шт.

6

Tube to boom cylinder rod end hose, see Figure 8-024

1шт.

7

Hoses at control valve through swing tower to boom for dipper, see Figure 8-026

1шт.

8

Tube to dipper cylinder closed end hose, see Figure 8-026

1шт.

9

Hose at dipper cylinder closed end, see Figure 8-026

1шт.

10

Hose at dipper cylinder rod end, see Figure 8-026

1шт.

11

Tube to dipper cylinder rod end hose, see Figure 8-026

1шт.

12

Hoses at control valve through swing tower to boom for bucket, see Figure 8-028

1шт.

13

Tube on right-hand side of boom, to bucket cylinder rod end hose, see Figure 8-028

1шт.

14

Tube on left-hand side of boom, to bucket cylinder closed end hose, see Figure 8-028

1шт.

15

Hose to bucket cylinder rod end tube, see Figure 8-028

1шт.

16

Bucket cylinder rod end tube, see Figure 8-028

1шт.

17

Hose at bucket cylinder closed end, see Figure 8-030

1шт.
