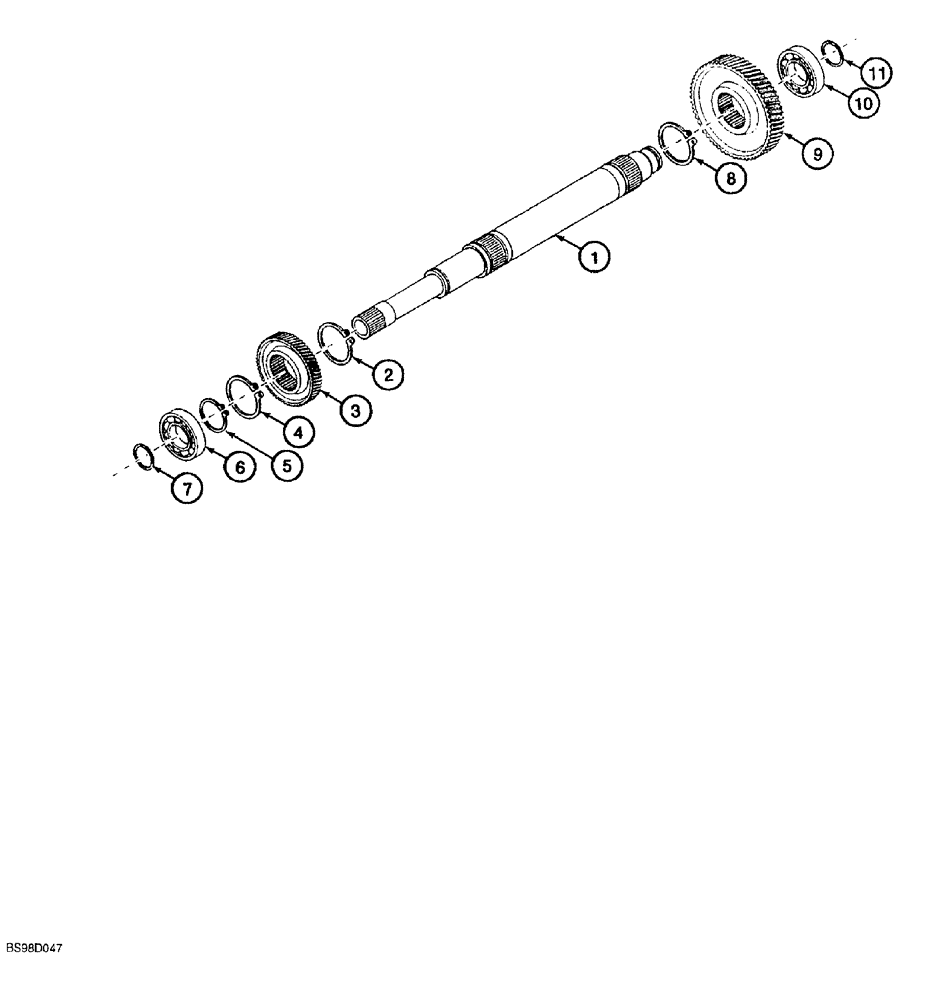

Запчасти Case 580SL (6-138) - CLARK POWERSHIFT TRANSMISSION ASSEMBLY, CLUTCH AND PINIONS, PUMP DRIVE (06) - POWER TRAIN

336896A1

GEARBOX ASSY

TRANSMISSION, four wheel drive, powershift, with integral differential lock solenoid valve, Includes: Ref. 1-11, see Figs. 6-120 - 6-150, if used

1шт.

87420798R

REMAN-TRANSMISSION

Reman, transmission, powershift, Does Not Include Torque Converter

1шт.

87420798C

CORE-TRANSMISSION

Return Part Number

1шт.

1

291563A1

SHAFT

input

1шт.

2

800-5150

SNAP RING,M50, Ext

RING external heavy retaining, No. 50

1шт.

3

291549A1

PINION

GEAR forward low, 26 teeth

1шт.

4

800-1150

SNAP RING,M50, Ext

RING external retaining, No. 50

1шт.

5

800-1140

SNAP RING,M40, Ext

Retaining

1шт.

6

292423A1

BALL BEARING,40mm ID x 90mm OD x 23mm W

ball

1шт.

7

291528A1

SEALING RING

SEALRING RING seal

1шт.

8

800-1150

SNAP RING,M50, Ext

RING external retaining, No. 50

1шт.

9

291548A1

PINION

GEAR forward high, 62 teeth

1шт.

10

292423A1

BALL BEARING,40mm ID x 90mm OD x 23mm W

ball

1шт.

11

291528A1

SEALING RING

SEALRING RING seal

1шт.
