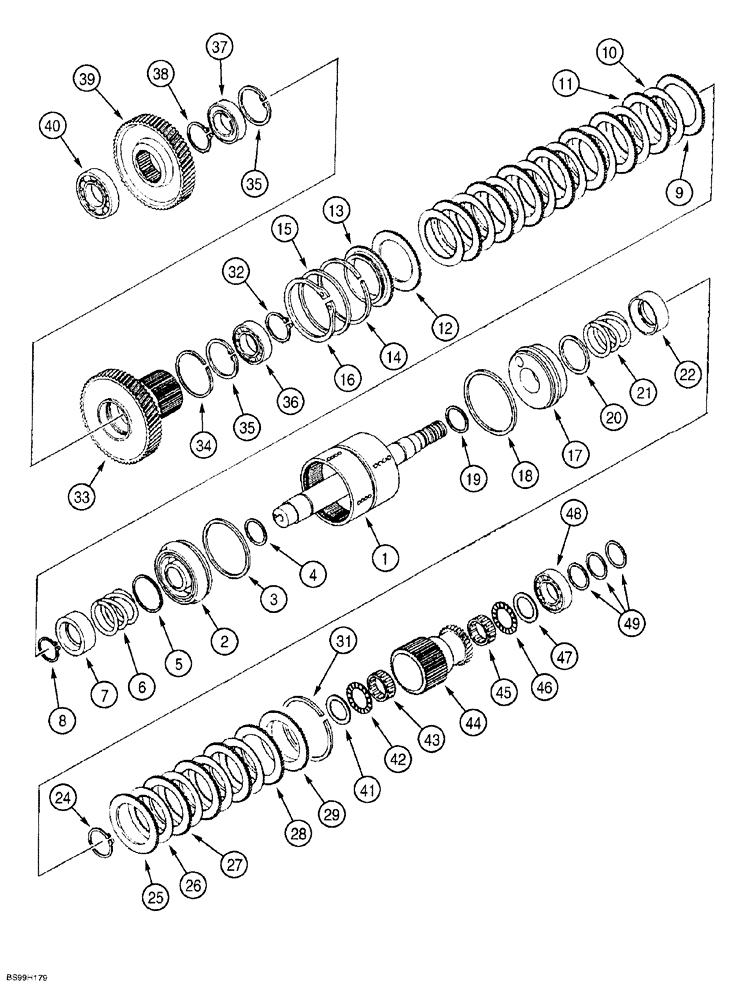

Запчасти Case 580SL (6-130) - CLARK POWERSHIFT TRANSMISSION ASSEMBLY, CLUTCH AND PINIONS, HIGH SPEED AND LOW SPEED, FORWARD DRIVE (06) - POWER TRAIN

336896A1

GEARBOX ASSY

TRANSMISSION ASSEMBLY, four wheel drive, powershift, with integral differential lock solenoid valve, Includes: Ref. 1-49, see Figs. 6-120 - 6-150, if used

1шт.

87420798R

REMAN-TRANSMISSION

Reman, transmission, powershift Does Not Include Torque Converter

1шт.

87420798C

CORE-TRANSMISSION

Return Part Number

1шт.

1

305726A1

SHAFT

drum, forward low and high

1шт.

2

291520A1

PISTON

clutch, Includes: Refs. 3 & 4

1шт.

3

E114385

SEAL,123.49mm ID x 133.17mm OD x 9.68mm Thk

RING piston

1шт.

4

E114386

SEAL,50.98mm ID x 58.03mm OD x 3.3mm Thk

piston

1шт.

5

291529A1

RING

RING wear, clutch piston

1шт.

6

291531A1

SPRING

return

1шт.

7

291530A1

RETAINER

SEAT spring

1шт.

8

100-11196

SNAP RING,#196, Ext

1шт.

9

291578A1

DISC

friction, external

1шт.

10

291580A1

DISC

friction, internal, clutch separator plate

8шт.

11

291579A1

DISC

friction, external

7шт.

12

291578A1

DISC

friction, external

1шт.

13

291566A1

DISC

PLATE backing, clutch

1шт.

14

292415A1

RING, SNAP

RING SNAP RING retaining

1шт.

15

291567A1

SPACER

clutch disc backing plate

1шт.

16

800-11115

SNAP RING,M115, Ext

Retaining

1шт.

17

291520A1

PISTON

clutch, Includes: Refs. 18 & 19

1шт.

18

E114385

SEAL,123.49mm ID x 133.17mm OD x 9.68mm Thk

RING piston

1шт.

19

E114386

SEAL,50.98mm ID x 58.03mm OD x 3.3mm Thk

piston

1шт.

20

291529A1

RING

RING wear, clutch piston

1шт.

21

291531A1

SPRING

return, piston

1шт.

22

291530A1

RETAINER

SEAT spring

1шт.

24

100-11196

SNAP RING,#196, Ext

1шт.

25

291578A1

DISC

friction, external

1шт.

26

291580A1

DISC

friction, internal, clutch separator plate

4шт.

27

291579A1

DISC

friction, external

3шт.

28

291578A1

DISC

friction, external

1шт.

29

291571A1

DISC

PLATE backing, clutch

1шт.

336896A1

GEARBOX ASSY

TRANSMISSION ASSEMBLY, four wheel drive, powershift, with integral differential lock solenoid valve, parts list Figs. 6-120 - 6-150, if used

1шт.

31

292415A1

RING, SNAP

RING SNAP RING retaining

1шт.

32

800-1150

SNAP RING,M50, Ext

RING external retaining, No. 50

1шт.

33

291558A1

PINION

GEAR, 54 teeth, forward reverse clutch

1шт.

34

291573A1

CIRCLIP

RING retaining

1шт.

35

800-2180

SNAP RING,M80, Int

Retaining

2шт.

36

292426A1

BALL BEARING

ball

1шт.

37

292431A1

BALL BEARING

ball

1шт.

38

800-1150

SNAP RING,M50, Ext

RING external retaining, No. 50

1шт.

39

291551A1

PINION

GEAR driven, forward, 42 teeth

1шт.

40

292432A1

BALL BEARING

ball

1шт.

41

294080A1

SPACER

WASHER thrust

1шт.

42

A183452

THRUST BEARING,45.05mm ID x 66.85mm OD x 3.85mm W

thrust, needle

1шт.

43

A178460

NEEDLE BEARING,44.99mm ID x 50.02mm OD x 16.8mm W

needle

1шт.

44

291556A1

PINION

GEAR, 34 teeth, forward high clutch

1шт.

45

A178460

NEEDLE BEARING,44.99mm ID x 50.02mm OD x 16.8mm W

needle

1шт.

46

A183452

THRUST BEARING,45.05mm ID x 66.85mm OD x 3.85mm W

thrust, needle

1шт.

47

294080A1

SPACER

WASHER thrust

1шт.

48

292429A1

BALL BEARING,40mm ID x 80mm OD x 18mm W

ball

1шт.

49

291528A1

SEALING RING

SEALRING RING seal

3шт.
