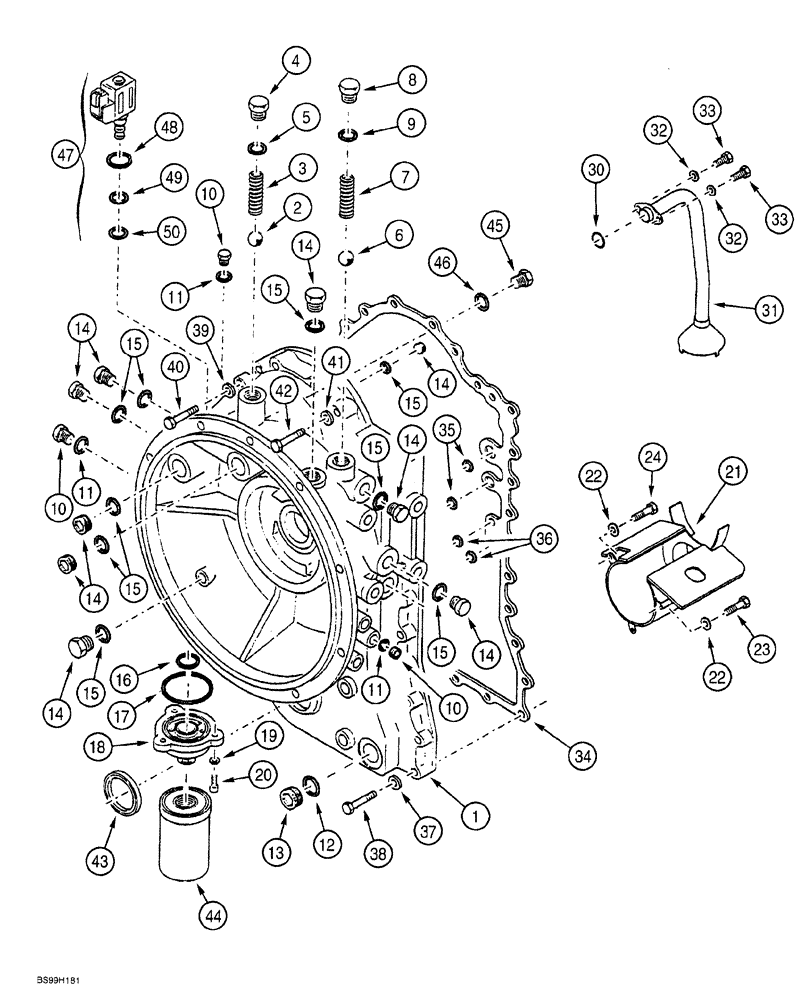

Запчасти Case 580SL (6-120) - CLARK POWERSHIFT TRANSMISSION ASSEMBLY, HOUSING AND OIL FILTER (06) - POWER TRAIN

336896A1

GEARBOX ASSY

TRANSMISSION ASSEMBLY, four wheel drive, powershift, with integral differential lock solenoid valve, Includes: Ref. 1-50, see Figs. 6-120 - 6-150, if used

1шт.

87420798R

REMAN-TRANSMISSION

Reman, transmission, powershift Does Not Include Torque Converter

1шт.

87420798C

CORE-TRANSMISSION

Return Part Number

1шт.

1

361940A1

HOUSING

converter

1шт.

2

211-1024

BALL,3/4" Dia

chrome alloy steel, 3/4 inch, grade 24

1шт.

3

291568A1

SPRING

detent, bypass

1шт.

4

292413A1

PLUG

special, Includes: Ref. 5

1шт.

5

238-7119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 7, 75 Duro

Plug

1шт.

6

511-10250

BALL,25mm Dia

25 mm, grade 28, chrome alloy steel

1шт.

7

291525A1

SPRING

detent, valve

1шт.

8

292166A1

PLUG

special, Includes: Ref. 9

1шт.

9

238-7123

O-RING,0.103" Thk x 1.174" ID, -123, Cl 7, 75 Duro

1шт.

10

292164A1

PLUG

special, Includes: Ref. 11

3шт.

11

238-7011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 7, 75 Duro

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL, not used

1шт.

13

NSS

NOT SOLD SEPARAT

PLUG special, not used

1шт.

14

292165A1

PLUG

special, Includes: Ref. 15

9шт.

15

238-7116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 7, 75 Duro

1шт.

16

292419A1

O-RING

filter adapter

1шт.

17

238-5150

O-RING,0.103" Thk x 2.862" ID, -150, Cl 5, 75 Duro

1шт.

18

362140A1

SUPPORT

ADAPTER filter

1шт.

19

892-10010

LOCK WASHER,10.4mm ID x 18.1mm OD x 3.5mm Thk

3шт.

20

863-10025

HEX SOC SCREW,M10 x 25mm, Cl 12.9

3шт.

21

305725A1

BAFFLE

oil

1шт.

22

892-10010

LOCK WASHER,10.4mm ID x 18.1mm OD x 3.5mm Thk

3шт.

23

863-10016

HEX SOC SCREW,M10 x 16mm, Cl 12.9

BOLT hex socket, 10 - 1.5 x 16 mm, class 12.9

2шт.

24

615-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

1шт.

30

238-7218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 7, 75 Duro

1шт.

31

291565A1

TUBE

TUBE suction

1шт.

32

892-10010

LOCK WASHER,10.4mm ID x 18.1mm OD x 3.5mm Thk

2шт.

33

863-10016

HEX SOC SCREW,M10 x 16mm, Cl 12.9

BOLT hex socket, 10 - 1.5 x 16 mm, class 12.9

2шт.

34

291543A1

GASKET

housing

1шт.

35

238-5020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 5, 75 Duro

2шт.

36

238-7013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro

2шт.

37

892-10010

LOCK WASHER,10.4mm ID x 18.1mm OD x 3.5mm Thk

14шт.

38

828-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

BOLT hex, 10 - 1.5 x 50 mm, class 10.9

14шт.

39

892-10010

LOCK WASHER,10.4mm ID x 18.1mm OD x 3.5mm Thk

2шт.

336896A1

GEARBOX ASSY

TRANSMISSION ASSEMBLY, four wheel drive, powershift, with integral differential lock solenoid valve, parts list Figs. 6-120 - 6-150, if used

1шт.

40

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

41

892-10010

LOCK WASHER,10.4mm ID x 18.1mm OD x 3.5mm Thk

4шт.

42

828-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

4шт.

43

291527A1

SEAL

housing

1шт.

44

291538A1

FILTER ASSY

transmission

1шт.

45

9625178

PLUG,9/16" - 18 ORB

Incl. Ref. 46

1шт.

47

349295A1

SOLENOID VALVE

VALVE ASSEMBLY, differential lock solenoid, Includes: Refs. 48-50

1шт.

48

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

49

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

50

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

NSS

NOT SOLD SEPARAT

VALVE solenoid, cartridge, component parts not serviced separately

1шт.

NSS

NOT SOLD SEPARAT

COIL solenoid

1шт.

NSS

NOT SOLD SEPARAT

NUT jam

1шт.

46

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
