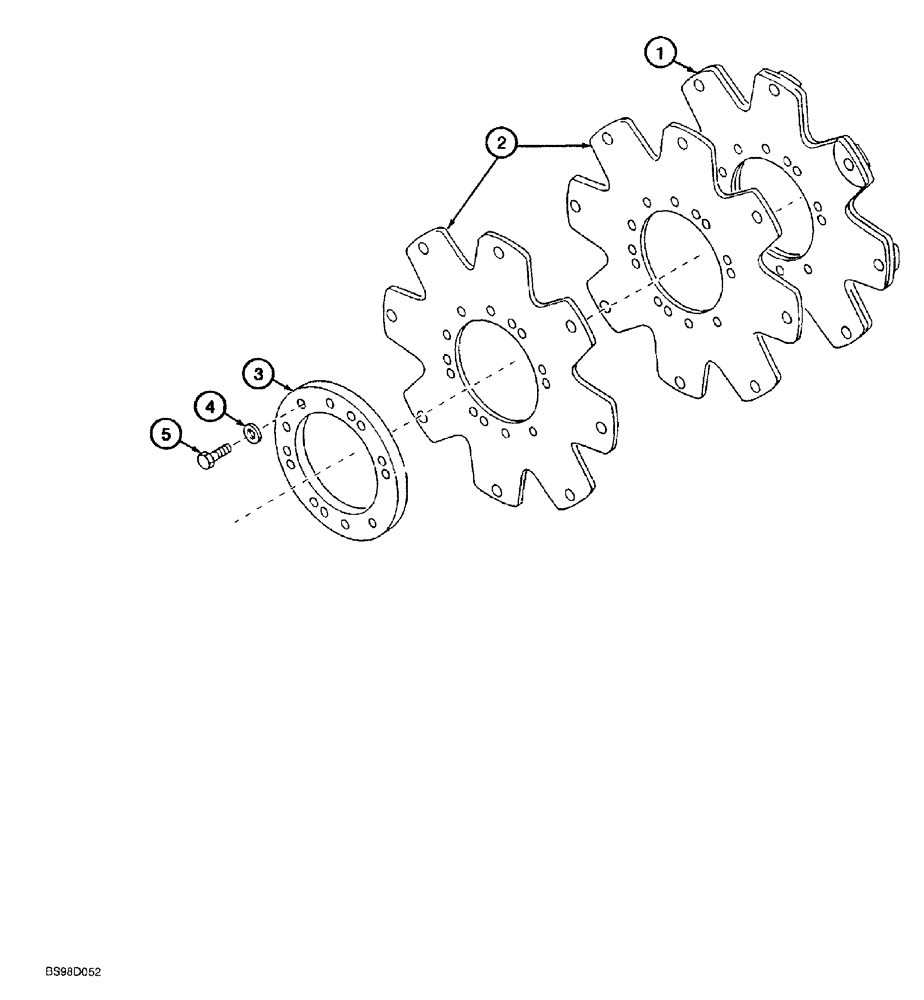

Запчасти Case 580SL (6-118) - CLARK POWERSHIFT TRANSMISSION ASSEMBLY, DRIVE PLATE (06) - POWER TRAIN

199317A4

GEARBOX ASSY

TRANSMISSION, four wheel drive, powershift, used with chassis mounted differential lock solenoid valve, Includes: Ref. 1-5, see Figs. 6-88 - 6-118, replaces 199317A2and 199317A3, if used

1шт.

87420798R

REMAN-TRANSMISSION

Reman, transmission, powershift Does Not Include Torque Converter

1шт.

87420798C

CORE-TRANSMISSION

Return Part Number

1шт.

1

291590A1

DRIVE ASSY.

KIT drive plate assembly, Includes: Refs. 2-5

1шт.

2

NSS

NOT SOLD SEPARAT

PLATE face

2шт.

3

217558A1

FLANGE

BUSHING plate

1шт.

4

92-11038

LOCK WASHER,3/8"

6шт.

5

14-68

BOLT,Hex, 3/8" - 24 x 1/2", Gr 5

hex, 3/8 NF x 1/2 inch, replaces P/N 314-610 5/8 inch long bolt used on some models

6шт.

6

217563A1

SCREW

Used With Ref 2 (Not Shown)

8шт.
