(6-114) - CLARK POWERSHIFT TRANSMISSION ASSEMBLY, CONTROL VALVE ASSEMBLY

Запчасти Case 580SL (6-114) - CLARK POWERSHIFT TRANSMISSION ASSEMBLY, CONTROL VALVE ASSEMBLY (06) - POWER TRAIN

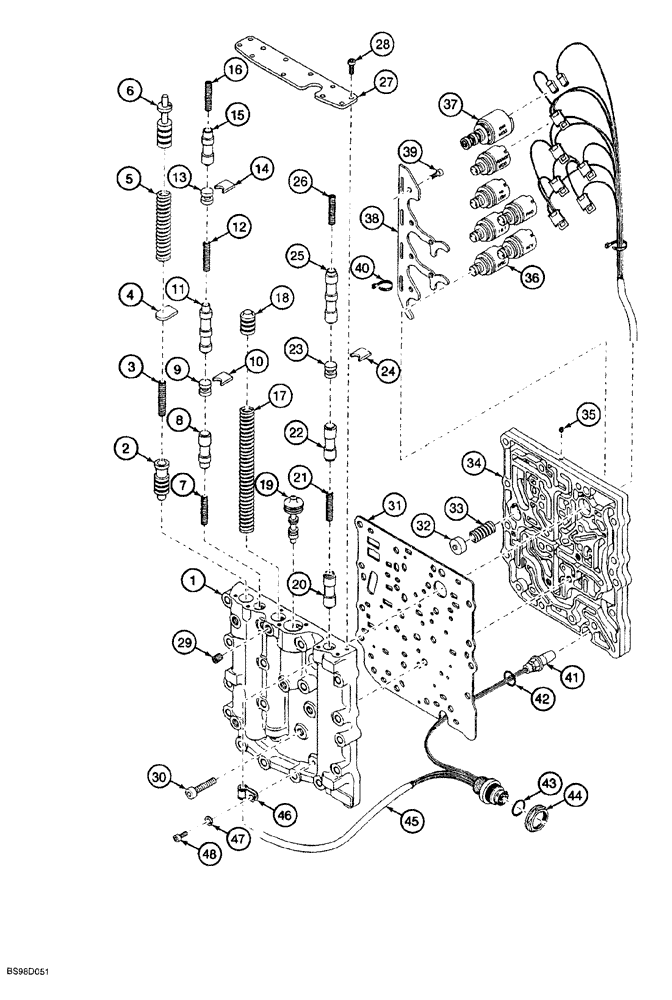

Схема запчастей Case 580SL - (6-114) - CLARK POWERSHIFT TRANSMISSION ASSEMBLY, CONTROL VALVE ASSEMBLY (06) - POWER TRAIN
37
11
26
47
32
48
44
4
13
34
36
20
25
8
33
12
41
5
38
27
28
45
16
29
2
9
22
35
43
21
10
3
42
19
30
31
24
15
40
7
6
23
14
46
1
18
39
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

199317A4

GEARBOX ASSY

TRANSMISSION, four wheel drive, powershift, used with chassis mounted differential lock solenoid valve, Includes: Ref. 1-48 and P/N 291576A1, see Figs. 6-88 - 6-118, replaces 199317A2and 199317A3, if used

1шт.

87420798R

REMAN-TRANSMISSION

Reman, transmission, powershift, Does Not Include Torque Converter

1шт.

87420798C

CORE-TRANSMISSION

Return Part Number

1шт.

291576A1

CONTROL BLOCK

VALVE ASSEMBLY, transmission control, Includes: Refs. 1-48

1шт.

1

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL valve

1шт.

3

NSS

NOT SOLD SEPARAT

SPRING valve

1шт.

4

NSS

NOT SOLD SEPARAT

PLATE spring

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING detent

1шт.

6

NSS

NOT SOLD SEPARAT

SPOOL valve

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING valve

1шт.

8

NSS

NOT SOLD SEPARAT

SPOOL valve

1шт.

9

NSS

NOT SOLD SEPARAT

STOP spool

1шт.

10

NSS

NOT SOLD SEPARAT

PLATE intermediate

1шт.

11

NSS

NOT SOLD SEPARAT

SPOOL valve

1шт.

12

NSS

NOT SOLD SEPARAT

SPRING valve

1шт.

13

NSS

NOT SOLD SEPARAT

STOP spool

1шт.

14

NSS

NOT SOLD SEPARAT

PLATE intermediate

1шт.

15

NSS

NOT SOLD SEPARAT

SPOOL valve

1шт.

16

NSS

NOT SOLD SEPARAT

SPRING valve

1шт.

17

NSS

NOT SOLD SEPARAT

SPRING valve

1шт.

18

NSS

NOT SOLD SEPARAT

SPOOL valve

1шт.

19

NSS

NOT SOLD SEPARAT

SPOOL valve

1шт.

20

NSS

NOT SOLD SEPARAT

SPOOL valve

1шт.

21

NSS

NOT SOLD SEPARAT

SPRING valve

1шт.

22

NSS

NOT SOLD SEPARAT

SPOOL valve

1шт.

23

NSS

NOT SOLD SEPARAT

STOP spool

1шт.

24

NSS

NOT SOLD SEPARAT

PLATE intermediate

1шт.

25

NSS

NOT SOLD SEPARAT

SPOOL valve

1шт.

26

NSS

NOT SOLD SEPARAT

SPRING valve

1шт.

27

NSS

NOT SOLD SEPARAT

COVER valve

1шт.

28

864-5012

HEX SOC SCREW,M5 x 12mm, Cl 8.8

11шт.

29

366663A1

PLUG

valve check port

4шт.

30

864-8030

HEX SOC SCREW,M8 x 30mm, Cl 8.8

3шт.

31

NSS

NOT SOLD SEPARAT

PLATE valve

1шт.

32

292176A1

VALVE POPPET

SPOOL bypass valve

1шт.

33

292177A1

SPRING

SPRING bypass valve

1шт.

34

NSS

NOT SOLD SEPARAT

PLATE valve

1шт.

35

319597A1

PLUG

valve

6шт.

36

291862A1

SOLENOID

valve

6шт.

199317A4

GEARBOX ASSY

TRANSMISSION, four wheel drive, powershift, used with chassis mounted differential lock solenoid valve, parts list Figs. 6-88 - 6-118, replaces 199317A2and 199317A3, if used

1шт.

291576A1

CONTROL BLOCK

VALVE ASSEMBLY, transmission control, continued from previous figure

1шт.

37

291861A1

SOLENOID

MODULE

1шт.

38

NSS

NOT SOLD SEPARAT

BAIL valve

1шт.

39

864-5012

HEX SOC SCREW,M5 x 12mm, Cl 8.8

6шт.

40

319598A1

STRAP

tie

6шт.

41

362141A1

SENSOR

speed, replaces 291858A1

1шт.

42

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

Replaces P/N 238-5018 O-ring that was used with P/N 291858A1 speed sensor

1шт.

43

238-9213

O-RING,-212, Cl 9, .921" ID x .139" Thk

1шт.

44

NSS

NOT SOLD SEPARAT

NUT retaining

1шт.

45

291863A1

HARNESS

valve, includes 362141A1 speed sensor, P/N's 238-5018 and 238-9213 O-rings

1шт.

46

319599A1

CLAMP

valve

1шт.

47

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

1шт.

48

864-5010

HEX SOC SCREW,M5 x 10mm, Cl 8.8

1шт.
