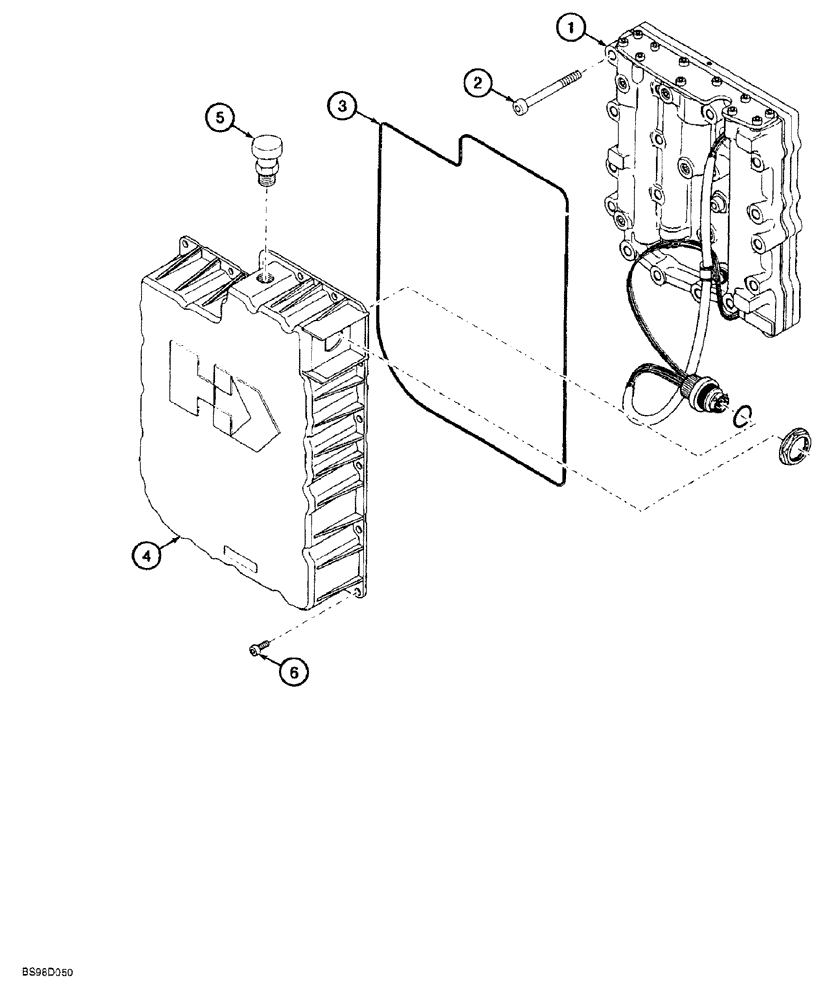

Запчасти Case 580SL (6-112) - CLARK POWERSHIFT TRANSMISSION ASSEMBLY, CONTROL VALVE MOUNTING AND SEALING (06) - POWER TRAIN

199317A4

GEARBOX ASSY

TRANSMISSION, four wheel drive, powershift, used with chassis mounted differential lock solenoid valve, Includes: Ref. 1-6, see Figs. 6-88 - 6-118, replaces 199317A2and 199317A3, if used

1шт.

87420798R

REMAN-TRANSMISSION

Reman, transmission, powershift Does Not Include Torque Converter

1шт.

87420798C

CORE-TRANSMISSION

Return Part Number

1шт.

1

291576A1

CONTROL BLOCK

VALVE ASSEMBLY, transmission control, parts list Fig. 6-114

1шт.

2

864-8065

HEX SOC SCREW,M8 x 65mm, Cl 8.8

BOLT hex socket, 8 - 1.25 x 65 mm

17шт.

3

291545A1

SEAL

control valve cover

1шт.

4

291577A1

HOUSING

control valve, Includes: Ref. 5

1шт.

5

L33264

BREATHER

housing

1шт.

6

864-6012

HEX SOC SCREW,M6 x 12mm, Cl 8.8

20шт.
