(6-110) - CLARK POWERSHIFT TRANSMISSION ASSEMBLY, CLUTCH AND PINIONS, OUTPUT SHAFT

Запчасти Case 580SL (6-110) - CLARK POWERSHIFT TRANSMISSION ASSEMBLY, CLUTCH AND PINIONS, OUTPUT SHAFT (06) - POWER TRAIN

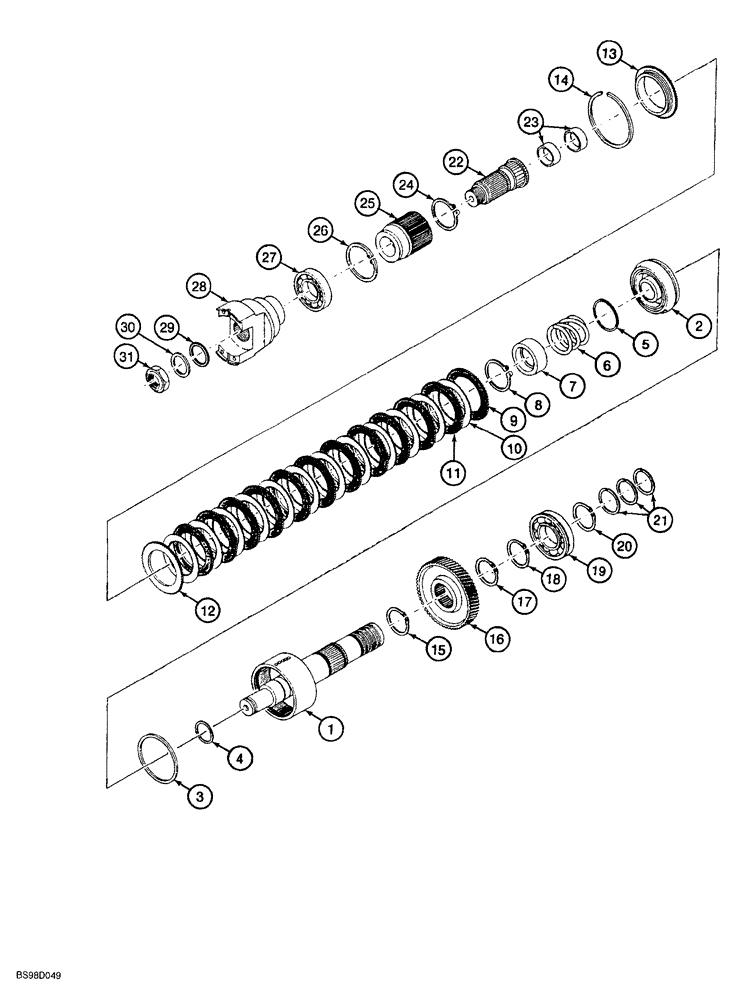

Схема запчастей Case 580SL - (6-110) - CLARK POWERSHIFT TRANSMISSION ASSEMBLY, CLUTCH AND PINIONS, OUTPUT SHAFT (06) - POWER TRAIN
19
3
15
25
10
28
13
20
11
21
8
30
23
7
4
26
16
17
31
5
27
9
18
12
14
29
6
1
2
24
22
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

199317A4

GEARBOX ASSY

TRANSMISSION, four wheel drive, powershift, used with chassis mounted differential lock solenoid valve, Includes: Ref. 1-31, see Figs. 6-88 - 6-118, replaces 199317A2and 199317A3, if used

1шт.

87420798R

REMAN-TRANSMISSION

Reman, transmission, powershift Does Not Include Torque Converter

1шт.

87420798C

CORE-TRANSMISSION

Return Part Number

1шт.

1

291562A1

ASSEMBLY

SHAFT drum, front output, rear assembly, P/N 199317A2 transmission

1шт.

1

305729A1

SHAFT

drum, front output, rear assembly, P/N's 199317A3 and 199317A4 transmission

1шт.

2

291520A1

PISTON

clutch, Includes: Refs. 3 & 4

1шт.

3

E114385

SEAL,123.49mm ID x 133.17mm OD x 9.68mm Thk

RING piston

1шт.

4

E114386

SEAL,50.98mm ID x 58.03mm OD x 3.3mm Thk

piston

1шт.

5

291529A1

RING

RING wear

1шт.

6

291531A1

SPRING

return

1шт.

7

291530A1

RETAINER

SEAT spring

1шт.

8

100-11196

SNAP RING,#196, Ext

1шт.

9

291578A1

DISC

friction, external

1шт.

10

291580A1

DISC

friction, internal

12шт.

11

291579A1

DISC

friction, external

11шт.

12

291578A1

DISC

friction, external

1шт.

13

291571A1

DISC

PLATE backing, clutch

1шт.

14

292415A1

RING, SNAP

RING SNAP RING retaining

1шт.

15

800-1165

SNAP RING,M65, Ext

RING external retaining, No. 65

1шт.

16

291554A1

PINION

GEAR lower output, 39 teeth

1шт.

17

800-1165

SNAP RING,M65, Ext

RING external retaining, No. 65

1шт.

18

800-1160

SNAP RING,M60, External

1шт.

19

292434A1

BALL BEARING,60mm ID x 110mm OD x 22mm W

ball

1шт.

20

800-1160

SNAP RING,M60, External

1шт.

21

291540A1

SEALING RING

SEALRING RING seal

3шт.

22

291575A1

PINION

SHAFT front output, front assembly, Includes: Ref. 23

1шт.

23

292175A1

BUSHING

shaft

2шт.

24

800-5160

SNAP RING,M60, Ext

RING external heavy retaining, No. 60

1шт.

25

291559A1

PINION

HUB disconnect

1шт.

26

800-21100

SNAP RING,Int, M100 x 3

1шт.

27

292424A1

BALL BEARING

ball

1шт.

28

291524A1

SHIN

FLANGE output yoke

1шт.

29

238-5336

O-RING,0.21" Thk x 2.85" ID, -336, Cl 5, 75 Duro

1шт.

30

S89696

WASHER

special

1шт.

31

S89695

NUT

hex, 1-1/4 inch- 12 NF

1шт.
