(6-108) - CLARK POWERSHIFT TRANSMISSION ASSEMBLY, CLUTCH AND PINIONS, SECOND GEAR

Запчасти Case 580SL (6-108) - CLARK POWERSHIFT TRANSMISSION ASSEMBLY, CLUTCH AND PINIONS, SECOND GEAR (06) - POWER TRAIN

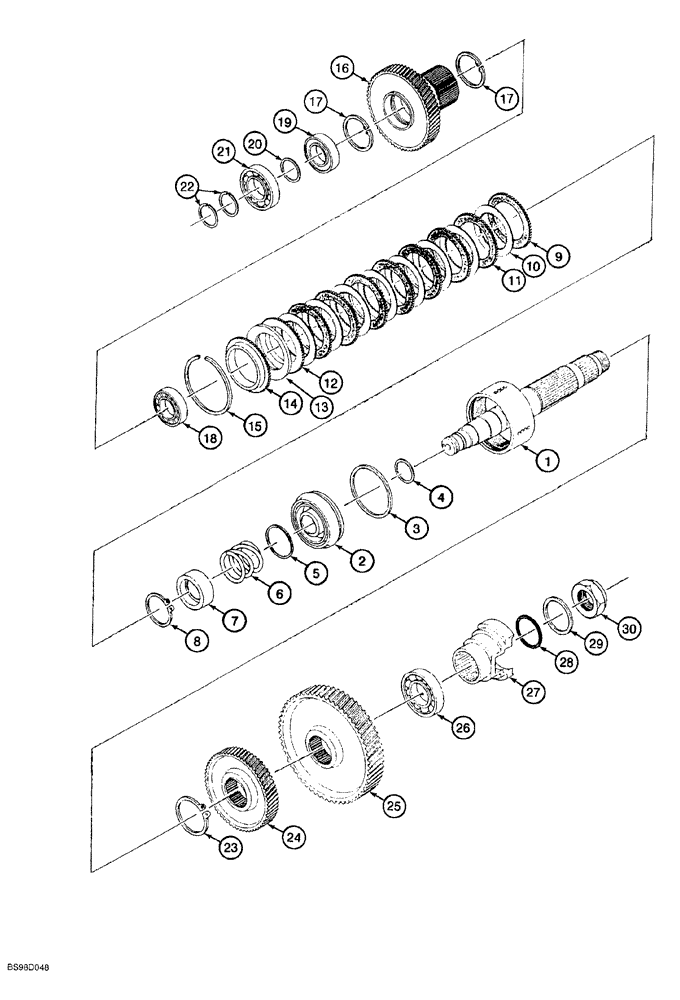

Схема запчастей Case 580SL - (6-108) - CLARK POWERSHIFT TRANSMISSION ASSEMBLY, CLUTCH AND PINIONS, SECOND GEAR (06) - POWER TRAIN
24
13
3
9
5
19
27
28
8
18
4
17
25
29
10
23
30
26
14
12
22
1
11
16
6
2
15
7
21
17
20
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

199317A4

GEARBOX ASSY

TRANSMISSION, four wheel drive, powershift, used with chassis mounted differential lock solenoid valve, Includes: Ref. 1-30, see Figs. 6-88 - 6-118, replaces 199317A2and 199317A3, if used

1шт.

87420798R

REMAN-TRANSMISSION

Reman, transmission, powershift. Does Not Include Torque Converter

1шт.

87420798C

CORE-TRANSMISSION

Return Part Number

1шт.

1

291561A1

ASSEMBLY

SHAFT drum, second clutch, P/N 199317A2 transmission

1шт.

1

305728A1

SHAFT

drum, second clutch, P/N's 199317A3 or 199317A4 transmission

1шт.

2

291520A1

PISTON

clutch, Includes: Refs. 3 & 4

1шт.

3

E114385

SEAL,123.49mm ID x 133.17mm OD x 9.68mm Thk

RING piston

1шт.

4

E114386

SEAL,50.98mm ID x 58.03mm OD x 3.3mm Thk

piston

1шт.

5

291529A1

RING

RING wear

1шт.

6

291531A1

SPRING

return, piston

1шт.

7

291530A1

RETAINER

SEAT spring

1шт.

8

100-11196

SNAP RING,#196, Ext

1шт.

9

291578A1

DISC

friction, external

1шт.

10

291580A1

DISC

friction, internal

8шт.

11

291579A1

DISC

friction, external

7шт.

12

291578A1

DISC

friction, external

1шт.

13

291533A1

WASHER

SPACER disc

1шт.

14

291571A1

DISC

PLATE backing, clutch

1шт.

15

292415A1

RING, SNAP

RING SNAP RING retaining

1шт.

16

291555A1

PINION

GEAR second clutch, 52 teeth

1шт.

17

800-2175

SNAP RING,M75, Int

internal retaining, No. 75

2шт.

18

292425A1

BALL BEARING,45mm ID x 75mm OD x 16mm W

ball

1шт.

19

292428A1

BALL BEARING,45mm ID x 75mm OD x 16mm W

ball

1шт.

20

291541A1

WASHER

RING bearing support

1шт.

21

292423A1

BALL BEARING,40mm ID x 90mm OD x 23mm W

ball

1шт.

22

291528A1

SEALING RING

SEALRING RING seal

2шт.

23

800-5160

SNAP RING,M60, Ext

RING external heavy retaining, No. 60

1шт.

24

291550A1

PINION

GEAR drive, lower output, 41 teeth

1шт.

25

291553A1

PINION

GEAR upper output, 59 teeth

1шт.

26

292433A1

BALL BEARING

ball

1шт.

27

291524A1

SHIN

FLANGE output yoke

1шт.

28

238-5336

O-RING,0.21" Thk x 2.85" ID, -336, Cl 5, 75 Duro

1шт.

29

S89696

WASHER

special

1шт.

30

S89695

NUT

hex, 1-1/4 inch - 12 NF

1шт.
