(6-102) - CLARK POWERSHIFT TRANSMISSION ASSEMBLY, CLUTCH AND PINIONS, FIRST GEAR, REVERSE DRIVE

Запчасти Case 580SL (6-102) - CLARK POWERSHIFT TRANSMISSION ASSEMBLY, CLUTCH AND PINIONS, FIRST GEAR, REVERSE DRIVE (06) - POWER TRAIN

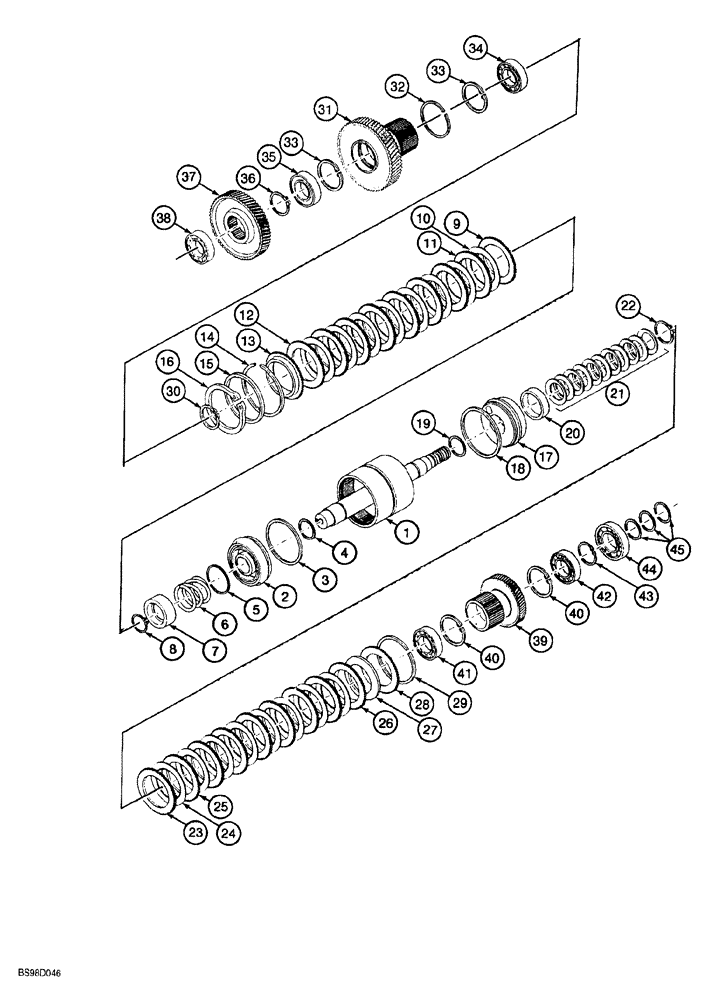

Схема запчастей Case 580SL - (6-102) - CLARK POWERSHIFT TRANSMISSION ASSEMBLY, CLUTCH AND PINIONS, FIRST GEAR, REVERSE DRIVE (06) - POWER TRAIN
20
28
12
34
44
16
232
22
35
27
3
41
43
11
7
15
8
30
24
36
17
14
5
42
33
21
33
2
40
40
25
26
45
39
32
9
1
18
4
38
37
6
10
13
29
31
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

199317A4

GEARBOX ASSY

TRANSMISSION, four wheel drive, powershift, used with chassis mounted differential lock solenoid valve, Includes: Ref. 1-45, see Figs. 6-88 - 6-118, replaces 199317A2and 199317A3, if used

1шт.

87420798R

REMAN-TRANSMISSION

Reman, transmission, powershift, Does Not Include Torque Converter

1шт.

87420798C

CORE-TRANSMISSION

Return Part Number

1шт.

1

291560A1

ASSEMBLY

SHAFT drum, reverse/first, no longer available, order P/N's 305726A1 shaft, 305727A1 shaft and 305730A1, wear ring

1шт.

305726A1

SHAFT

drum, forward low/high

1шт.

305727A1

SHAFT

drum, reverse/first

1шт.

305730A1

PLATE

RING wear, clutch piston

1шт.

2

291520A1

PISTON

clutch, Includes: Refs. 3 & 4

1шт.

3

E114385

SEAL,123.49mm ID x 133.17mm OD x 9.68mm Thk

RING piston

1шт.

4

E114386

SEAL,50.98mm ID x 58.03mm OD x 3.3mm Thk

piston

1шт.

5

291529A1

RING

RING wear

1шт.

6

291531A1

SPRING

return, piston

1шт.

7

291530A1

RETAINER

SEAT spring

1шт.

8

100-11196

SNAP RING,#196, Ext

1шт.

9

291578A1

DISC

friction, external

1шт.

10

291580A1

DISC

friction, internal

8шт.

11

291579A1

DISC

friction, external

7шт.

12

291578A1

DISC

friction, external

1шт.

13

291566A1

DISC

PLATE backing, clutch

1шт.

14

292415A1

RING, SNAP

RING SNAP RING retaining

1шт.

15

291567A1

SPACER

clutch disc backing plate

1шт.

16

800-11115

SNAP RING,M115, Ext

Retaining

1шт.

17

291520A1

PISTON

clutch, Includes: Refs. 18 & 19

1шт.

18

E114385

SEAL,123.49mm ID x 133.17mm OD x 9.68mm Thk

RING piston

1шт.

19

E114386

SEAL,50.98mm ID x 58.03mm OD x 3.3mm Thk

piston

1шт.

20

291526A1

SPACER

RING wear, clutch piston, P/N 199317A2 transmission

1шт.

20

305730A1

PLATE

RING wear, clutch piston, P/N's 199317A3 or 199317A4 transmission

1шт.

21

291591A1

KIT

KIT Belleville spring, piston return

1шт.

22

100-11196

SNAP RING,#196, Ext

1шт.

23

291578A1

DISC

friction, external

1шт.

24

291580A1

DISC

friction, internal

8шт.

25

291579A1

DISC

friction, external

7шт.

26

291578A1

DISC

friction, external

1шт.

27

291533A1

WASHER

SPACER clutch

1шт.

28

291571A1

DISC

PLATE backing, clutch disc

1шт.

29

292415A1

RING, SNAP

RING SNAP RING retaining

1шт.

30

800-1150

SNAP RING,M50, Ext

RING external retaining, No. 50

1шт.

31

291558A1

PINION

GEAR, 54 teeth, forward reverse clutch

1шт.

32

291573A1

CIRCLIP

RING retaining

1шт.

33

800-2180

SNAP RING,M80, Int

Retaining

2шт.

199317A4

GEARBOX ASSY

TRANSMISSION, four wheel drive, powershift, used with chassis mounted differential lock solenoid valve, parts list Figs. 6-88 - 6-118, replaces 199317A2 and 199317A3, if used

1шт.

34

292426A1

BALL BEARING

ball

1шт.

35

292431A1

BALL BEARING

ball

1шт.

36

800-1150

SNAP RING,M50, Ext

RING external retaining, No. 50

1шт.

37

291552A1

PINION

GEAR reverse driven, 50 teeth

1шт.

38

292432A1

BALL BEARING

ball

1шт.

39

291557A1

PINION

GEAR first clutch, 30 teeth

1шт.

40

800-2175

SNAP RING,M75, Int

internal retaining, No. 75

2шт.

41

292425A1

BALL BEARING,45mm ID x 75mm OD x 16mm W

ball

1шт.

42

292428A1

BALL BEARING,45mm ID x 75mm OD x 16mm W

ball

1шт.

43

800-1145

SNAP RING,M45, Ext

Retaining

1шт.

44

292423A1

BALL BEARING,40mm ID x 90mm OD x 23mm W

ball

1шт.

45

291528A1

SEALING RING

SEALRING RING seal

3шт.
