Запчасти Case 580SL (1-016) - PICTORIAL INDEX HYDRAULICS LOADER CLAM CYLINDER (00) - PICTORIAL INDEX

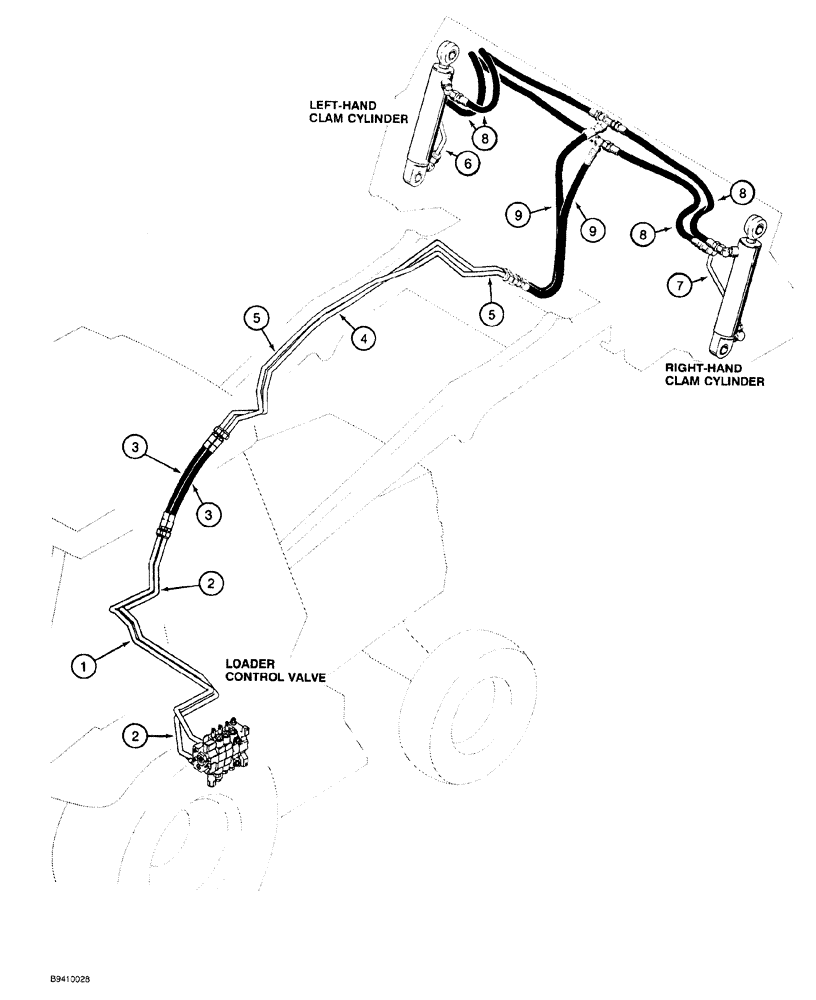

Схема запчастей Case 580SL - (1-016) - PICTORIAL INDEX HYDRAULICS LOADER CLAM CYLINDER (00) - PICTORIAL INDEX
5
2
8
9
5
6
8
8
7
9
2
4
1
3
3

Артикул

Название

Примечание

Количество

1

Tube at upper port auxiliary section of loader control valve to hose at loader arm pivot, see Figure 8-016

1шт.

2

Tube at lower port auxiliary section of loader control valve to hose at loader arm pivot, see Figure 8-016

1шт.

3

Hose at loader arm pviot, see Figure 8-016

1шт.

4

Lower tube on loader lift frame, see Figure 8-016

1шт.

5

Upper tube on loader lift frame, see Figure 8-016

1шт.

6

Tube at left-hand clam cylinder, see Figure 8-018

1шт.

7

Tube at right-hand clam cylinder, see Figure 8-018

1шт.

8

Right-hand and left-hand clam cylinder hoses, see Figure 8-018

1шт.

9

Lift arm hoses, see Figure 8-018

1шт.

Выбрано товаров: 9
