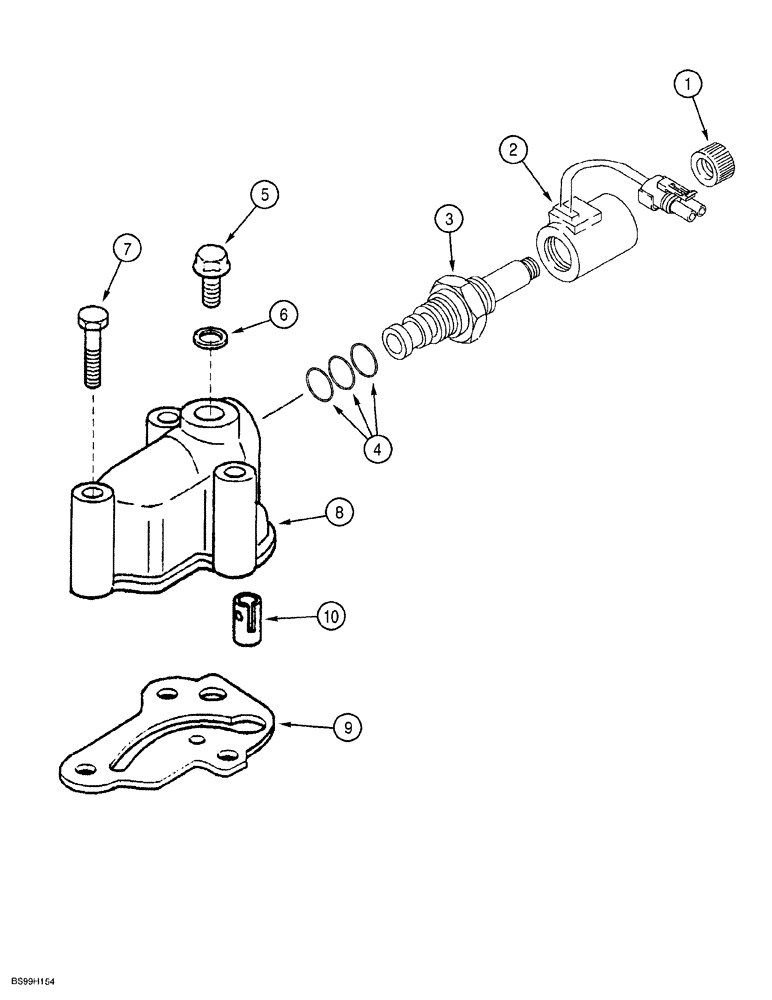

Запчасти Case 580SL (6-086) - CARRARO TRANSMISSION ASSY, SOLENOID VALVE, 4 WHEEL DRIVE, MODELS WITHOUT POWERSHIFT TRANSMISSION (06) - POWER TRAIN

329079A3

TRANSMISSION

ASSEMBLY, four wheel drive, new, with integrated differential lock solenoid valve, parts list Figs. 6-62 - 6-86, Includes: Refs. 1-10; Replaces 329079A1, 329079A2

1шт.

329079A3R

REMAN-TRANSMISSION

Remanufactured Transmission

1шт.

329079A3C

CORE-TRANSMISSION

Return Part Number

1шт.

190432A1

SOLENOID

VALVE ASSEMBLY, Includes: Refs. 1-4

1шт.

1

NSS

NOT SOLD SEPARAT

NUT cap

1шт.

2

NSS

NOT SOLD SEPARAT

COIL solenoid

1шт.

3

NSS

NOT SOLD SEPARAT

VALVE solenoid

1шт.

4

181149A1

SEAL PACKAGE

KIT, solenoid, includes (1 each) P/N's 238-5014, 238-5015 and 237-6010 O-ring, not available for service, order P/N 190432A1

1шт.

5

181100A1

PLUG,1/8 CAS x 8

valve

1шт.

6

934667R1

SEALING RING,M10 x 14 x 1

Special

1шт.

7

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

3шт.

8

321428A1

HOUSING

BODY solenoid valve

1шт.

9

366910A1

GASKET

GASKET, body to transmission housing

1шт.

10

190431A1

VALVE

solenoid, installed between Ref. 8 and Ref. 9

1шт.
