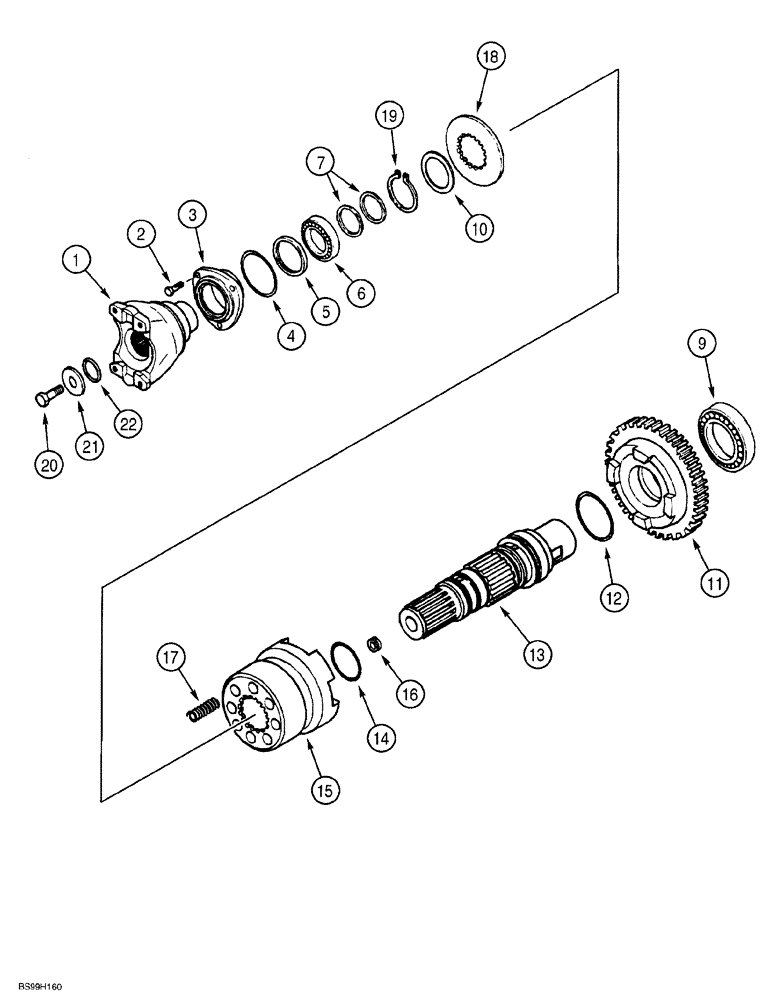

Запчасти Case 580SL (6-080) - CARRARO TRANSMISSION ASSEMBLY, 4 WHEEL DRIVE OUTPUT SHAFT, MODELS WITHOUT POWERSHIFT TRANSMISSION (06) - POWER TRAIN

329079A3

TRANSMISSION

ASSEMBLY, four wheel drive, new, with integrated differential lock solenoid valve, parts list Figs. 6-62 - 6-86, Includes: Refs. 1-22; Replaces 329079A1, 329079A2

1шт.

329079A3R

REMAN-TRANSMISSION

Remanufactured Transmission

1шт.

329079A3C

CORE-TRANSMISSION

Return Part Number

1шт.

1

233283A1

YOKE

YOKE shaft, front

1шт.

2

614-8022

BOLT,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

3шт.

3

181198A1

COVER

front

1шт.

4

112517A1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

cover

1шт.

5

181122A1

OIL SEAL,50mm ID x 65mm OD x 8mm Thk

50 x 65 x 8 mm

1шт.

6

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

1шт.

7

358645A1

SEALING RING

2шт.

9

181126A1

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

1шт.

10

P2745478

WASHER

spacer

1шт.

11

366234A1

PINION,36T

GEAR driven, MFD, 36 teeth

1шт.

12

366235A1

O-RING

shaft, large

1шт.

13

366230A1

SHAFT

output

1шт.

14

366236A1

O-RING,3.53mm Thk x 42.85mm ID

shaft, small

2шт.

15

366232A1

TRANSMISSION SLEEVE

shaft

1шт.

16

D142898

PLUG,M10 x 1

shaft, 10 x 1 mm

1шт.

17

100753A1

SPRING,Compression, 15mm OD x 41.2mm L

sleeve

8шт.

18

366231A1

WASHER

flat, special

1шт.

19

800-5145

SNAP RING,M45, Ext

Heavy, retaining

1шт.

20

P3533055

SCREW,M12 x 1.25 x 25mm

locking, special, 12 - 1.25 x 25 mm

1шт.

21

P2745466

WASHER

flat, special

1шт.

22

238-8217

O-RING,0.139" Thk x 1.171" ID, -217, Cl 8, 90 Duro

Seal

1шт.
