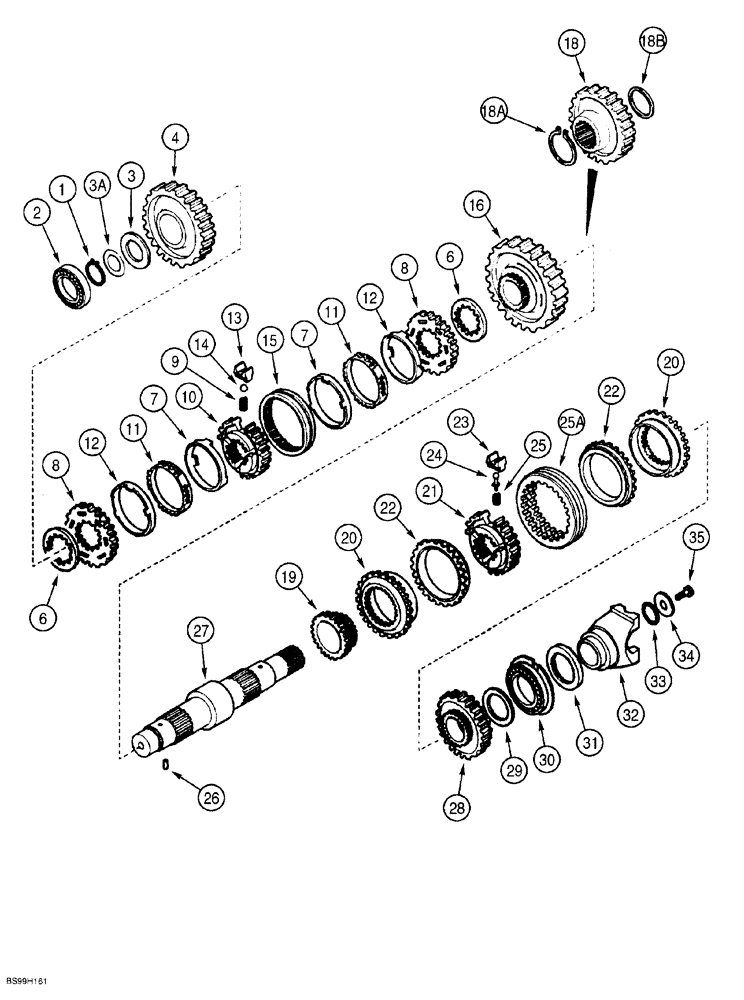

Запчасти Case 580SL (6-076) - CARRARO TRANSMISSION ASSEMBLY, SECONDARY SHAFT, 2 OR 4 WHEEL DRIVE MODELS WITHOUT POWERSHAFT TRANS. (06) - POWER TRAIN

329076A1

TRANSMISSION

ASSEMBLY, two wheel drive, new, with integrated differential lock solenoid valve, parts list Figs. 6-62 - 6-84, Includes: Refs. 1-35

1шт.

329079A3

TRANSMISSION

ASSEMBLY, four wheel drive, new, with integrated differential lock solenoid valve, parts list Figs. 6-62-6-86, Includes: Refs. 1-35; Replaces 329079A1, 329079A2

1шт.

329079A3R

REMAN-TRANSMISSION

Remanufactured Transmission

1шт.

329079A3C

CORE-TRANSMISSION

Return Part Number

1шт.

1

181118A1

RING, LOCKING,36.5mm ID x 1.75mm Thk

RING, LOCK

1шт.

2

181132A1

ROLLER BEARING,40mm ID x 80mm OD x 18mm W

roller

1шт.

3

358649A1

THRUST WASHER

thrust

1шт.

3a

358650A1

SHIM,0.05mm Thk

0.05 mm

1шт.

3a

358651A1

SHIM,0.1mm Thk

0.10 mm

1шт.

3a

358652A1

SHIM,0.3mm Thk

0.30 mm

1шт.

3a

196454A1

SHIM,0.5mm Thk

0.50 mm thick

1шт.

4

358648A1

PINION,43T

GEAR driven, second, 43 teeth

1шт.

6

244109A1

SPACER

gear to synchronizer ring

4шт.

190427A1

SYNCHRONIZER,90T

KIT service, component parts not serviced separately, Includes: Refs. 7-15

1шт.

7

NSS

NOT SOLD SEPARAT

RING friction

2шт.

8

NSS

NOT SOLD SEPARAT

RING synchronizer

2шт.

9

384773A1

COIL SPRING

SPRING hub

3шт.

10

NSS

NOT SOLD SEPARAT

HUB synchronizer

1шт.

11

NSS

NOT SOLD SEPARAT

RING synchronizer

2шт.

12

NSS

NOT SOLD SEPARAT

RING steel

2шт.

13

326865A1

SPACER

Spring

3шт.

14

384769A1

BALL

hub

3шт.

15

NSS

NOT SOLD SEPARAT

SLEEVE hub

1шт.

16

358647A1

PINION,49T

GEAR driven, first, 49 teeth

1шт.

18

358656A1

GEAR,44T

drive, MFD, four wheel drive

1шт.

18a

358654A1

RING, SNAP,65.5mm ID, Ext

RING SNAP four wheel drive

1шт.

18b

358655A1

RING, SNAP,67.4mm ID, Ext

RING SNAP retaining, four wheel drive

1шт.

19

358282A1

GEAR,23T

driven, fourth, 23 teeth

1шт.

366398A1

SYNCHRONIZER

KIT service, component parts not serviced separately, Includes: Refs. 20-25A

1шт.

20

NSS

NOT SOLD SEPARAT

RING clutch

2шт.

21

NSS

NOT SOLD SEPARAT

HUB synchronizer

1шт.

22

NSS

NOT SOLD SEPARAT

RING friction

2шт.

23

NSS

NOT SOLD SEPARAT

PLATEspring

3шт.

24

NSS

NOT SOLD SEPARAT

PIN hub

3шт.

25

NSS

NOT SOLD SEPARAT

SPRING hub

3шт.

25a

NSS

NOT SOLD SEPARAT

SLEEVE hub

1шт.

26

181108A1

SPLIT PIN,3mm OD x 8mm L

roll

1шт.

27

366366A1

SHAFT

secondary, two wheel drive

1шт.

27

358653A1

SHAFT

secondary, four wheel drive

1шт.

28

358283A1

DRIVEN GEAR,33T

Third, 33 teeth

1шт.

29

358639A1

WASHER

thrust, 68 x 45 x 4 mm

1шт.

30

181130A1

BEARING, BALL,45 mm ID x 106.5 mm OD x 25 mm

1шт.

31

181123A1

OIL SEAL,60mm ID x 75mm OD x 8mm Thk

60 x 75 x 8 mm

1шт.

32

233284A1

YOKE

Shaft, rear

1шт.

33

181144A1

O-RING,39.6mm ID x 3.53mm Width

flange sealing

1шт.

34

181165A1

WASHER,12.5mm ID x 52mm OD x 5mm Thk

flat, special, 52 x 1.25 x 5 mm

1шт.

35

P3533055

SCREW,M12 x 1.25 x 25mm

locking, special, 12 - 1.25 x 25 mm

1шт.
