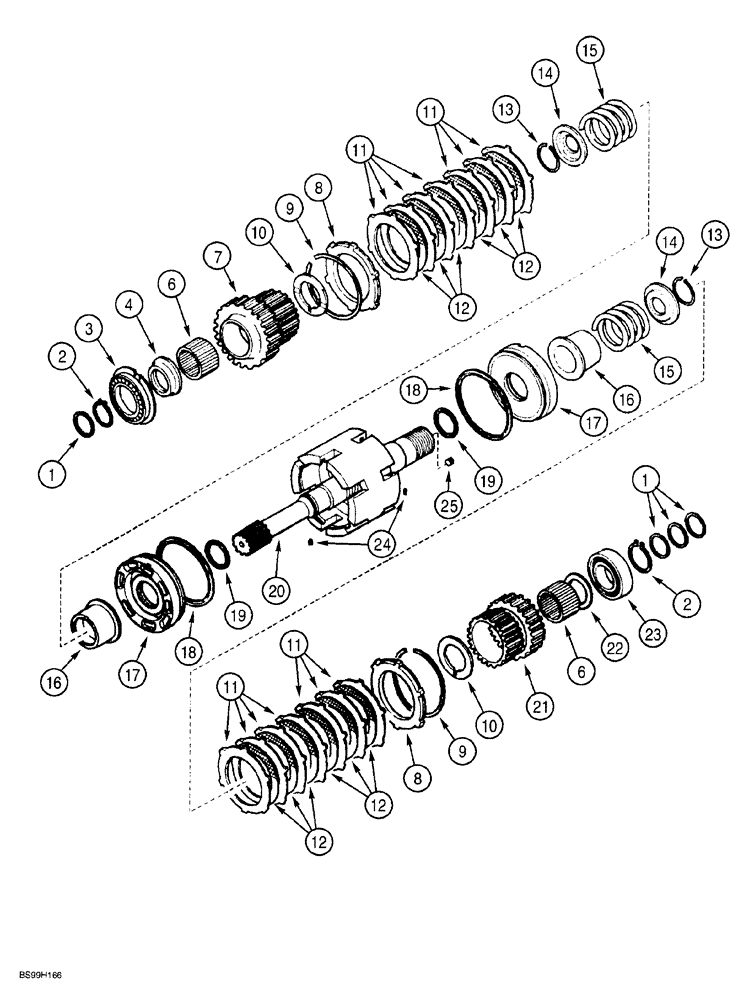

Запчасти Case 580SL (6-074) - CARRARO TRANSMISSION ASSY, INPUT SHAFT, 2 OR 4 WHEEL DRIVE, MODELS WITHOUT POWERSHIFT TRANSMISSION (06) - POWER TRAIN

329076A1

TRANSMISSION

ASSEMBLY, two wheel drive, new, with integrated differential lock solenoid valve, parts list Figs. 6-62 - 6-84, Includes: Refs. 1-25

1шт.

329079A3

TRANSMISSION

ASSEMBLY, four wheel drive, new, with integrated differential lock solenoid valve, parts list Figs. 6-62 - 6-86, Includes: Refs. 1-25; Replaces 329079A1, 329079A2

1шт.

329079A3R

REMAN-TRANSMISSION

Remanufactured Transmission

1шт.

329079A3C

CORE-TRANSMISSION

Return Part Number

1шт.

1

358645A1

SEALING RING

4шт.

2

A48041

CIRCLIP,41.5mm ID x 2.5mm Thk

RING snap

2шт.

3

181128A1

BEARING, BALL,45mm ID x 85mm OD x 19mm W

1шт.

4

358635A1

SPACER

68 x 45 x 105 mm, bearing

1шт.

6

358633A1

BEARING, NEEDLE,50mm ID x 58mm OD x 25mm W

2шт.

7

358632A1

PINION,35T

GEAR input shaft, 35 teeth

1шт.

8

310519A1

PLATE

thrust, 62 mm thick tabs

2шт.

9

181116A1

RING, LOCKING,146.6mm ID x 2.5mm Thk

RING, LOCK

2шт.

10

358640A1

WASHER

2шт.

11

181159A1

DISC

PLATE disc, intermediate

14шт.

12

181158A1

CLUTCH DISC

CLUTCH DISK PLATE

12шт.

13

181111A1

RING, LOCKING,47.8mm ID x 1.5mm Thk

RING, LOCK snap

2шт.

14

181161A1

PLATE, THRUST

pressure

2шт.

15

358637A1

SPRING

detent

2шт.

16

358641A1

TRANSMISSION SLEEVE

clutch

2шт.

17

358644A1

PISTON

shaft

2шт.

18

358643A1

SEALING RING,126.83mm ID x 137mm OD x 3.25mm Thk

SEALRING seal

2шт.

19

358642A1

SEALING RING

SEALRING small

2шт.

20

358631A1

SHAFT

input

1шт.

21

358638A1

PINION,39T

GEAR shaft, 29 teeth

1шт.

22

358639A1

WASHER

thrust, 68 x 45 x 4 mm

1шт.

23

181126A1

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

1шт.

24

181108A1

SPLIT PIN,3mm OD x 8mm L

roll

2шт.

25

D142898

PLUG,M10 x 1

shaft

2шт.
