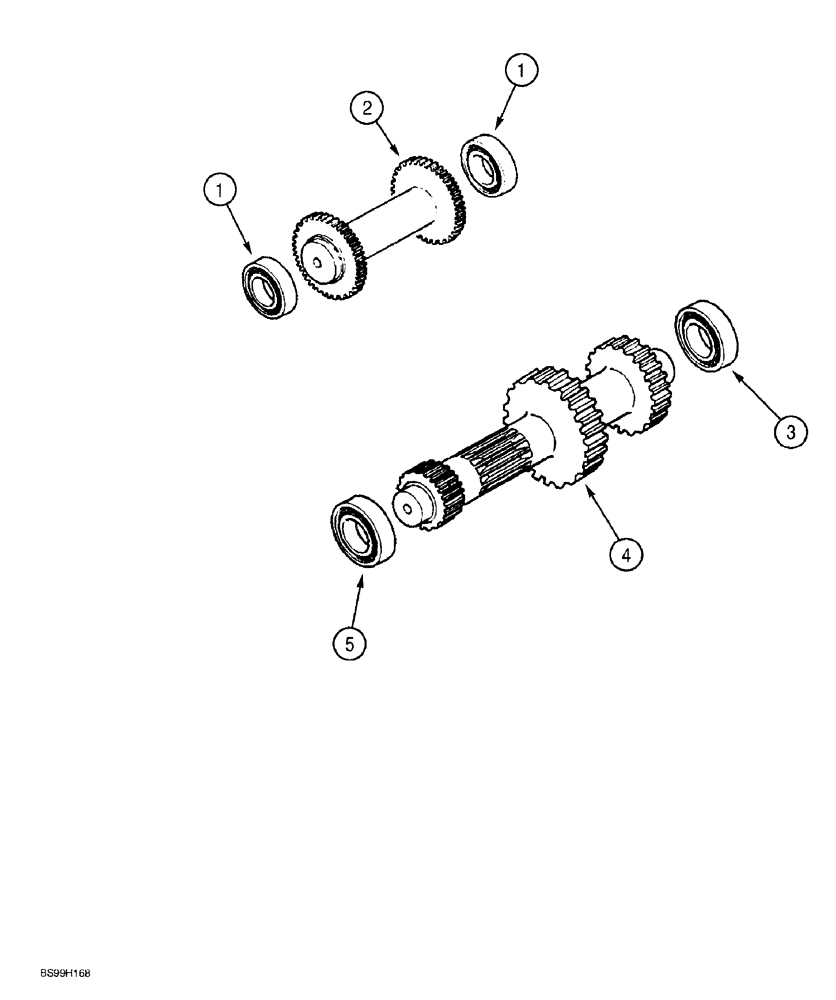

Запчасти Case 580SL (6-072) - CARRARO TRANSM ASSY, IDLER & PRIMARY SHAFT, 2 OR 4 WHEEL DRIVE, MODELS W/OUT POWERSHIFT TRANSMISSION (06) - POWER TRAIN

329076A1

TRANSMISSION

ASSEMBLY, two wheel drive, new, with integrated differential lock solenoid valve, parts list Figs. 6-62 - 6-84

1шт.

329079A3

TRANSMISSION

ASSEMBLY, four wheel drive, new, with integrated differential lock solenoid valve, parts list Figs. 6-62 - 6-86; Replaces 329079A1, 329079A2

1шт.

329079A3R

REMAN-TRANSMISSION

Remanufactured Transmission

1шт.

329079A3C

CORE-TRANSMISSION

Return Part Number

1шт.

1

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

2шт.

2

358636A1

SHAFT,27T

idler

1шт.

3

181126A1

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

1шт.

4

358646A1

SHAFT

primary

1шт.

5

181132A1

ROLLER BEARING,40mm ID x 80mm OD x 18mm W

roller

1шт.

6

A48041

CIRCLIP,41.5mm ID x 2.5mm Thk

RING snap

1шт.
