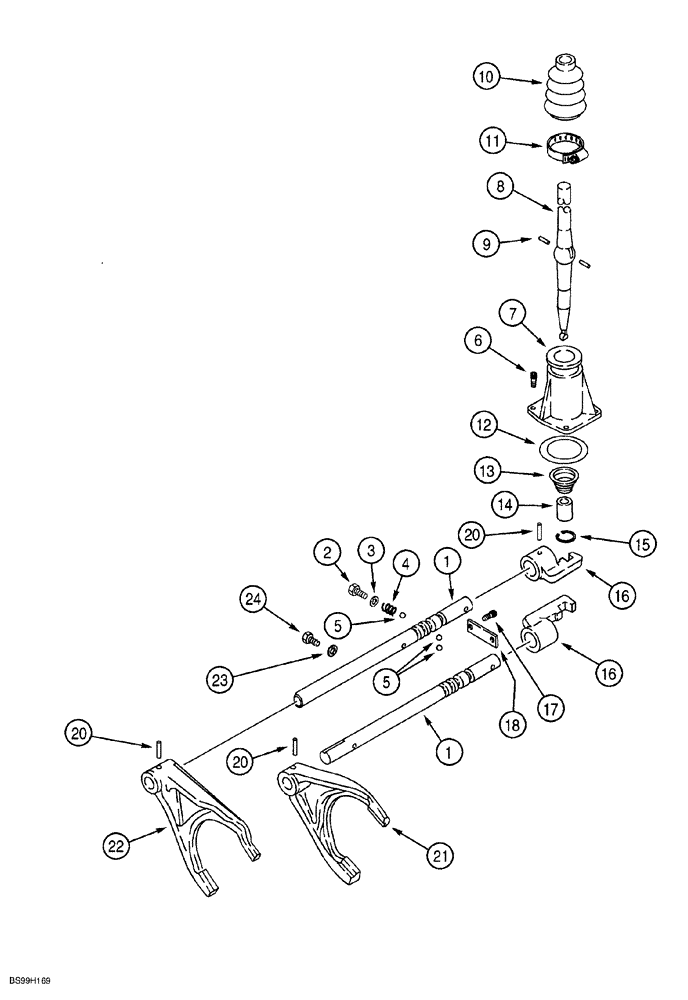

Запчасти Case 580SL (6-070) - CARRARO TRANS ASSEMBLY, TRANS SHIFTER MECH, 2 OR 4 WHEEL DRIVR, MODELS W/OUT POWERSHIFT TRANSMISSION (06) - POWER TRAIN

329076A1

TRANSMISSION

ASSEMBLY, two wheel drive, new, with integrated differential lock solenoid valve, parts list Figs. 6-62 - 6-84, Includes: Refs. 1-24

1шт.

329079A3

TRANSMISSION

ASSEMBLY, four wheel drive, new, with integrated differential lock solenoid valve, parts list Figs. 6-62 - 6-86, Includes: Refs. 1-24; Replaces 329079A1, 329079A2

1шт.

329079A3R

REMAN-TRANSMISSION

Remanufactured Transmission

1шт.

329079A3C

CORE-TRANSMISSION

Return Part Number

1шт.

1

181245A2

SHIFT RAIL

Fork, First and second, third and fourth

2шт.

2

614-12016

BOLT,Hex, M12 x 1.75 x 16mm, Cl 8.8, Full Thd

2шт.

3

1966835C1

SEALING WASHER

flat, special, 12 x 16 x 1.5 mm

2шт.

4

1966993C1

SPRING

detent

2шт.

5

181139A1

BALL,10mm OD

detent

4шт.

6

864-8025

HEX SOC SCREW,M8 x 25mm, Cl 8.8

3шт.

7

181171A1

COVER

shift lever

1шт.

8

190428A3

LEVER

Shift

1шт.

9

1967585C1

PIN

shift lever

2шт.

10

1967581C1

BOOT

rubber

1шт.

11

181177A1

CLAMP

adjustable

1шт.

12

181138A1

O-RING,0.103" Thk x 2.362" ID, -142, Cl 5, 75 Duro

sealing

1шт.

13

278533A1

SPRING

shift lever

1шт.

14

278532A1

BUSHING

Shift lever

1шт.

15

279039A1

RING, SNAP

RING SNAP external retaining

1шт.

16

181173A1

SELECTOR

pump support, large, not available for service, order P/N 181199A4

2шт.

17

864-10025

HEX SOC SCREW,M10 x 25mm, Cl 8.8

BOLT hex socket, 10 - 1.5 x 25 mm

2шт.

18

181175A1

PLATE

Retainer, Detent ball

1шт.

20

905794R1

PIN,M6 x 30, Coiled

4шт.

21

181203A1

SHIFTER FORK

gear, first and second

1шт.

22

366909A1

SHIFTER FORK

gear, third and fourth

1шт.

23

181104A1

COPPER WASHER

sealing

1шт.

24

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.
